| size | 11” x 18” | 11” x 18” |
| Swing | 11" | 279.4 mm |
| Centers | 18" | 457.2 mm |
| Spindle Bore | 1.25" | 31.75 mm |
| RPM | 3,000 RPM | 3,000 RPM |
| Dimensions | 69” x 33” x 58” | 69” x 33” x 58” |
| Weight | 2,300 Lbs | 2,300 Lbs |

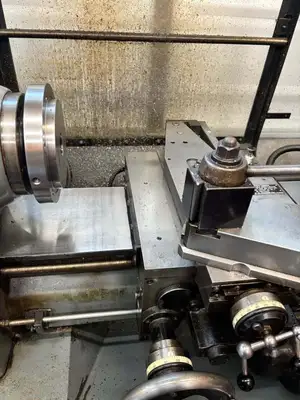

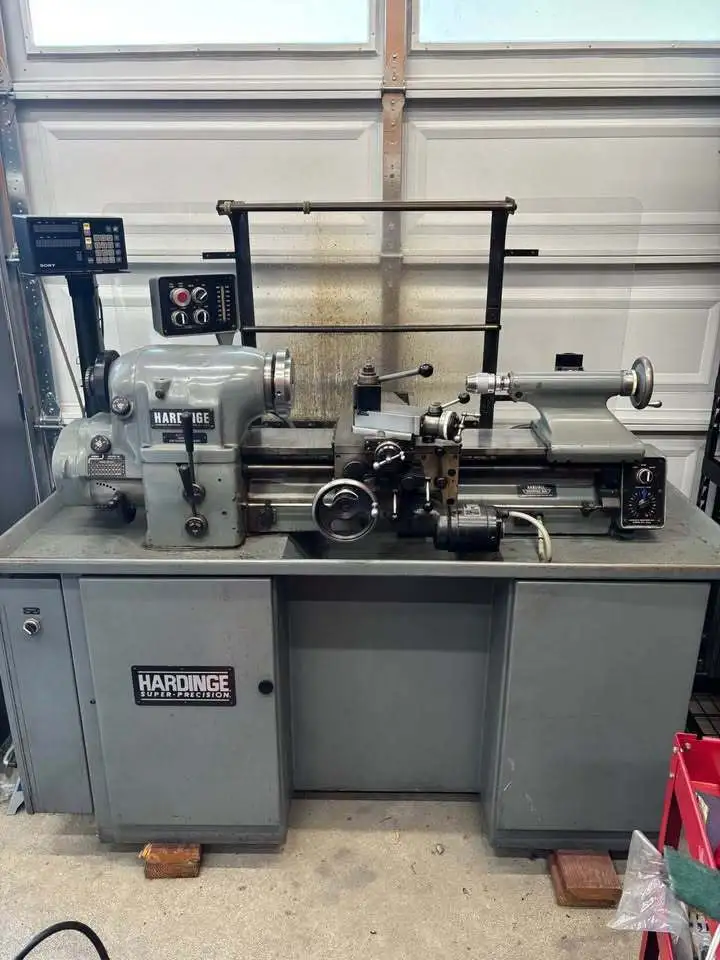

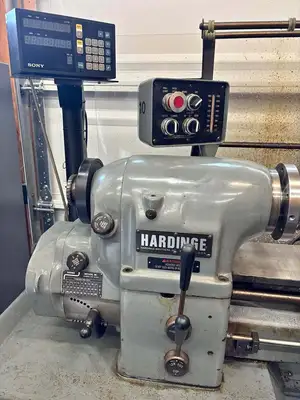

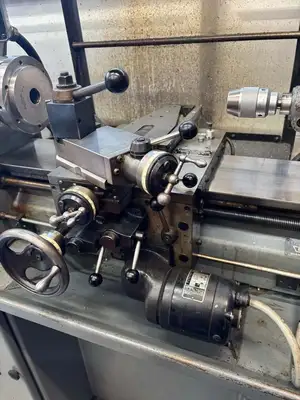

Hardinge HLV-H Tool Room Lathe
Swing Over Bed: 11″
Swing Over Carriage: 9″
Swing Over Cross Slide: 6″
Distance Between Centers: 18″
Spindle Taper: 5C
Hole Through Spindle: 1 1/4″
Spindle Nose: Hardinge Tapered
Spindle Speeds: 125 – 3,000 RPM, Variable
Compound Slide Travel: 3″
Range: 1/4″ – 7″ per min.

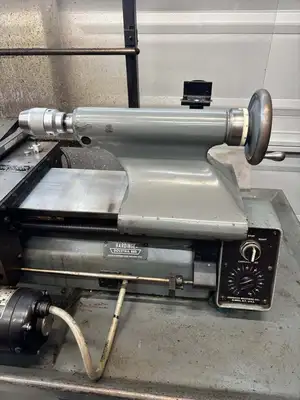

Tailstock: 2MT
Tailstock Diameter: 1 3/8″
Tailstock Travel: 3 3/4″
Threading: (27) - 11” - 108” TPI
Lead Screw Diameter: 1″ – 8″ Thread
Motor: 1 HP / 230v / 3ph
- Aloris tool post w/4 tool holders
- Assortment of tools
- Custom made to order 4 Jaw Buck Chuck (bought new from buck in 2023)

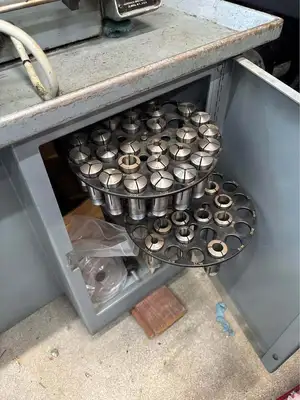

- Lots and lots of collects
- Have a 3 jaw Buck Chuck I modified for my other machine that can be purchased
This equipment has been sold. Similar equipment available now is shown below.
