350 ton x 14'

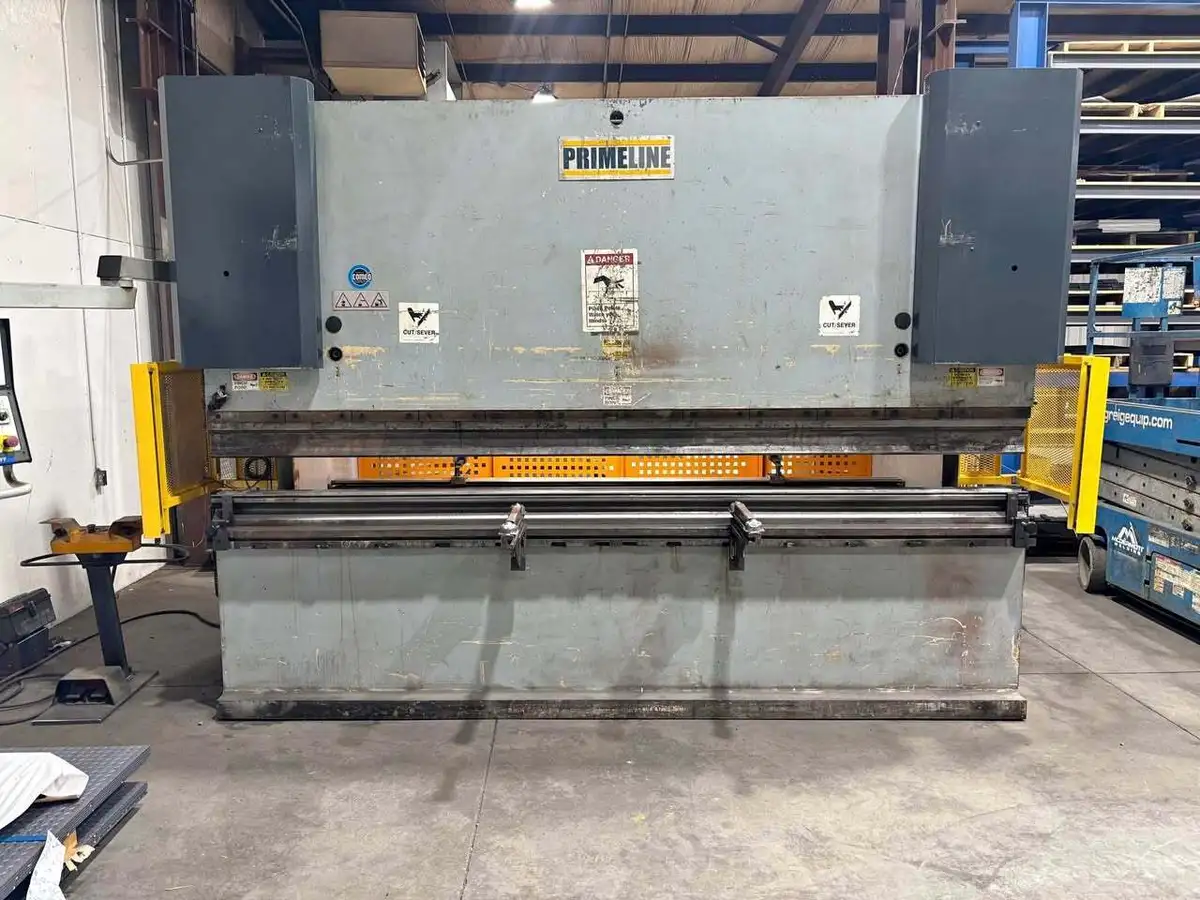

Baykal Primeline 350X14 Hydraulic Press Brake (2007)
Overall Capacity-350 Ton X 14′
Bending Length: 169″
Distance Between Columns: 148
Open Height: 20.2″
Stroke: 11.82″
Throat: 15.75″
Table Height: 36.63″
Back Gauge Speed
X Axis Speed: 23.63 In/sec
R Axis Speed: 14.18 In/sec
Back Gauge Stroke: 29.54″
Rapid Approach Speed: 3.175 In/sec
Pressing Speed: 0.47 In/sec
Return Speed: 5.67 In/sec
Main Power 40 HP
Hydraulic Tank Capacity: 79 Gallons
Electrics 220/440/3/60
Top punch and 4 way bottom die
