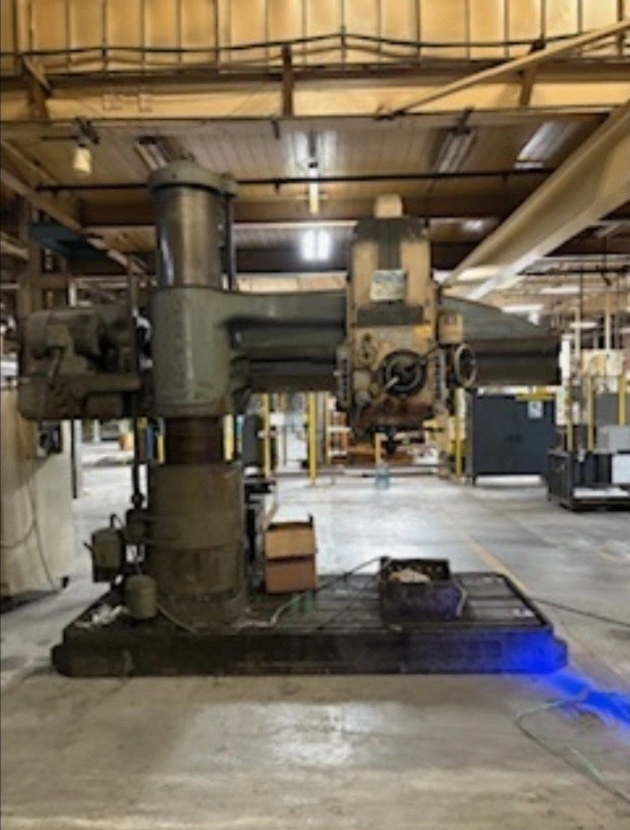

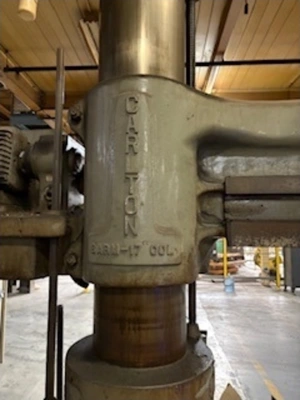

Carlton 6' x 17" Radial Arm Drill
Length of Arm: 6'
Face of Column to Center Spindle Max, Min: 6", 13 1/4"
Spindle Radius Max, Min: 7' 1 3/4", 27"
Working Surface of Base: 4' 2" x 6' 5"
Vertical Travel of Spindle in Head: 20"
Height over Head: 11' 8"
Spindle Diameter: 4"
Morse Taper in Spindle: #6
Traverse of Arm on Column: 37.5"
Traverse of Head on Arm: 58.75"
Swing of Arm: 102"
Number of Feeds and Tap Lead Changes 18
Feeds and Tap Leads .004" x .125"
Spindle Speeds (36) 10-1000
Main Motor Drive: : 15HP
Coolant Pump and Piping
Power Elevation
Power Head Traverse
Power Clamping On Head & Arm
