| Table-W | 16" | 406.4 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 40" | 1,016 mm |
| Travel-Cross | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | 40 | 40 |
| Dimensions | 129" x 78" | 129" x 78" |
| Weight | 7000 | 7000 |

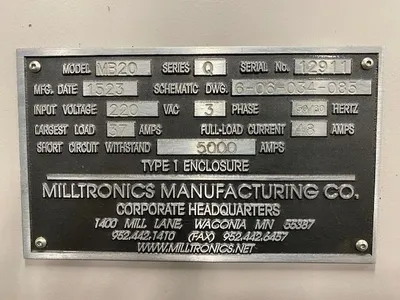

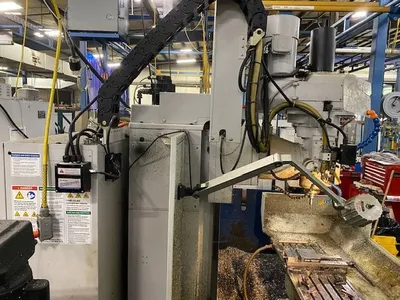

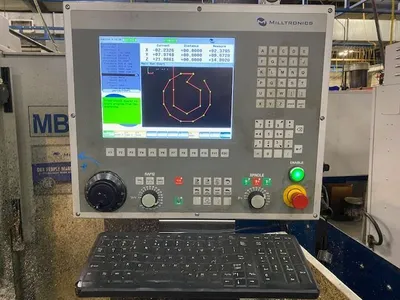

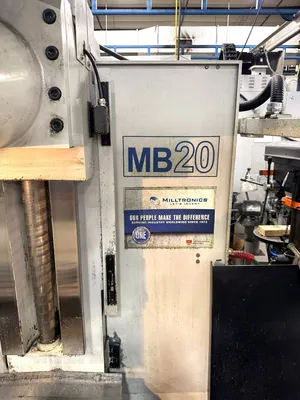

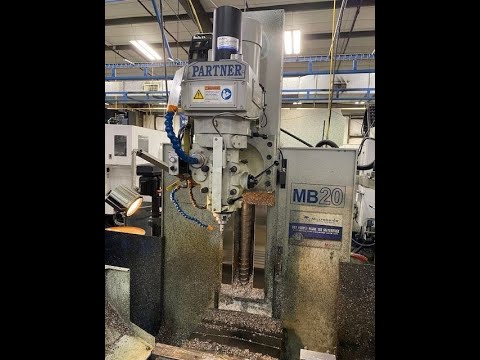

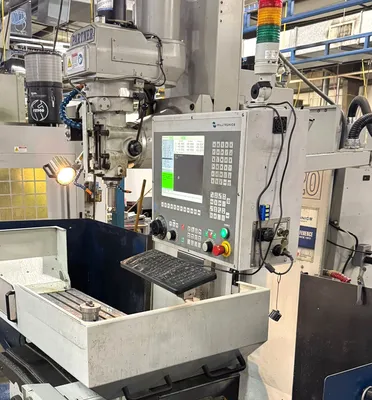

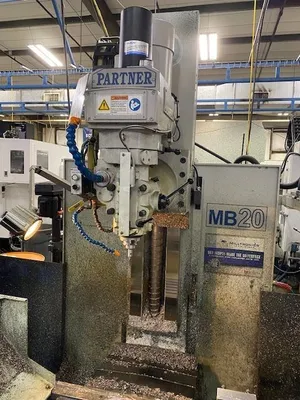

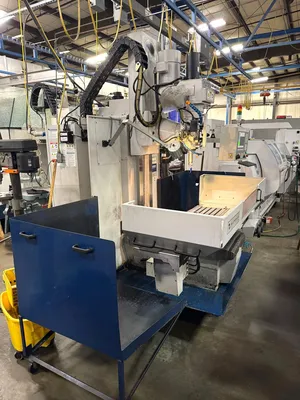

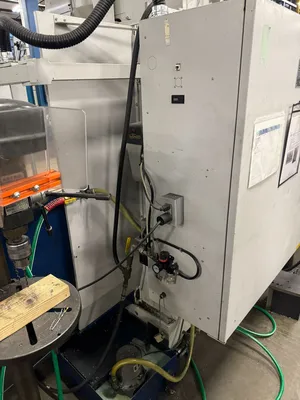

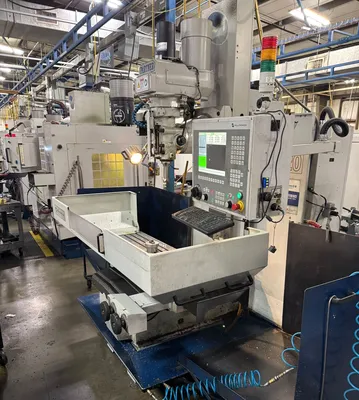

Milltronics Model Partner MB20 CNC Vertical Mill (2015)
Travel: X-Axis 40"
Y-Axis 20"
Z-Axis 24"
Quill Travel 6"
Table Size 54" x 16"
Spindle Speed 60 - 4500 RPM
Spindle Taper Cat 40
Spindle Nose to Table Top 3.75" - 27.75"
Spindle Motor 10 / 7.5 HP
Table Load Capacity 2500 lbs.
Tool Change Time (T - T) 7 Seconds
Rapid Traverse Rates (X & Y / Z) 500 / 300 IPM
Quill Diameter 4.125"
Max Tool Diameter 3.5"
Max Tool Length 11"
Max Tool Weight 15 lbs.
Machine Dimensions (L x W) 129" x 78"
Machine Weight 7000 lbs.

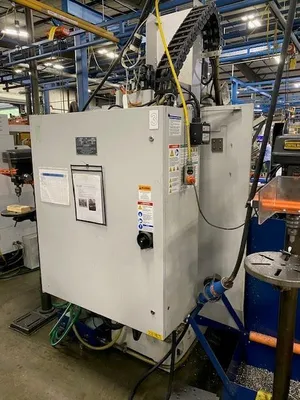

Electrics 220/3/60
Stainless Steel Y-Axis Way Covers
Heavy Duty Box Way Construction
