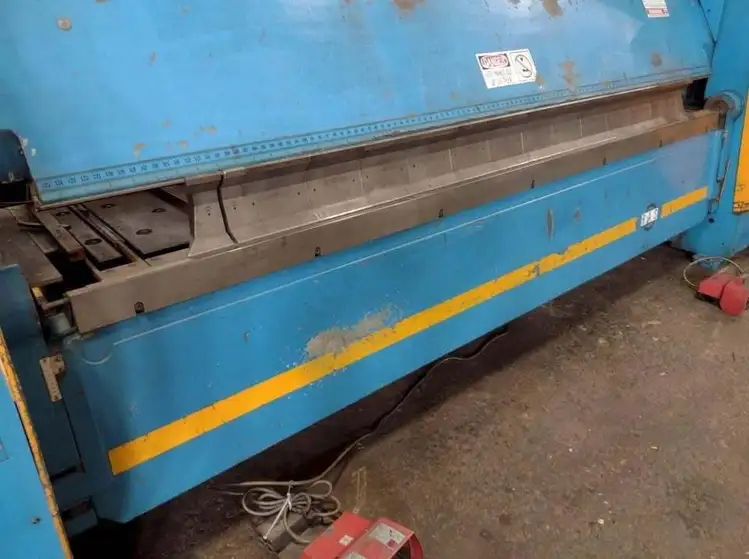

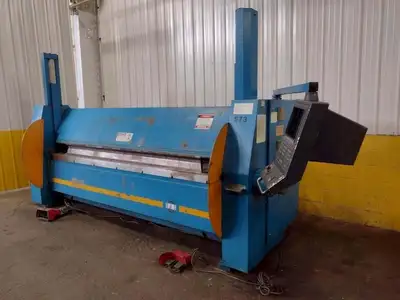

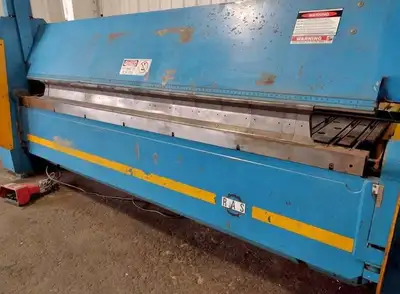

RAS 74.20 CNC Folding Machine

RAS MODEL 74.20 126" x 9 GAUGE CNC FOLDING & BENDING MACHINE

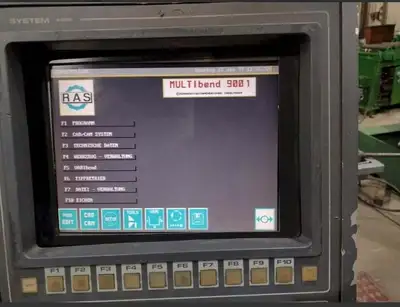

Model .................................. No. 74.30.MB (Multibend) 9001
Year ................................... 1999
Max. Forming Capacity at Full Length ... 9 Gauge (Mild Steel)
Max. Length of Forming ................. 126″
Min. Flange Height ..................... 6 x Gauge Clamping Beam Max.
Speed Up ............................... 3.60″/sec Clamping Beam Max.
Speed Down ............................. 1.57″/sec Max.
Folding Speed .......................... 74″/sec
Folding Angle Setting Range ............ 0-180 degrees
CNC Folding Beam Stroke ................ 3.15″
CNC Lower Beam Stroke .................. 3.15″
Clamping Beam Stroke ................... 15.75″
Back Gauge Positioning Accuracy ........ +/- .004″
Back Gauge Max. Positioning Time ....... 3 sec
Back Gauge Min. Position ............... .394″
Back Gauge Max. Position ............... 120″
Motor Drive Power ...................... 12 HP
