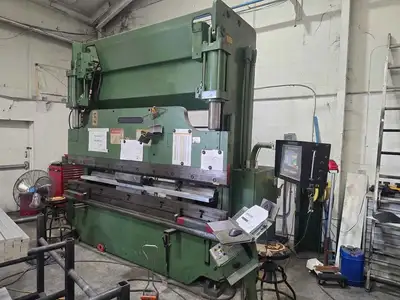

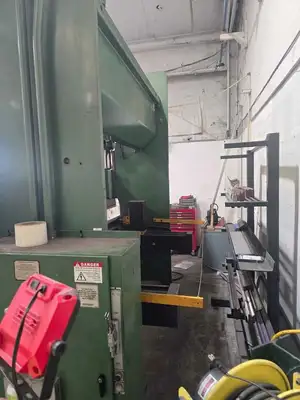

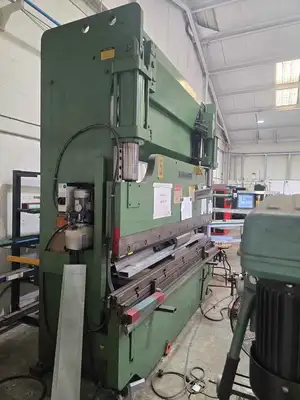

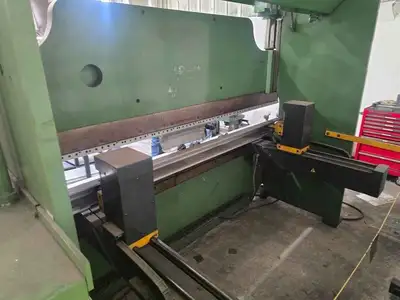

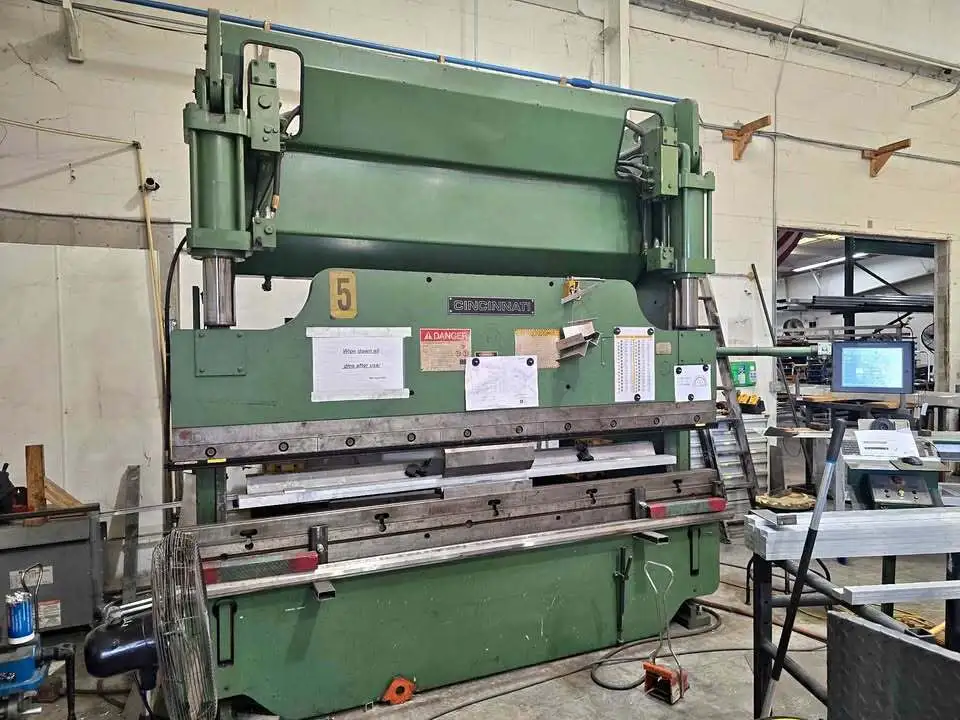

Cincinnati 90CBII 8 90 Ton Hydraulic Press Brake (1999)
Have one to sell?
ConditionUsed
1 available
90 Ton x 8, 10' Overall

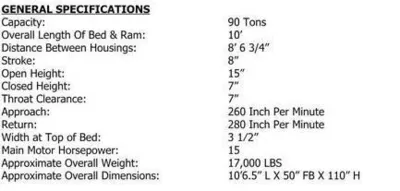

Cincinnati 90CBII 8 90 Ton Hydraulic Press Brake (1999)
Capacity 90 Ton
Overall Bending Length 10'
Distance Between Housings 8'6
Stroke 8"
Open Height 15"
Closed Height 7"
Throat Clearance 7"
Approach 260 IPM
Return 280 IPM
Width at Top of Bed 3 1/2"
Main Motor Horsepower 15
Approximate 17000 lbs
Approximate Overall Dimension 10'6 x 50" x 110" H
Hydraulic pump and cylinder rebuild in July 2025 and motor rebuilt in 2024.
Includes some free planar tooling (older but still usable).
-Wila hydraulic clamping on both top and bottom (American style)
-Full Touchscreen system added around 2015 with on-screen programming, 3D bend simulation, and part design.
240V to 480V transformer for $500
Wila and Wilson tooling in excellent condition available at extra cost
