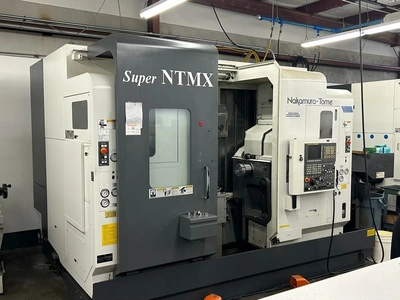

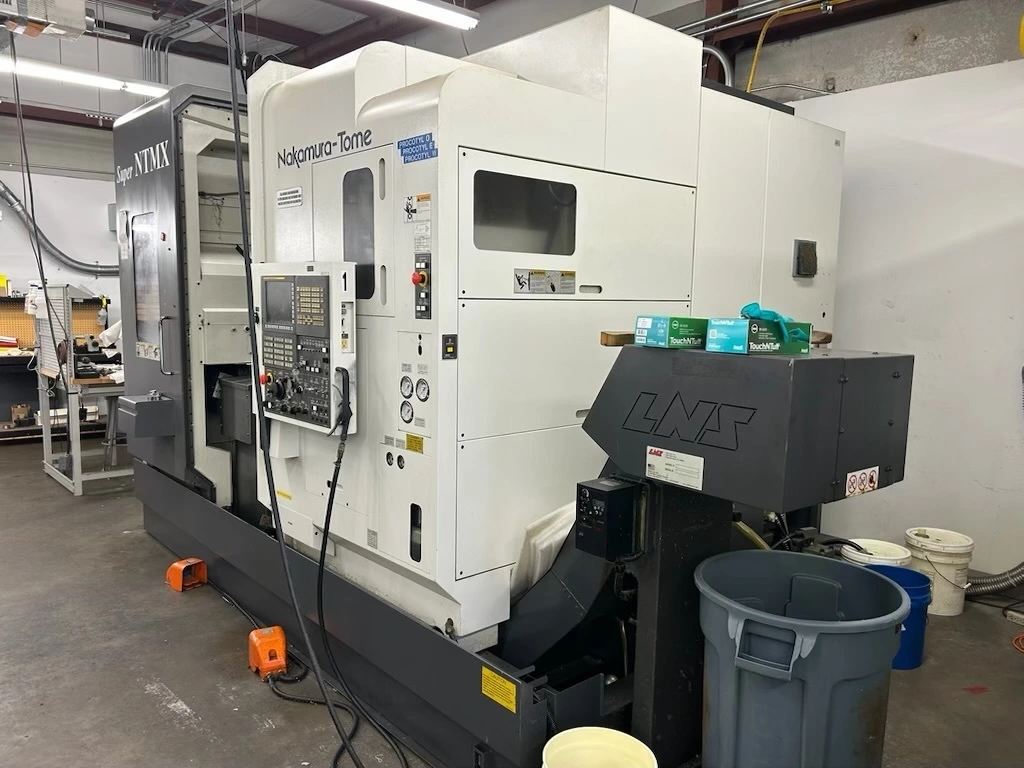

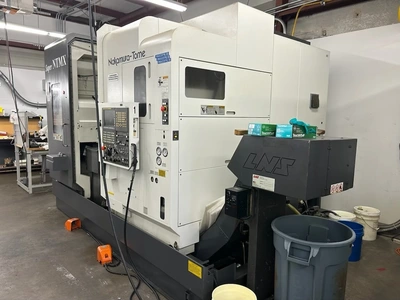

Nakamura-Tome Super NTMX Multi Axis CNC Lathe (2014)

Nakamura-Tome Super NTMX Multi Axis CNC Lathe (2014)

Max Turning Diameter: 7.87″
Max Swing Over Slide: 8.07″
Distance Between Centers: 38.58
Slide Travel ( X1/ X2 ): 22.44″/ 5.13″
Slide Travel ( Z1/ Z2 ): 51.10″/ 25.90″
Slide Travel- Y: 3.93″
Slide Travel B2: 30.31″
Milling Spindle Speed: 12,000 Rpm
Milling Spindle Motor: 10 Hp
Milling Spindle B-Axis Indexing Range: 190 Deg ( +/- 95 Deg )
Tool Changer ( Dual Arm ): 24 X 2 ( Upper Tool Spindle )
Turning Spindle Nose: A2-5
Bar Capacity ( Left Side ): 2.5″
Bar Capacity ( Right Side ): 2.0″
Chuck Size ( 3-Jaw Chuck ): 6″ ( Right Side )
Left Spindle Speed: 4,500 Rpm
Left Spindle Motor: 15 Hp
Right Spindle Speed: 5,000 Rpm
Right Spindle Motor: 15 Hp
Turret: 24 Station
Machine Dimensions: 166.29″ X 164.88″ X 104.33″
Machine Weight: 31,967 Lbs
