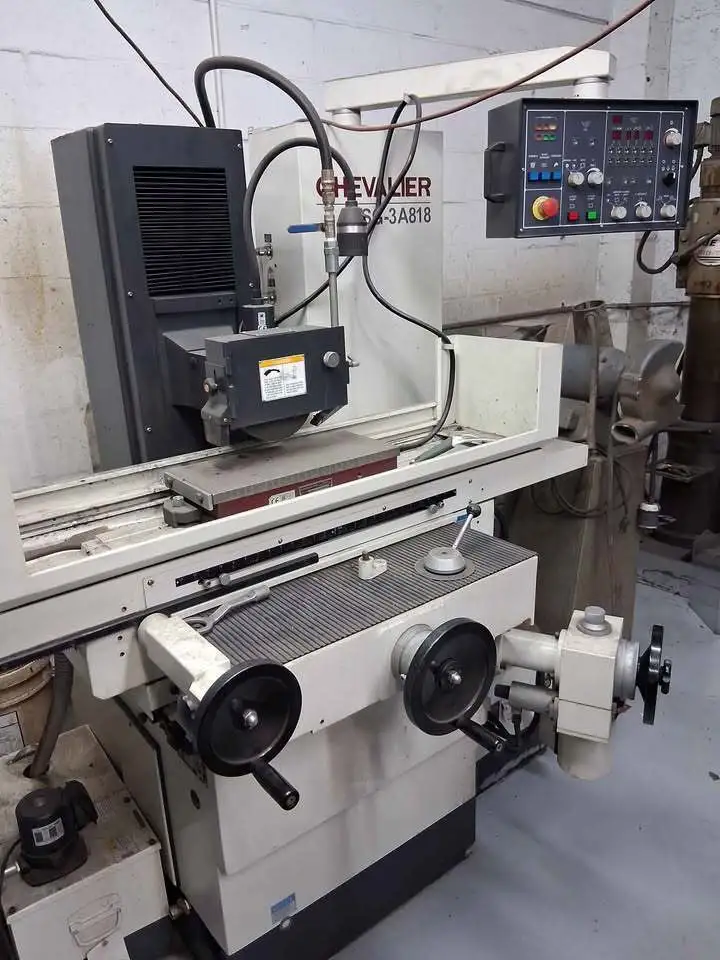

Chevalier FSG-3A818 3 Axis Hydraulic Surface Grinder (2022)
Have one to sell?
ConditionUsed
1 available
Only used 10 hours High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding. 3-Axis fully automatic with surface and plunge grinding cycles. Separate hydraulic system prevents vibration & reduces heat transference. Saddle travels on Turcite-B coated and hand scraped double V guideways. Meehanite® cast iron Wheel head rises up automatically and table parks at left or right side after cycle is completed

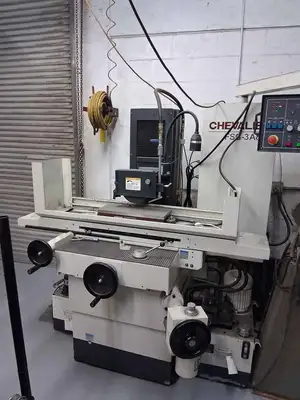

Chevalier FSG-3A818 3 Axis Hydraulic Surface Grinder (2022)
Grinding length: 18.0″
Grinding width: 8.0″
Distance table to centerline of wheel: 17.7″
Max. table load: 551 lbs
Table size: 8.0″ x 18.0″
Max. table travel: 20.9″
Table speed (varible): 16 ~ 82 fpm
Traverse movement (Z) Feed: 37 ipm
Auto traverse movement: 0.02″ ~ 0.24″
Max. manual travel: 9.4″
Spindle speed: 3,450 rpm (60 Hz)/ 2,850 rpm (50 Hz)
Spindle motor: 2 HP
Wheel dimension (OD x Width x Bore): 8” × 0.5” × 1.3”
Approx Machine dimensions (W x D x H): 88.6″ x 70.5″ x 74.8″
Approx weight: 2,910 lbs
