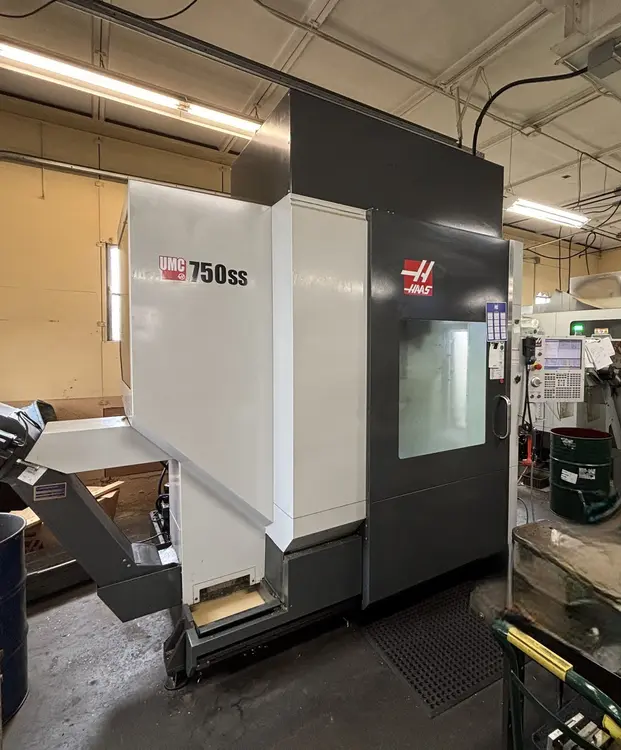

Haas UMC-750SS 5 Axis Universal Machining Center (2019)

Haas UMC-750SS 5 Axis Universal Machining Center (2019)

Specifications:
Platter Diameter........... 19.7"
Table Load Capacity........ 660 Lb
X-Axis Travel.............. 30"
Y-Axis Travel.............. 20"
Z-Axis Travel.............. 20"
B-Axis (Tilt) Travel....... +120 Degrees To -35 Degrees
C-Axis (Rotation) Travel... 360 Degrees

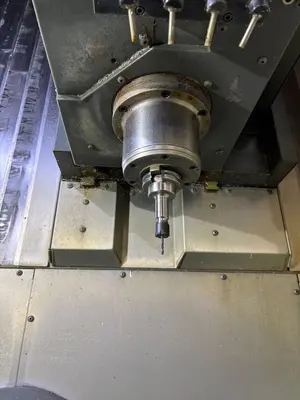

Spindle Speed.............. 15,000 Rpm
Spindle Motor.............. 30 Hp
Spindle Taper.............. Cat 40
Tool Capacity (Atc)........ 40
Rapid Traverse Rate........ 1200 Ipm
Cutting Feed Rate.......... 650 Ipm

B Axis - Tilt
Travel: 120° to 35-°
Max Speed: 170°/sec
Torque (Continuous): 2240 ft-lbf
Brake Torque: 2,000 ft-lbf

C Axis - Rotation
Travel: 360°
Max Speed: 179 °/sec
Torque (Continuous): 1854 ft-lbf
Brake Torque: 900 ft-lbf
Max Part Swing: 27 in

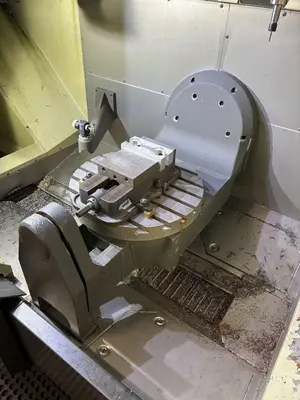

Platter
Platter Diameter: 19.70 in
Max Weight on Platter: 660 lb
T-Slot Width: .626 in to .630 in
Number of Std T-Slots: 7
T-Slot Center Distance: 2.48 in

FeedRates -
Max Cutting: 650 ipm
Rapids on X: 1200 ipm
Rapids on Y: 1200 ipm
Raipds on Z: 1200 ipm

Axis Motors -
Max Thrust X: 2750 lbf
Max Thrust Y: 2750 lbf
Max Thrust Z: 3400 lbf

Tool Changer -
Type: SMTC
Capacity: 30+1
Max Tool Diameter (full): 2.5 in
Max Tool Diameter (adjacent empty): 5 in
Max Tool Length (from gage line): 12 in
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 1.80 s
Chip-to-Chip (avg): 2.40 s

General -
Coolant Capacity: 55 gal
