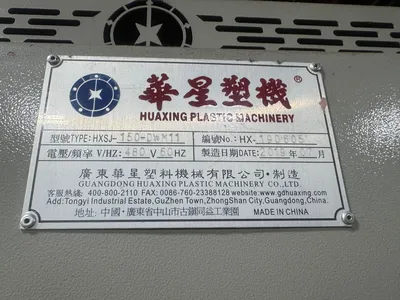

HUAXING HXSJ 150-DWM11 Three Stage Plastic Extrusion (2019)

HUAXING HXSJ 150-DWM11 Three Stage Plastic Extrusion (2019)
150mm (6”) 30:1 L/D PE & PP Extrusion line
480V, 50A, 60Hz
600 to 1,000 kg / hr

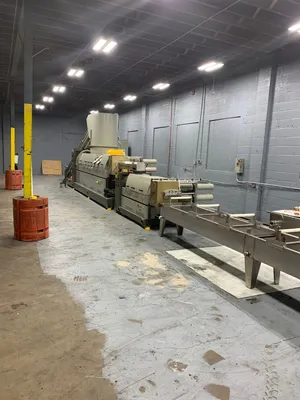

System consists of:
Main control panel

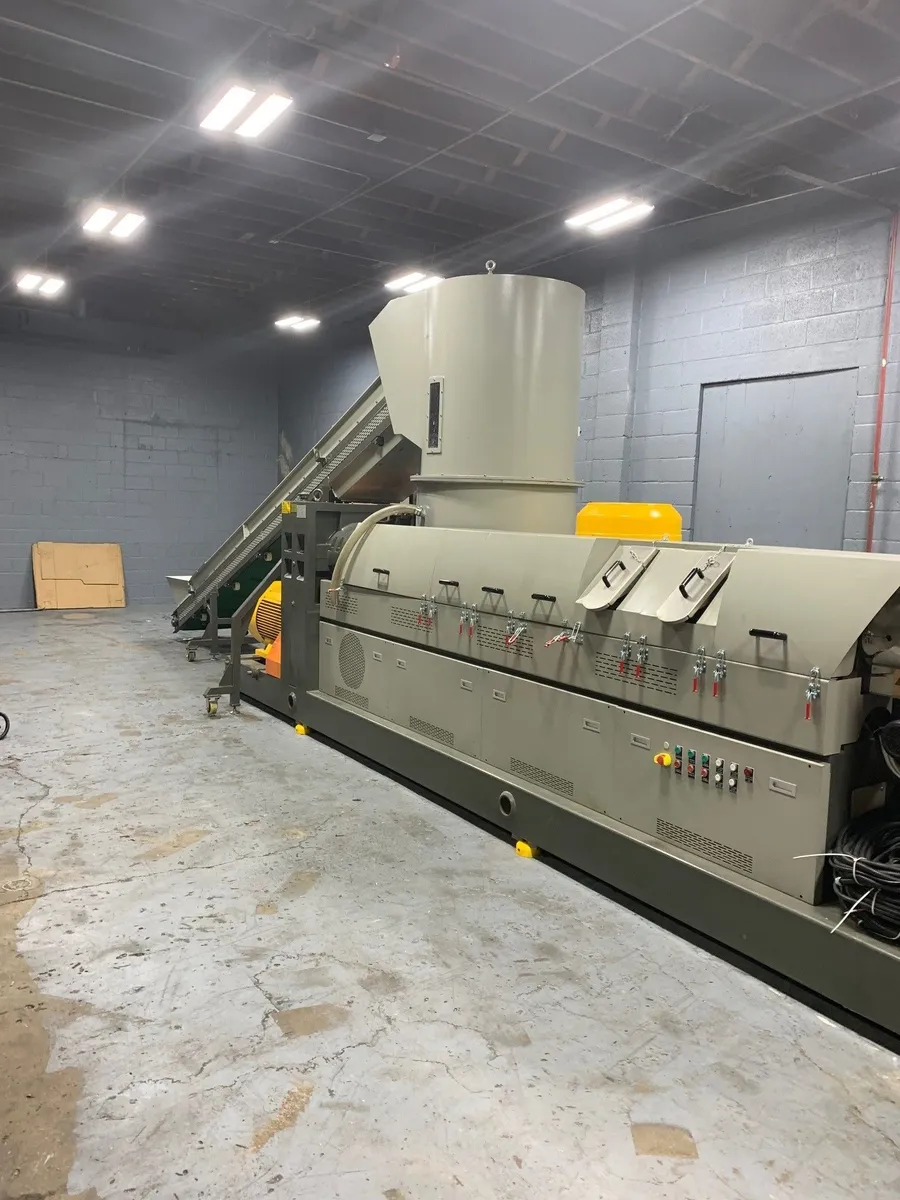

Crusher / compactor with infeed conveyor
Two stage plastic extruder:
1) 150mm x 4500mm (30:1) primary, double vented with vacuum system & 2 stage
filtration
2) 150mm x 1800mm (12:1) secondary, single vented with 2 stage filtration

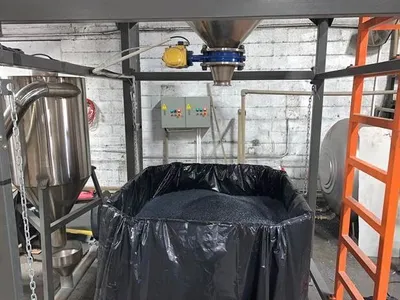

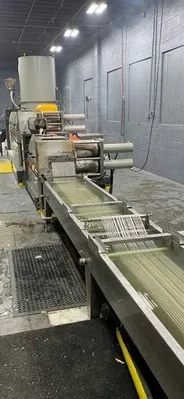

Water bath strand cooling system with dewatering blowers, strand cutter, vibrating table,
cooling tank, cooling tower, recirculation pumps, discharge vacuums, storage cyclone and
pneumatic storage cyclone discharge.
Low hours and spare parts
