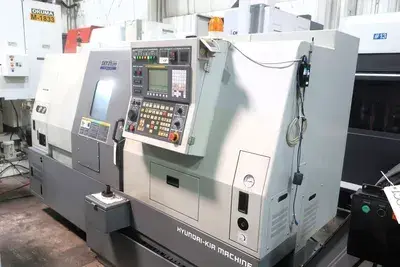

Hyundai Wia Model SKT21LMS CNC Lathe with Live Tooling and Sub Spindle

Hyundai Wia Model SKT21LMS CNC Lathe

SWING 21.6"
MACHINING LENGTH 20.9"
CHUCK SIZE 8"
BAR CAPACITY 2.56"
POWER 15 hp
MAX RPM 4,000 RPM
TURNING DIA 10"
TAILSTOCK No
LIVE TOOLING Yes
SUB SPINDLE Yes
SPECIFICATIONS:
CAPACITY: SWING OVER BED / SWING OVER SADDLE 21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH 10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS 25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE 3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS) 20 / 15 HP
SUB-SPINDLE: SPEEDS 40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING 1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.) 5 / 3 HP
TURRET: NUMBER OF POSITIONS 12 STATIONS
X-AXIS TRAVEL 8.3"
Z-LONGITUDINAL 21.7"
ROTARY TOOLS: ROTARY TOOL SPEED 30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS) 5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z ) 590 / 708 IPM
FEED RATE (X & Z ) 0.04 - 157 IPM

EQUIPPED WITH:

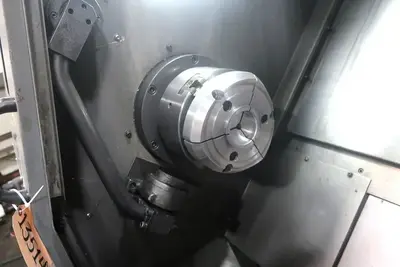

8″ 3-Jaw Chuck on Main Spindle

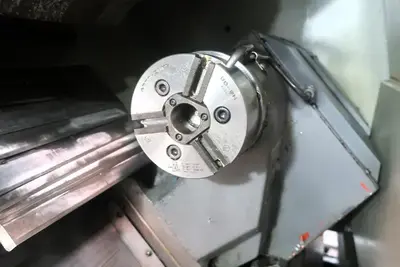

5″ 3-Jaw Chuck on Sub Spindle
Sub Spindle

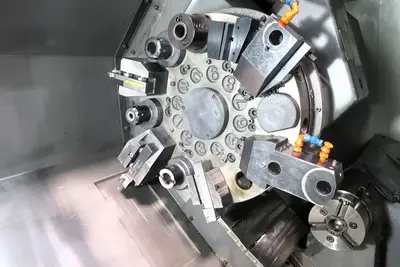

12 Station Live Tool Turret
Tool Presetter
Part Catcher
Chip Conveyor
Tooling on Turret Included as Pictured
