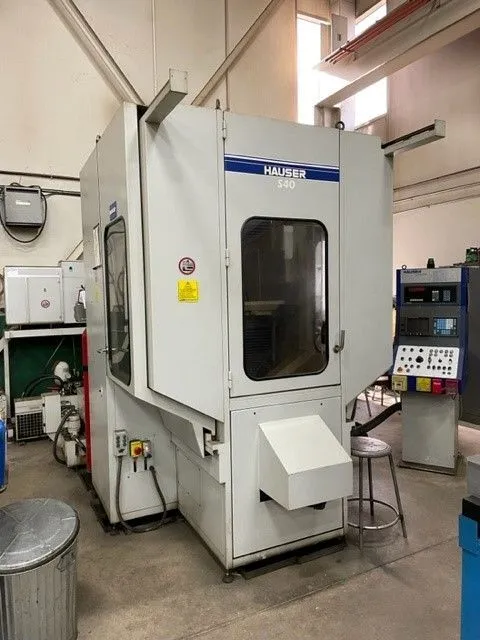

Hauser S40-400 CNC Jig Grinder

Hauser S40-400 CNC Jig Grinder

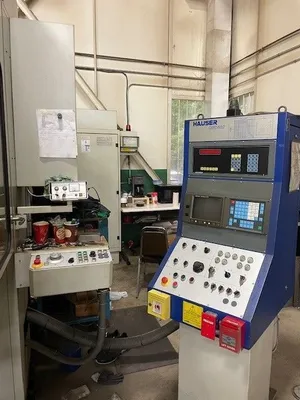

CNC control
FANUC Series 0-M
Max. Stroke speed W axis
800 [mm/min]
Stroke X axis
650 [mm]
Max. Stroke speed X axis
4000 [mm/min]
Working feed X axis
0 - 1800 [mm/min] [mm/min]
Stroke Y axis
450 [mm]
Working feed Y axis
0 - 1800 [mm/min] [mm/min]
Stroke Z axis
130 [mm]
Min. Stroke speed Z axis
0.5 [mm/min]
Max. Stroke speed Z axis
12000 [mm/min]
Stroke frequency Z axis
max. 4 [Hz]
Planetary speed C axis
5 - 250 [rpm]
Stroke U axis (radial feed)
5.5 [mm]
Distance between columns
750 [mm]
Table length
770 [mm]
Table width
630 [mm]
Clearance between grinding motor and table
585 [mm]
Max. load on table
500 [Kg]
Supply voltage
400 [V]
Weight
4550 [Kg]
