| X | 19.7" | 500.38 mm |
| Y | 17.7" | 449.58 mm |
| Z | 15.7" | 398.78 mm |
| # Axis | 5 | 5 |
| Power | 46 hp | 34.3 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Control | CNC (ERGOline Heidenhain iTNC 530)) | CNC (ERGOline Heidenhain iTNC 530)) |

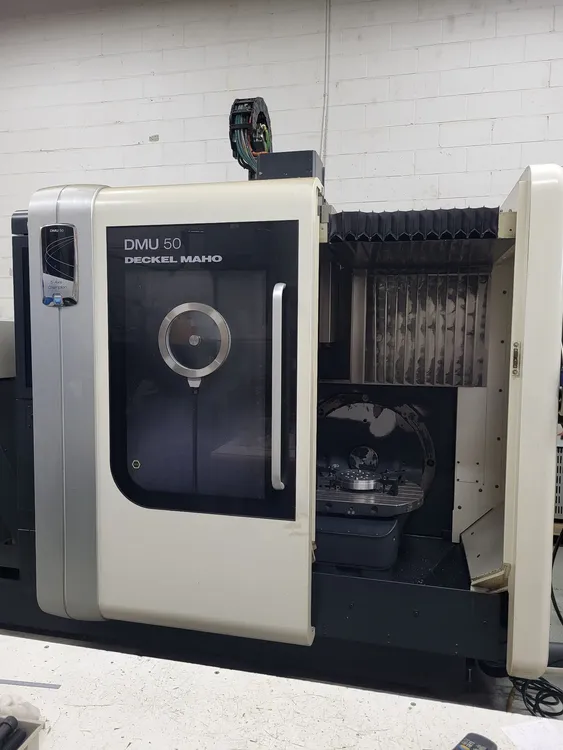

DMG Mori DMU50 5 Axis Machining Center (2014)
X Travel 19.7"
Y Travel 17.7"
Z Travel 15.7"
Spindle Speed 10000 rpm
Tool Capacity (ATC) 16
Table Size (W) 27.6"
Table Size (L) 19.7"
Main Spindle Motor 30 hp
Spindle Taper CAT 40
5 Axis Programmable Axis Full 5 Axis Contouring

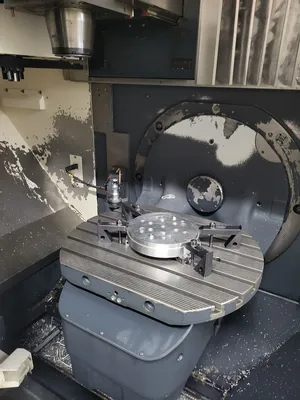

Table Type A-Axis Trunnion Tilt Range 360°
B-AXIS (Table Swivel) -5110
Rapid Traverse Rates 1181
Control CNC (ERGOline Heidenhain iTNC 530)
Dimensions 90" x 87" x 109"
Weight 10000 lb

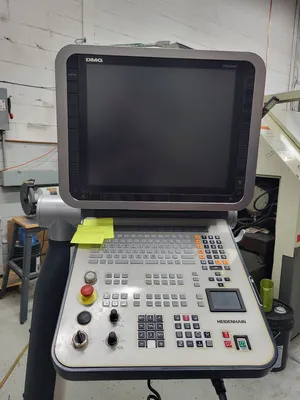

ERGOline Heidenhain iTNC 530

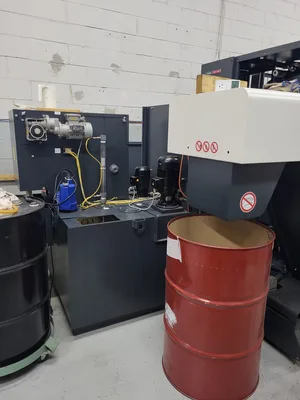

High Pressure Coolant and Filtration with Integrated Chip Conveyor
