Heavy Duty Box Way design on Column, Box Table

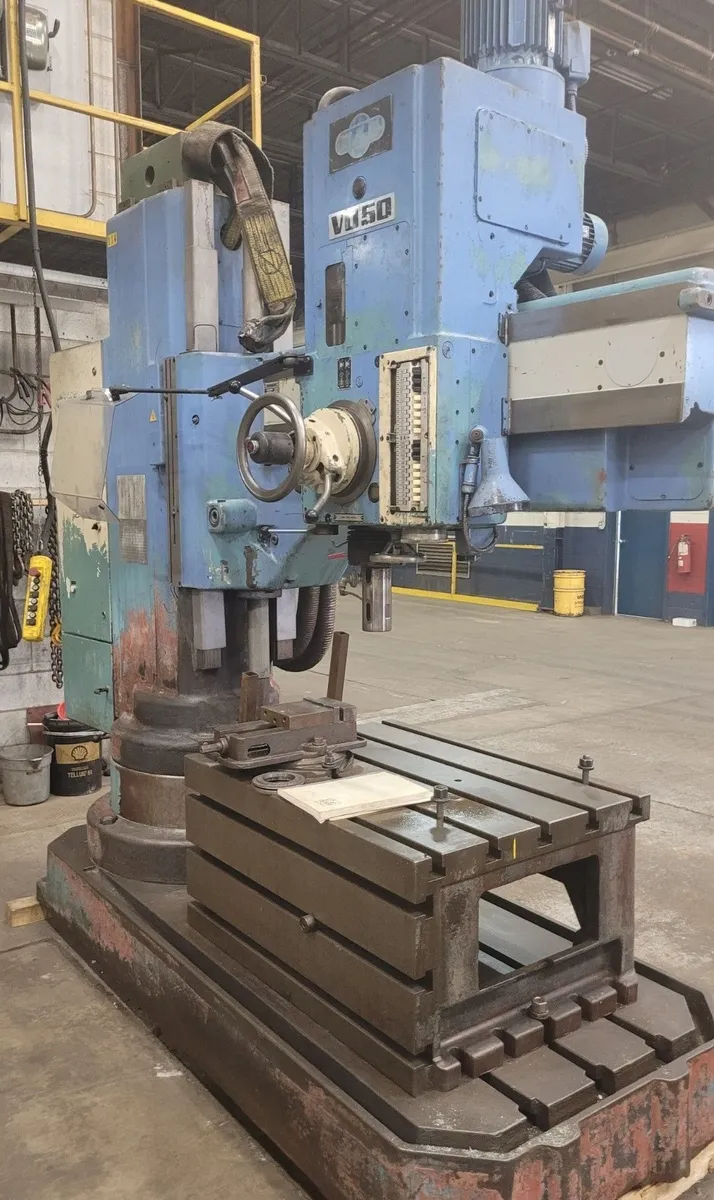

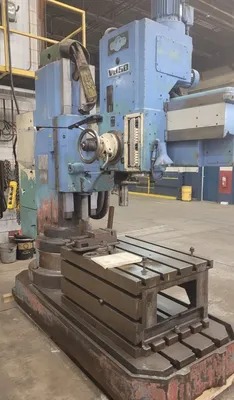

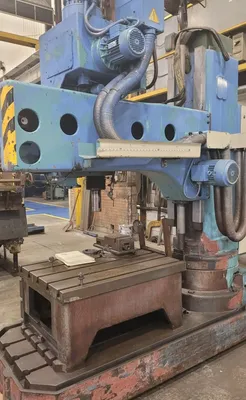

Mas VO50 Heavy Duty Radial Arm Drill
Capacity:
Drilling In Steel ..................... 1.96"
Drilling In Cast Iron ................. 2.36
Boring In Steel ....................... 8" Diameter
Thread Cutting In Steel ............... 1.25"
Thread Cutting In Cast Iron ........... 1.75"Max/Min
Distance: Spindle Center To Column .............. 63" / 12.5"
Spindle To Base ....................... 59" / 12.6"
Vertical Adjustment Of Radial Arm ........ 29-1/2"
Horizontal Travel Of Drilling Head ....... 50"W
orking Surface To T-Slotted Base ........ 58" X 38"
Diameter Of Spindle ...................... 3"
Taper In Spindle ......................... #5 Morsespindle
Stroke ........................... 12.2"
Spindle Speed Range (16) ................. 28 - 2,500 Rpm
Spindle Feed Range (16) .................. .002 - .08 Ipr
Dimensions ................... 108"L X 44"W
approximate Weight ....................... 9,500 Lbs.
T-Slotted Base-
Power Elevation For Raising And Lowering The Arm On The Column-
T-Slotted Box Table-
Coolant Pump And Tank Built Into Base-
3.5 Horse Power Volt Power Elevation Motor- 6 Horse Power Spindle Drive Motor
