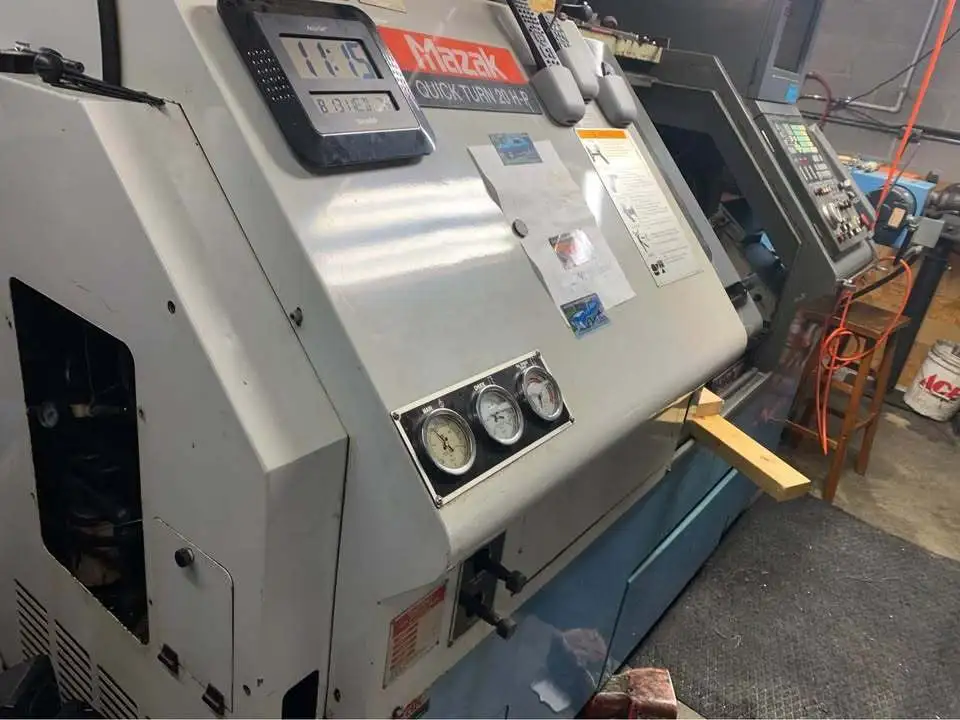

Mazak Quick Turn 20 HP CNC Lathe
Have one to sell?
ConditionUsed
1 available
T Plus Control
Mazak Model QT20H-P 2 Axis Slant Bed CNC Lathe
X Axis Travel: 7.125"
Z Axis Travel: 20.125"
Max. Swing over bed / Cross Slide: 17.32" / 10"
Max. Machining Length: 19.69"
Maximum Machining Diameter : 10.62"
Turret Type: 8 Position Turret
Spindle Bore / Bar Capacity: 3.15" / 2.76"
Spindle Motor: 20 HP
Spindle Nose: JIS A2 - 8"
Spindle Speed: 40 - 4000 RPM
Rapid Traverse X, Z: 1200 IPM/1300 IPM
Turret Indexing-chip to chip: 1.4 seconds
Tailstock Stroke: 18.11"

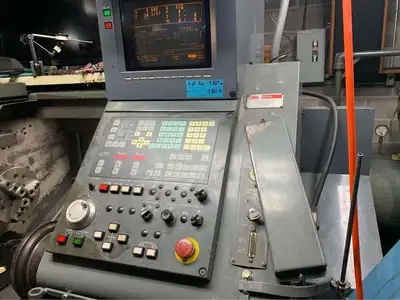

Mazatrol T Plus CNC Control

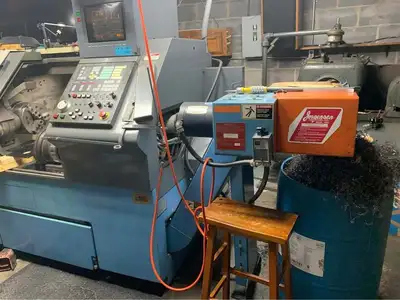

Chip Conveyor
