| size | 30" x 16" x 20" | 30" x 16" x 20" |
| X Travel | 30" | 762 mm |
| Y Travel | 16" | 406.4 mm |
| Z Travel | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 301 | 301 |
| Taper | 40 | 40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |

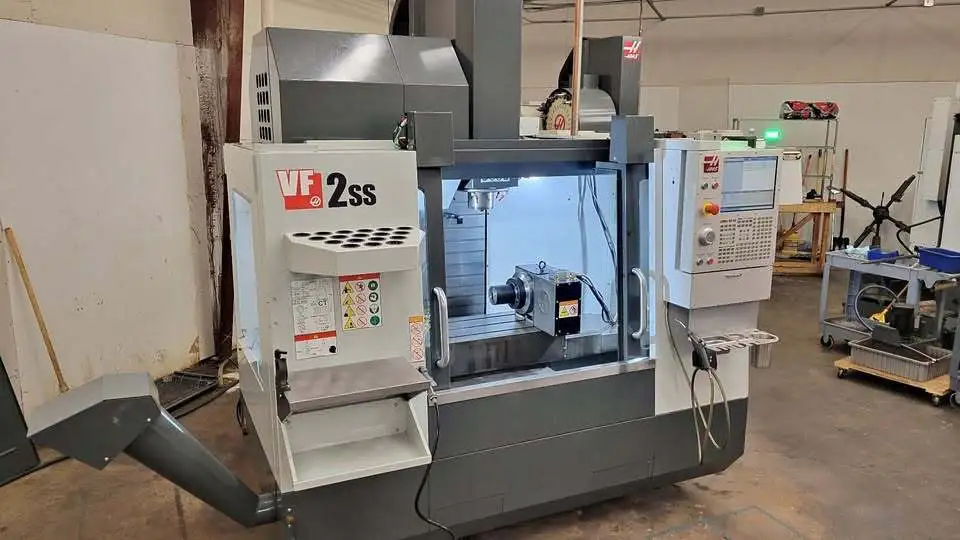

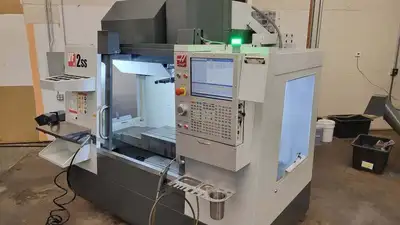

Haas VF-2SS 4 Axis Vertical Machining Center (2021)

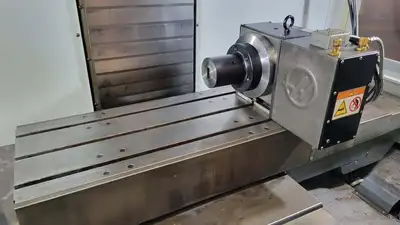

4th axis rotary model HRT-A6 with a pneumatic 16C collet closer. The collet closer is actuated through the machine control for fully automated operation. We will load 36"-48" long bars and let the control automate the bar feeding for continuous multi-hour and overnight operation. The collet chuck can be easily swapped for a regular T-Slot face plate if that's what your work requires. The 16C collet has a max capacity of 1-5/8" round. If you swap the 16C for a 3 jaw chuck then you can use the full 2" through spindle capacity.
