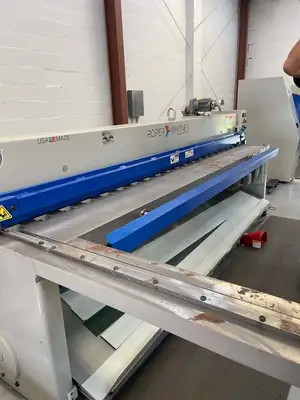

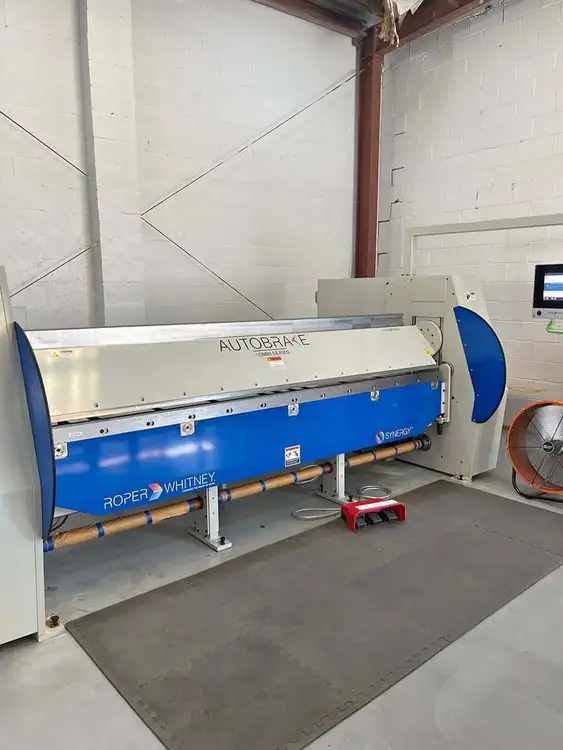

Roper Whitney AB1014KE2 ( Kombi ) CNC Folding Machine (2023)

Roper Whitney AB1014KE2 ( Kombi ) CNC Folding Machine (2023)
Weight
9132 lbs
Dimensions
159 × 89 × 68 in
Bending capacity (Mild Steel)
14 ga/ 2,0 mm

Bending capacity (Stainless)
16 ga/ 1,5 mm

Bending length
122 in/ 3100 mm

Bending bars
0.787 in/ 20 mm, 0.394/ 10 mm, 0.275 in/ 7 mm

Back gauge depth (standard)
61 in/ 1550 mm

Clamping beam opening height
7.3 in/ 185 mm

Clamping beam straight bar tooling
30 degrees

Folding beam adjustment
2 in/ 50 mm

Crowning of the folding beam
5-point 0 0.030 adjustment

Working height
34 in/ 864 mm

Back gauge servo motor
3/4 hp

Clamping beam motor
2 hp/ 1.5 kw

Bending beam motor
2 hp/ 1.5 kw
