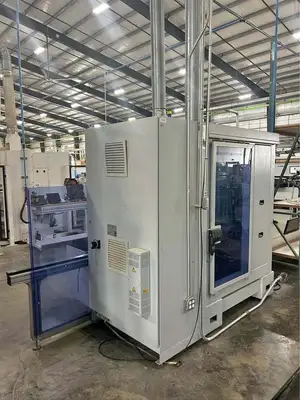

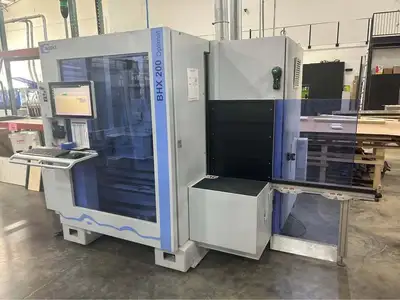

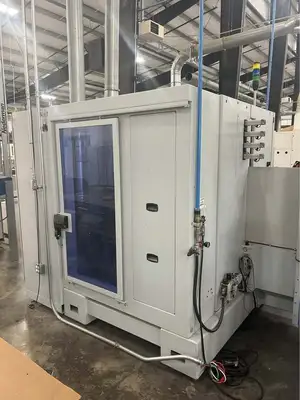

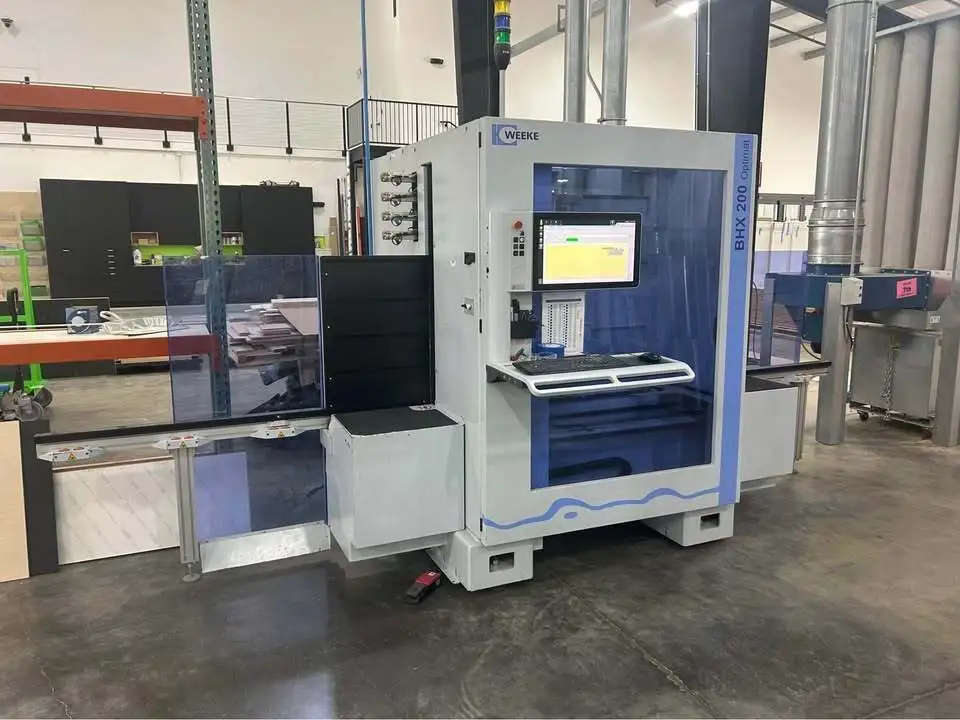

Weeke Optimat BHX200 Vertical Machining Center (2016)

Weeke Optimat BHX200 Vertical Machining Center (2016)
+ PANEL RETURN SYSTEM + CLAMEX-P PROCESSING:
Specifications:
Flexible “Vertical” Machining Center That Uses Less Than 10 Sq/M Of Valuable Floor in Addition to an Innovative Panel Handling System.
Working Cap:
Max. Workable Part Size For “X” Axis Is 120” (3,050 Mm); “Y” Axis 49.2” (1,250 Mm) Max. Part Thickness 3.1” (80 Mm)
Min. Workable Part Size For “X” Axis Is 13.8” (350 Mm); “Y” Axis 2.36” (60mm); Min. Part Thickness Of 0.31” (8mm) Automatic Infeed & Outfeed.
Positioning Speed:
The BHX 200 Can Reach Movement Speeds Of 164 Fpm (50 MPM) In “X” & “Y” Axes & 50 FMP (15 MPM)
In “Z” Axis with Total Safety; Provides an Unmatched working Capacity.
Boring Unit:
(1) 3 Hp (2.3kw) Motor Variable Speed From 1,500-7500 Rpm; (15) Independent Spindles With: (9) Spindles In “X” Axis & (6) Spindles In “Y” Axis
(10) Horizontal Spindles With: (3+3) In “X” Axis & (2+2) In “Y” Axis; Boring Block Has “Quick Change” Spindle System
Operator & Machine Control:
Weeke “Powertouch” + Windows “7” + WoodWOP Operating System; “I5” Processor.
21.5” HD Multitouch Wide Screen Display Monitor; Soft-Touch Keypad & USB Connection; Digital Field Bus System; Rs-232 Serial Port, Ethernet Connection.
Real-Time Multitask Processing; Program Can Be Transferred Via USB or Downloading by Wire Is Possible.
Complete With:
Pneumatic Part Clamping Devices; Sound Enclosure; Complete Set of Safety Devices.
Option Include:
(1) CNC Controlled 0-90 “X/Y: Grooving Saw for Max. 125 mm Dia. X 5 mm Thick Blade.
(1) 13.4 Hp (10 Kw) Air-Cooled Electrospindle Router with HSK F3 Adaptor; Variable Speed From 1500-24,000 RPM
(1) 4-Position ATC Tool Rack Mounted on the Side of the Machine Base.
