| Swing | 26.4" | 670.56 mm |

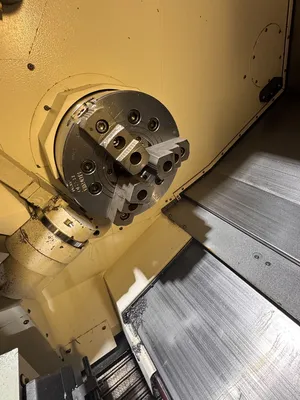

| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Control | CNC (Mazatrol Matrix Nexus CNC) | CNC (Mazatrol Matrix Nexus CNC) |

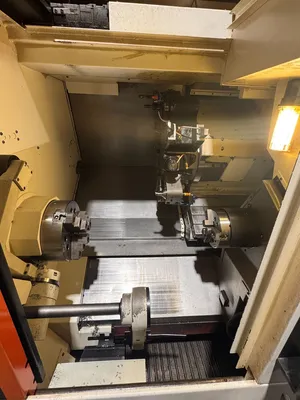

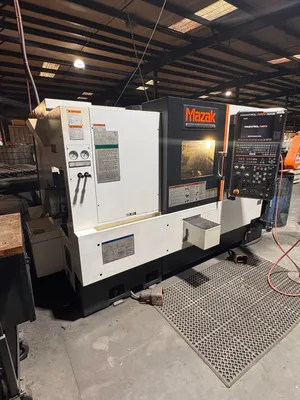

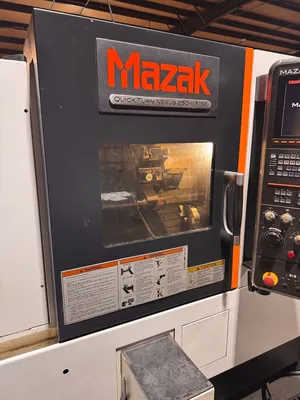

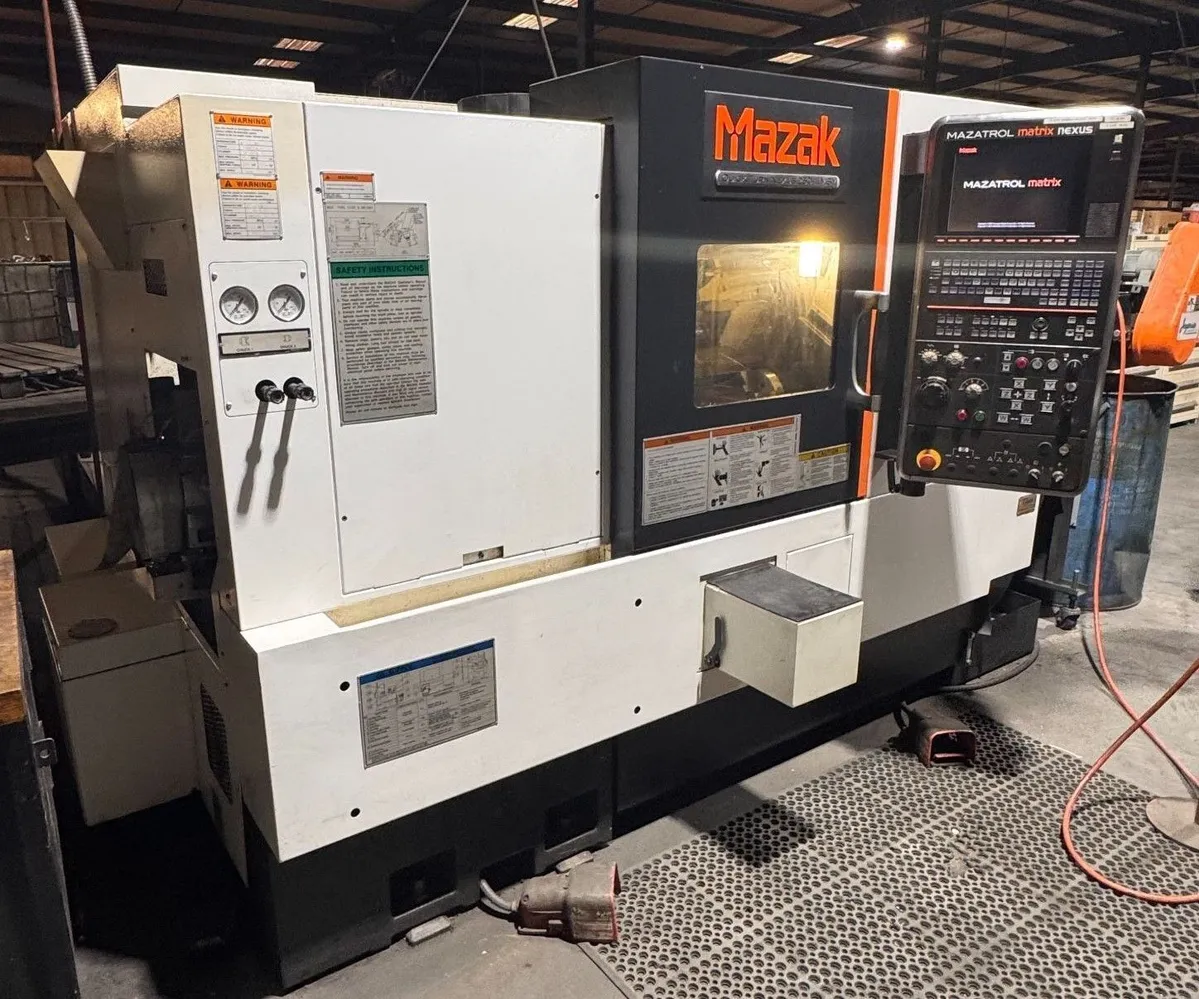

Mazak Model QTN 250MSY-II CNC Multi Axis CNC Turning Center
Swing: 26.4"
Turning Diameter:14.75"
Center Distance:21.28"
Bar Capacity3"
X Axis Travel9"
Z Axis Travel22.75"
Y Axis Travel4"
W Axis Travel23"
C Axis Index0.001°
Rapid Traverse (X/Z/W/Y): 1,181/1,181/1,181/826 ipm
Spindle Speed (RPM) 4,000 rpm
Main Motor 35 hp

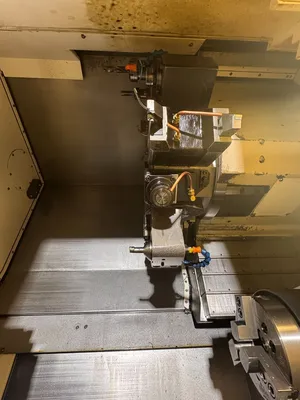

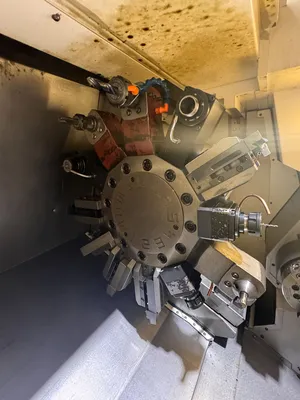

Turret Capacity12 + 12
Live Toolingyes
Live Tooling Speed 4,500 rpm
Live Tooling Motor7.5 hp
Sub Spindleyes

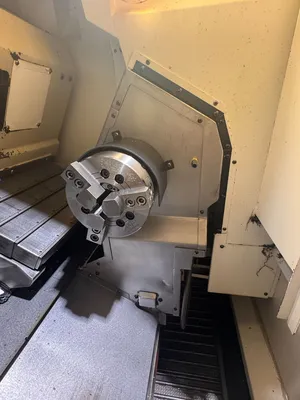

Sub Spindle Chuck6"
Sub Spindle Speed6,000 RPM
Sub Spindle Motor (HP)7.5 hp
Y Axisyes
Dimensions 117" x 73" x 73"
Weight 12,000 pounds
Equipped with:

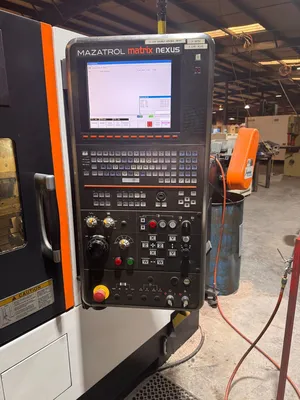

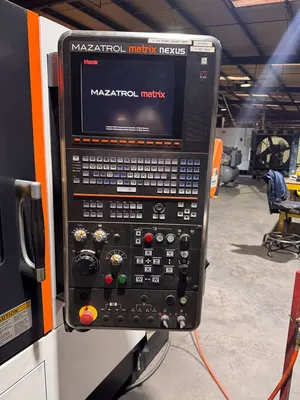

Mazatrol Matrix Nexus CNC Control
Sub Spindle
Live Tooling
Y Axis
Conversational Programming
Chip Conveyor
Mazatrol Matrix Nexus CNC Control
Sub Spindle
All Available Live Tooling
Y Axis
Conversational Programming
Chip Conveyor
