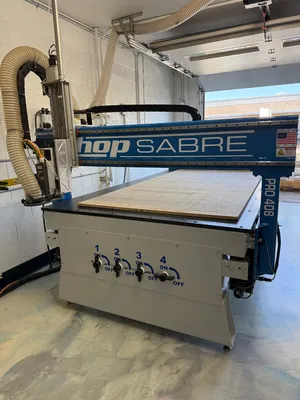

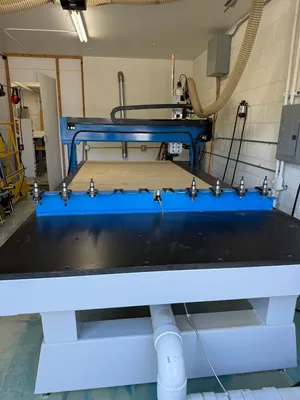

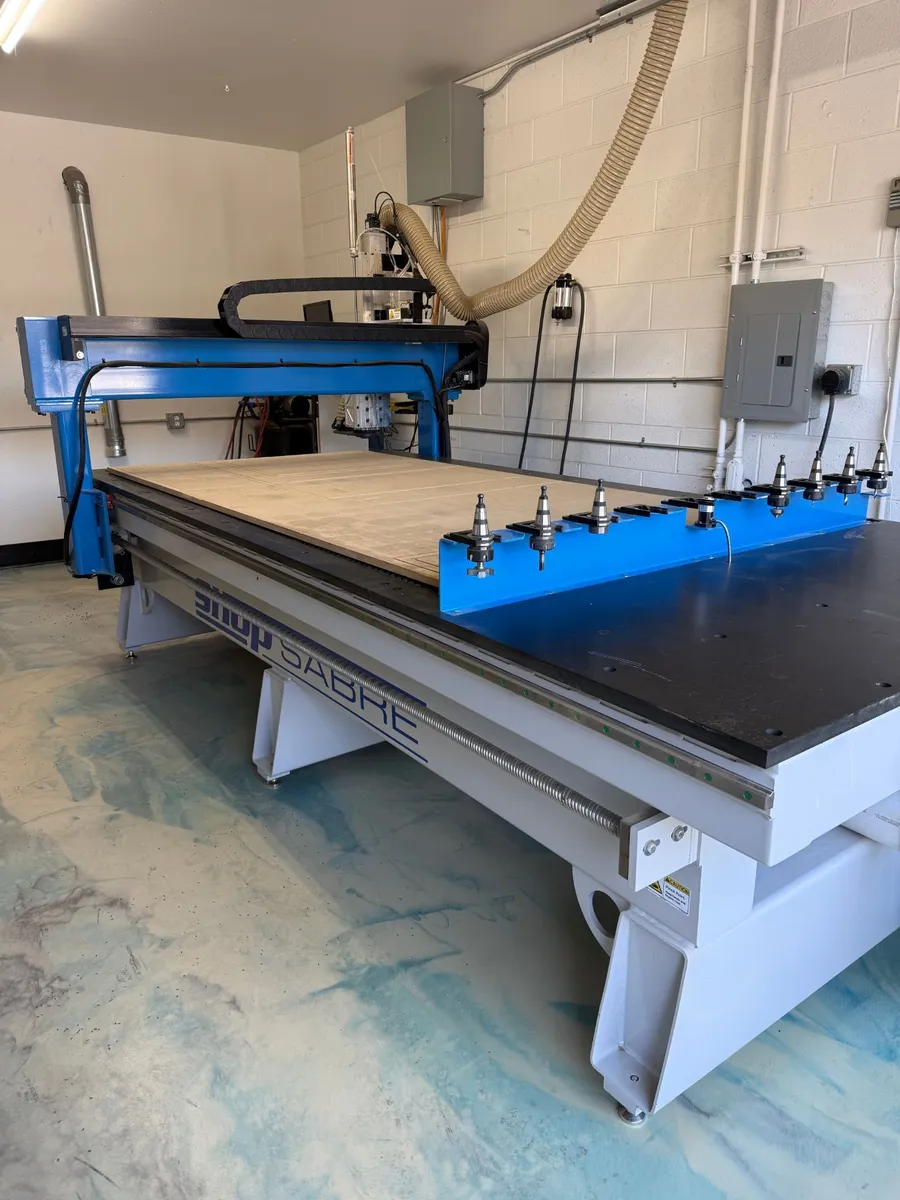

ShopSabre PRO408 CNC Router (2021)
Have one to sell?
ConditionUsed
1 available
A 2021 ShopSabre Pro features include a welded steel frame and gantry, 25mm HiWin linear rails, AC digital servo motors with amplifiers, a Shopsabre computer system with Vectric VCarve software, and an optional auto tool changer. Common configurations like the PRO408 had a 60" x 100" cutting area, while the PRO510 offered a 72" x 125" area, both with a standard 12" Z-axis and a 10HP spindle.
General Features of the 2021 Pro Series
Construction: Aerospace-milled, welded, structural steel frame and gantry for rigidity.
Drive System: 3-axis ball screw drive with ShopSabre's Twin Screw Anti-Whip Technology on the Y-axis.
Linear Rails: 25mm precision HiWin linear guide rails.
Motors: High-torque, AC digital closed-loop servo motors with absolute encoder technology.

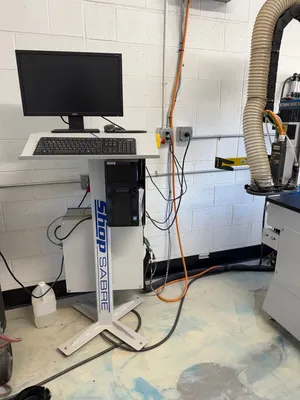

Control System: ShopSabre Computer System with a Windows-based PC.
Software: Vectric VCarve Pro CAD/CAM software.
Z-Axis: Features an Auto Tool Measure Switch for measuring tooling height.
Common Models
PRO408:
Cutting Area: 60" x 100".
Table: 60" wide.
Footprint: Approximately 80" x 135".
(2021) ShopSabre Pro features include a welded steel frame and gantry, 25mm HiWin linear rails, AC digital servo motors with amplifiers, a Shopsabre computer system with Vectric VCarve software, and an optional auto tool changer. Common configurations like the PRO408 had a 60" x 100" cutting area, while the PRO510 offered a 72" x 125" area, both with a standard 12" Z-axis and a 10HP spindle.
General Features of the 2021 Pro Series
Construction: Aerospace-milled, welded, structural steel frame and gantry for rigidity.
Drive System: 3-axis ball screw drive with ShopSabre's Twin Screw Anti-Whip Technology on the Y-axis.
Linear Rails: 25mm precision HiWin linear guide rails.
Motors: High-torque, AC digital closed-loop servo motors with absolute encoder technology.
Control System: ShopSabre Computer System with a Windows-based PC.
Software: Vectric VCarve Pro CAD/CAM software.
Z-Axis: Features an Auto Tool Measure Switch for measuring tooling height.
Cutting Area: 60" x 100".
Table: 60" wide.
Footprint: Approximately 80" x 135".
