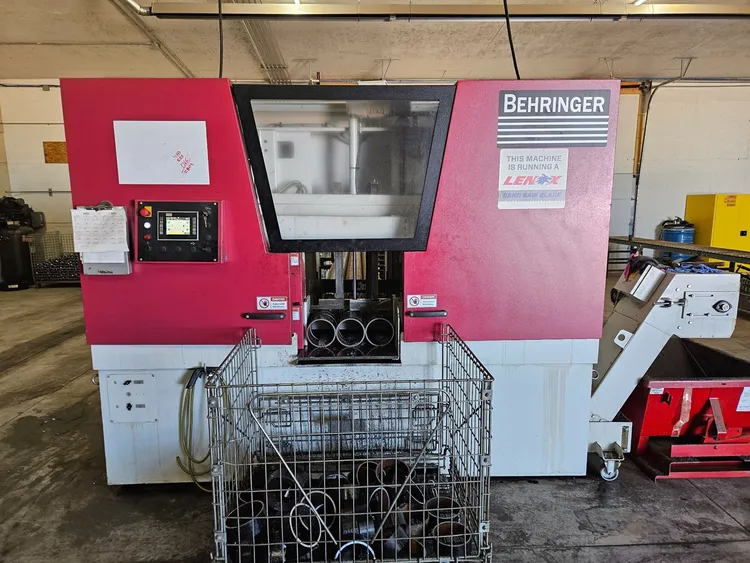

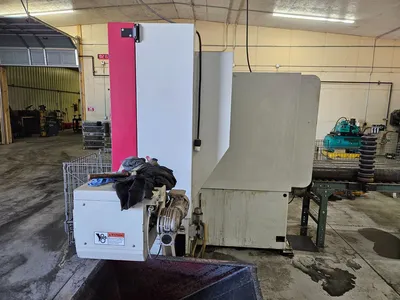

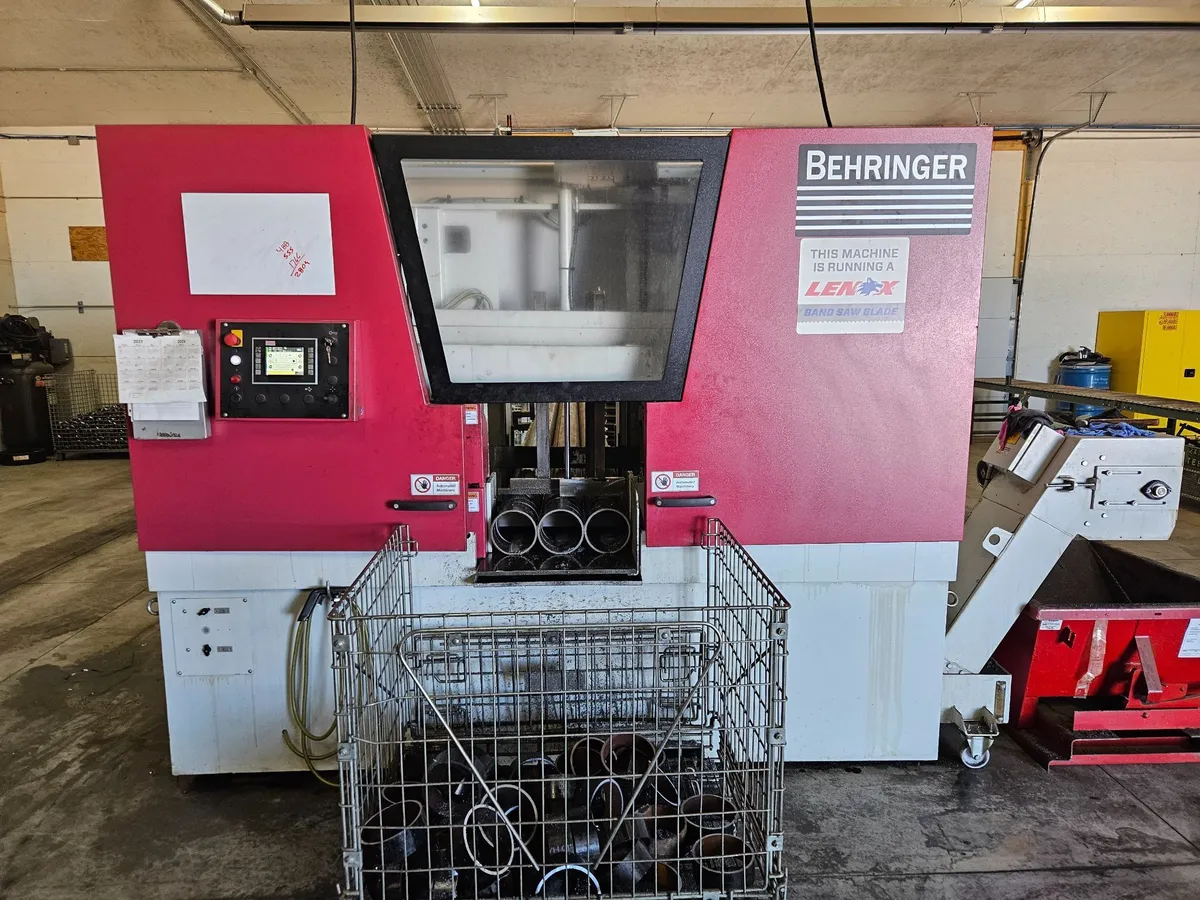

Behringer HBE411A Dynamic Automatic Horizontal Band Saw (2022)
Have one to sell?
ConditionUsed
1 available
Upgraded 2" blade, Oil mist system, and vertical clamps for easy bundle cutting. The automatic band saw HBE411A Dynamic from BEHRINGER is designed for economical use in industry and the steel trade. It offers high-performance saw cuts with simultaneously low cutting deviations in easy to difficult-to-machine metals and plastics. In doing so, the band saw covers a wide range of materials from profiles and tubes to solid material. Thanks to its wide-opening full enclosure, the automatic band saw HBE411A Dynamic offers uncompromising work protection combined with good accessibility. Its low energy consumption contributes to resource-saving production.
Behringer HBE411A Dynamic Automatic Horizontal Band Saw (2022)
Attribute name Attribute value
Saw blade dimension (mm) 5.730x41x1,3 (2" Upgrade )
Rest piece length in automatic operation 80 mm
Blade speed (m/min) 15-110
Power of saw drive (kW) - frequency regulated 3,8
Material support height (mm) 800
Weight approx. (kg) 3200
Saw feed Servo-feed via ball screw
Cutting range 90° round [mm] 410
Cutting range 90° flat [W x H in mm] 510x410
Material feeding length (mm) 640
CNC-Program Controls BT65 (Standard)
Sawblade bias 1° Standard
Automatic band guide adjustment Standard
Cast iron band guiding parts
are made by Behringer and provide vibration damping directly at the cutting edge, thus increasing tool life.
Auto-Feed-Control
Selection of the material in an extensive material database. The AFC automatically calculates the optimal values for saw feed and cutting speed.
Energy efficient
The use of modern drives and a special hydraulic system reduces energy consumption by approx. 30% compared to the previous model.
Precision portal-design guide system
The combination of stable, low-vibration saw frame and the linear guide system in portal design ensure the best band sawing results and maximum service life.
Electrically driven chip brush
with Behringer quick-change device for tool-free brush changes. The teeth of the saw band are protected by the special engagement angle.
Servo downfeed system
The saw feed is carried out by means of a ball screw and servo motor. This results in significantly shorter idle times and more precise saw feeds. Your advantage: higher cutting performance and longer band life!
Automatic guide arm
Optimum sawing result without any adjustments - even with frequently changing material sizes.
Easy to use
Quick and easy operation of all functions of the automatic band saw via touch control.
Double clamping vice
offers process reliability - especially when sawing bundles or making single cuts. The clamping jaws of the band saw are arranged on the infeed and outfeed side and clamp both the starting material and the finished cut.
Individual Configuration
Upgraded 2" blade, Oil mist system, and vertical clamps for easy bundle cutting.
