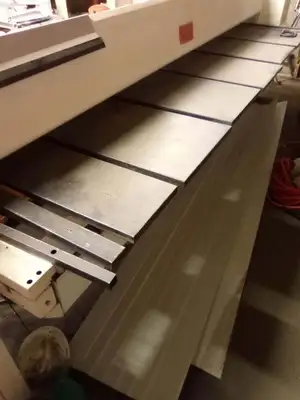

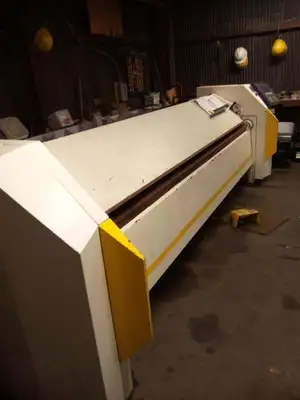

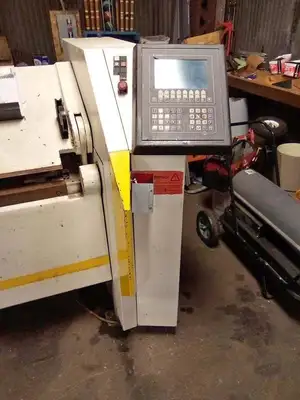

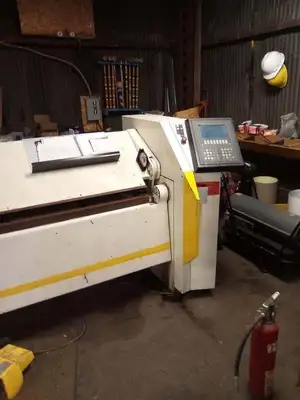

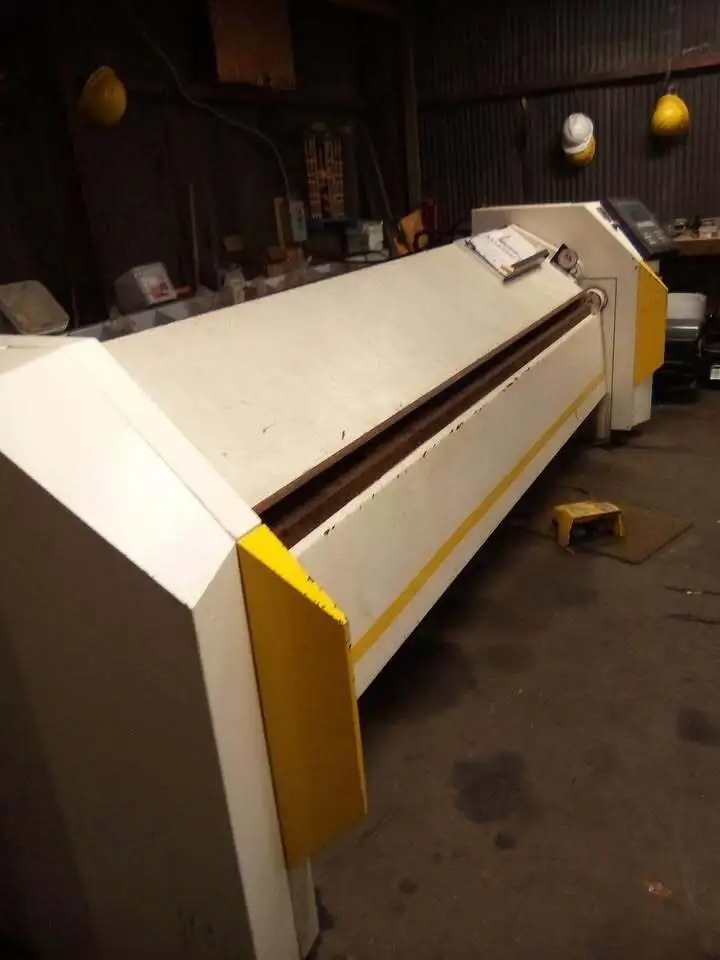

RAS Turbobend 61.31 120" CNC Folding Machine

RAS Turbobend 61.31 120" CNC Folding Machine

Maximum Sheet Thickness 16 ga/1.5mm Automatic CNC folding beam adjustment .05”-.244”
Maximum Length 124”/3150mm Motor Drive Power Upper Beam 1 hp/.75 kw
Backgauge Depth 0.236” - 39.4” / 6-1000mm Motor Drive Power Folding Beam 1.5 hp/1.1 kw
Machine Length 170”/4320mm Down stroke Speed 2”/sec 6mm/sec
Machine Width 55.1”/1400mm Maximum folding beam speed 80º/sec.
Machine Height 54.33”/1380mm Maximum backgauge speed 12”/sec.
Working Height 33.5”/850mm Backgauge Accuracy ± .004”/.15mm
Maximum Upper Beam Upstroke 0 - 4.73”/ 0- 120mm *Standard Electrical Power 230/3/60
Machine Weight 5,500 lbs. Current Usage Max. 20 amps
