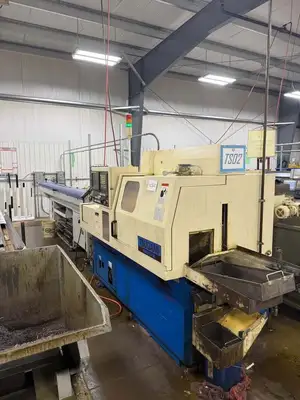

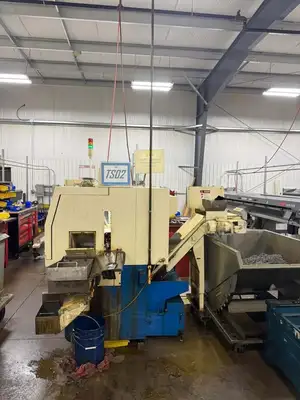

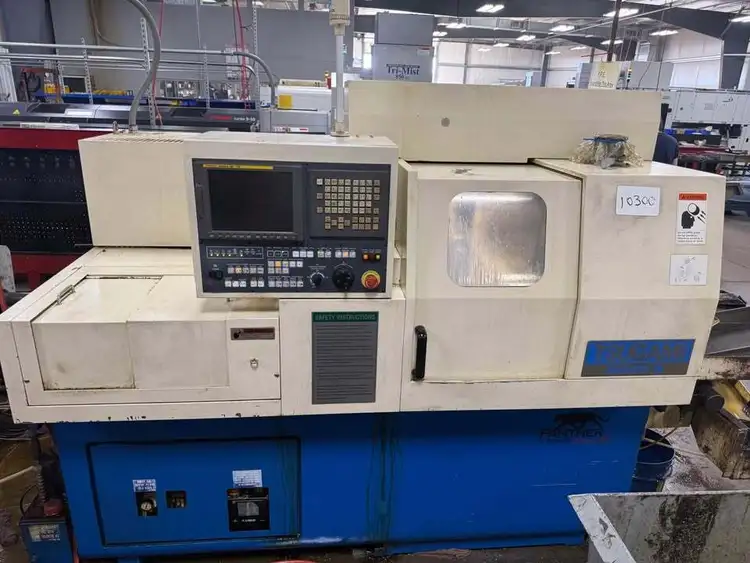

Tsugami BS20-II 20mm Swiss Lathe

Maximum turning diameter - 0.788 inches (20 mm)
Maximum work piece diameter - 0.787 inches (20 mm)
Maximum turning length - 8.268 inches (210 mm)
Maximum drilling diameter - 0.3937 inches (10 mm)
Number of Axis - 5
Dimensions - 85" x 58" x 72"
Weight - 5,520 LBS
Control - Fanuc

Spindle and Motor Specifications:
Main spindle speed - 200–8,000 RPM
Sub-spindle speed - 200–7,000 RPM
Rotary tool speed - 200–5,000 RPM
Main spindle indexing - 0.001 degree
Main motor - 5 HP
Sub motor - 3 HP
Rotary tool motor - 1.5 HP

Tooling Capacity:
Total tool positions - 17
Cross-driven tools - 4
Outer diameter (OD) tools - 6
Inner diameter (ID) tools - 4
ID/OD positions - 3
