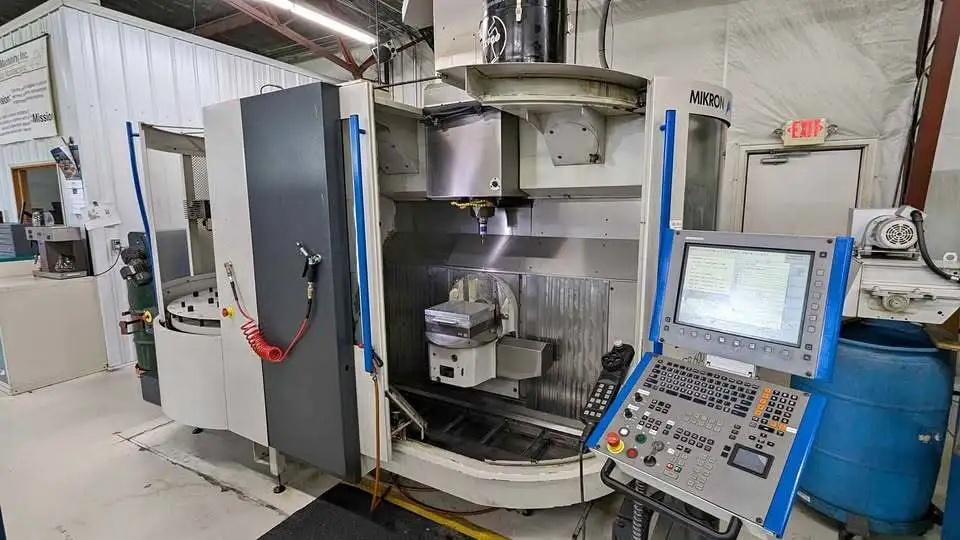

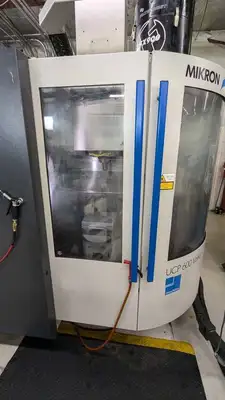

Mikron UCP 600 Vario 5 Axis CNC High Speed Machining Center (2006)

Mikron UCP 600 Vario 5 Axis CNC High Speed Machining Center
Table, carriage (X,Y,Z,B,C): Gray cast iron
X-axis travel: 23.623 (600 mm)
Y-axis travel: 17.723 (450 mm)
Z-axis travel: 17.723 (450 mm)
B-axis travel: -115/+30 degrees
C-axis travel: n x 360
Rapid traverse (X,Y,Z): 866 in/min (22 m/min)
Maximum Acceleration: .6 m/s-2
Measurement system: 0.000043 (1 um) in glass scale positioning

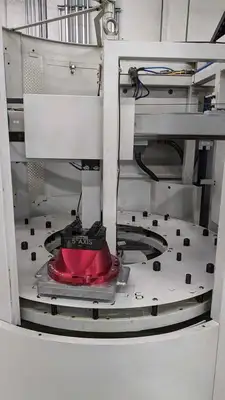

Rotary tilt table size: Up to 17.713 diameter (450 mm)
Rotary tilt table, carrying capacity: 441 lbs (200 kg)
Spindle: 17 hp (13 kW)
Spindle speed: 100-20,000 rpm
Spindle torque: 3.1 ft. lbs. (4.2 Nm)
Spindle taper: HSK E 40
Automatic tool changer capacity: 30
Maximum tool diameter: 0.6253 (16 mm)
Maximum tool length from the spindle nose: 4.724413 (120 mm)
Maximum tool weight: 2.2 lbs (1 kg)
