Verson 4-post Compression Molding Press Model 200-HD2-72-4P

Description

Verson
Wanting to list at 110k- maybe 120k depending you commission charge

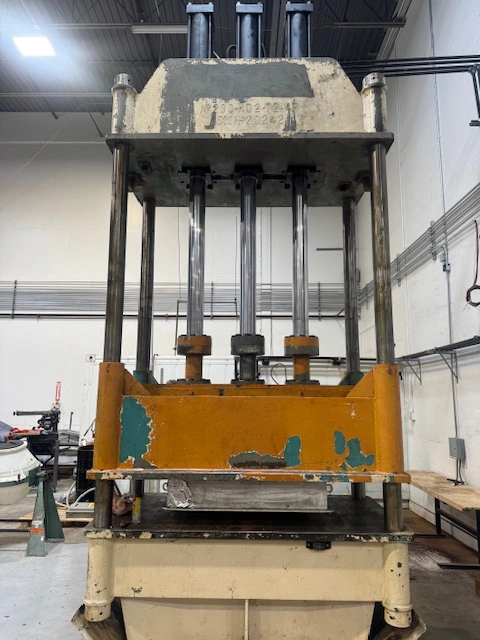

200 Ton MODIFIED Verson 4-post Compression
Model 200-HD2-72-4P
Serial 20242

Specs
CAPACITY 200 TONS
MAX. STROKE 54"
DAYLIGHT TO BED 26" MIN - 80" MAX
BED AREA APPROX. 86" X 54" (RL X FB)
DISTANCE BETWEEN POST 74" X 32" (RL X FB)
USABLE BED & RAM AREA 74" X 54" (RL X FB)
CYLINDER SIZE TWO 7" DIA. CYLINDERS - Modification:CYLINDER SIZE THREE 8" DIA. CYLINDERS
ROD SIZES TWO 5.5" DIA. RODS - Modification: ROD SIZES THREE 5.5" DIA. RODS
POST SIZE 5.5" DIA.
FLOOR TO BED 36"

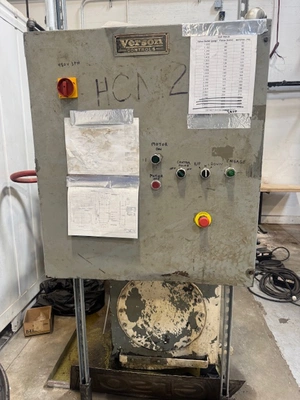

PRESS CONTROLS VERSON CONTROLS - Modification - PRESS CONTROLS MODIFIED ELECTROMECHANICAL

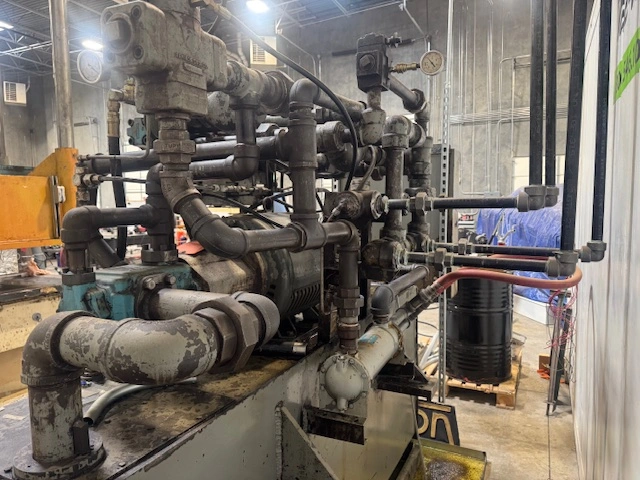

HYDRAULICS ABEX DENISON HYDRAULIC PUMP | PARKER VALVE D63W1B44Y
ELECTRICS 25 HP LINCGUARD LINCOLN MOTOR - Modification: • 480V - 3PH - 60HZ | 37.7 AMP - --

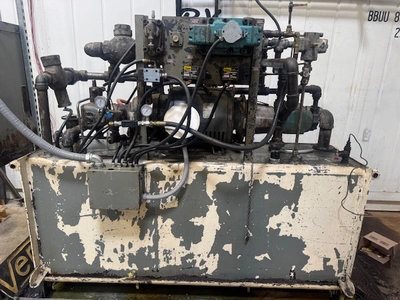

-hydraulic pump and reservoir have been removed from the crown and placed on the ground adjacent to the press. The hydraulic pump system and press systems are now effectively separate, connected systems.
