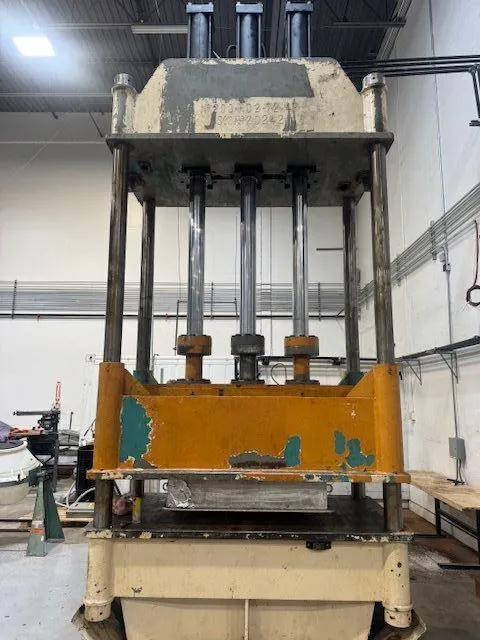

Verson 200 Ton Hydraulic Press
Have one to sell?
ConditionUsed
1 available
CAPACITY 200 TONS
MAX. STROKE 54"
DAYLIGHT TO BED - 26" MIN - 80" MAX
BED AREA APPROX. - 86" X 54" (RL X FB)
DISTANCE BETWEEN POST - 74" X 32" (RL X FB)
USABLE BED & RAM AREA - 74" X 54" (RL X FB)
CYLINDER SIZE - TWO 7" DIA. CYLINDERS
ROD SIZES - TWO 5.5" DIA. RODS
POST SIZE - 5.5" DIA.
FLOOR TO BED - 36"
PRESS CONTROLS VERSON CONTROLS
HYDRAULICS ABEX DENISON HYDRAULIC PUMP | PARKER VALVE D63W1B44Y
ELECTRICS 25 HP LINCGUARD LINCOLN MOTOR • 550V-3-60 | 27.5 AMP
OVERALL DIMENSIONS 132" X 61' (RL X FB) X 220" HIGH
