Mazak Integrex i-630V/6 CNC 5 Axis Machining Center (2022)
Sold

Mazak Integrex i-630V/6 CNC 5 Axis Machining Center (2022)

Multitasking Machining Centers
Manufacturer:
MAZAK
Model:
INTEGREX I-630V/6
Year:
2022
Stock #:
94277

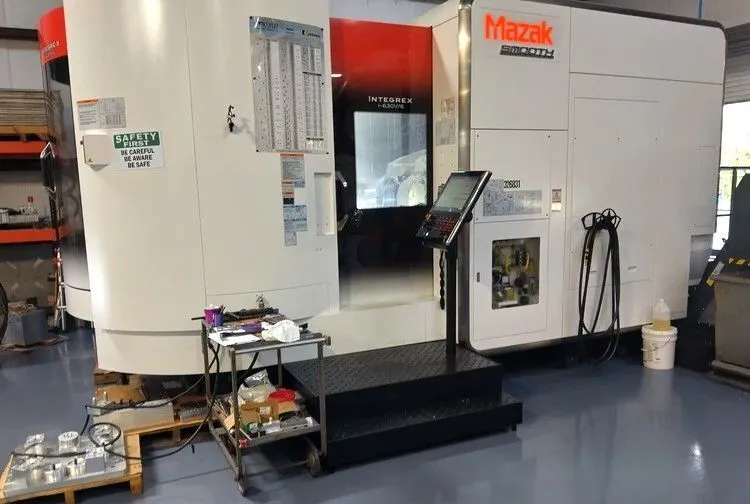

This low hour Mazak Integrex i-630V/6 CNC Multi Task Machining Center features dual tables, 50 hp, rapid traverse rates of 2,047 in/min across axes, 160-tool automatic changer, and advanced Mazatrol Smooth AI control. Ideal for precise multitasking operations. Equipped with various high-tech features and 1780 cutting hours.
X56.1"1,424.9 mm
Y41.34"1,050 mm
Z41.34"1,050 mm
Power50 hp37.3 kW
RPM15,000 RPM15,000 RPM
# ATC160160
Taper5050
# Axis55

Mazak Integrex i-630V/6 CNC Multi Task Machining Center (2022)

Number Of Tables / Pallets 2
Table Size - L 24.8"
Table Size - W 24.8"
Weight On Table 3,858 Lb
Main Spindle Horse Power 50 Hp
Main Spindle Speeds 15,000 Rpm
Main Spindle Taper 50
X - Axis Travel 56"
Y - Axis Travel 41"
Z - Axis Travel 41"
A - Axis Travel 150 Degrees
B - Axis Travel 220 Degrees
C - Axis Travel Table Indexing .0001
Rapid Traverse Rate - X 2,047 In/Min.
Rapid Traverse Rate - Y 2,047 In/Min.
Rapid Traverse Rate - Z 2,047 In/Min.
Vertical Turning Table Size, Number Of Tables 31.5
Vertical Turning Table Speed 550 Rpm
Vertical Turning Table Horse Power 50 Hp
Automatic Tool Changer 160
Tool Diameter 5.1"
Tool Length 20"
Tool Weight 66 Lb
Machine Weight 71,980 Lb

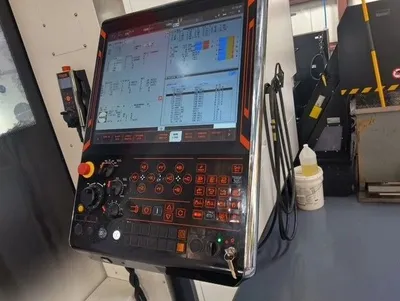

Control Cnc (Mazatrol Smooth Ai Control)

Mazatrol Smooth Ai Cnc Conversational Control
Spindle Chiller
Chip Conveyor
Renishaw Probing
Hand Held Mpg
250,000 In Tooling Included
Stairs And Platform Included
Mazak Api
Seamless Corner Control, Variable Acc Control, Super High Speed, Rapid Overlap
Program Memory Expansion, Automatic Operation Iss, Engraving, Solid Mazatrol
Path Error Surpress Control,
Eia, High Smoothing Control, Spiral, Eia 3d Comp, Rotation,Geometric, Scaling, Ext-Data I/O
High Speed, Shape Comp, Thread, Inverse Time, Auto Tlm
3-D Co-Or Rot., Auto Atlm, Polar Coordinate Input, Comparrison Stop
Spline, G54.1, Sync. Mill Tapping
G54.1, Sync. Tap, Flash Tool, Inch/Mm Convert
Sync Mill Tap, Rot-Axis Shape Comp, Goo Slope Const., Scale Feedback, Variable 600 Sets
Scale F/B, Cylinder & Polar C0-Or Int
Eia Helical Tap Cycle, Eia Pattern Cycle, 2nd Aux. Functions
Tilted Work Plane, Table Unbalance Detect, 5-Axis Tool Comp, Auto Pecking, Tool Center Point Control
Re-Thread, Program Memory Expansion, Mill Turn Mazatrol, 5-Axis Tool Length Comp,
Work Pos. Err. Comp., 5-Axis Spline
1780 Cutting Hours
