| Tonnage | 22 T | 19.958 t |
| # Turret Stations | 21 station | 21 station |
| Control | CNC | CNC |

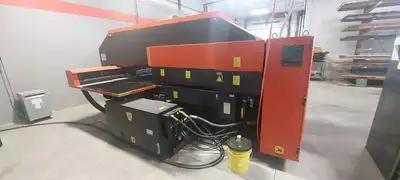

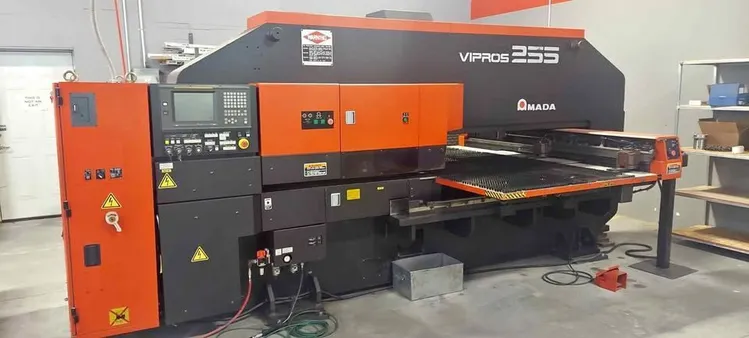

Amada Model Vipros 255 22 Ton CNC Turret Punch Press
Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM Capacity: 22 Ton
Max. Sheet Size with Repositioning: 50" x 100"
Axis Travels: 50" x 50"
Maximum Thickness (Mild Steel): .250"
Turret Configuration: Thick
Number of Stations: 31
Max. Ram Stroke: 1.575"
Linear Positioning Speeds: 2560 IPM (X), 1968 IPM (Y)
Max. Hole Diameter: 3.5"
Hit Rate @ 1" Centers: 340 SPM
Fanuc 18-P CNC Control
