| X Travel | 30" | 762 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT or BT 40 | CT or BT 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 4 | 4 |
Travels:
X-Axis: 30″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″
Table:
Length: 36.0″
Width: 18.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs
Spindle:
Taper Size: 40
Speed Range: 15000 RPM
Spindle Power: 30 HP
Max Torque: 90 ft-lb @ 2000 RPM
Automatic Tool Changer:
Capacity: 30
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (Adjacent empty): 5.0″
Max Tool Length: 11″
Tool Changing Time: 1.8 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 106″ x 101″ x 101″ High
Weight: 7800 lbs
• Haas Next Generation CNC Control

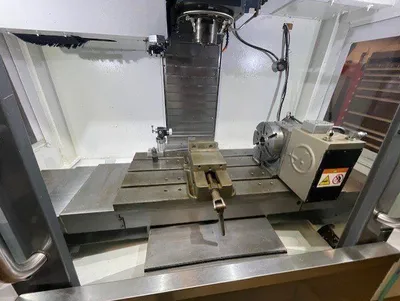

• 4th Axis Brushless Rotary and Drive Included
• 15000 RPM DIRECT DRIVE Vector High Speed Spindle with thru-coolant
• 30 HP High Torque Spindle Motor
• 30+1 Station Super Speed Side Mount Automatic Tool changer
• 1400 IPM Fast Rapid
• Renishaw Tool Probing
• Renishaw Work Probing
• High Speed Machining w/Lookahead
• Rigid Tapping
• Coordination Rotation and Scaling
• Haas Visual Programming System
• Macros
• Auxiliary Work Lights
• Ethernet

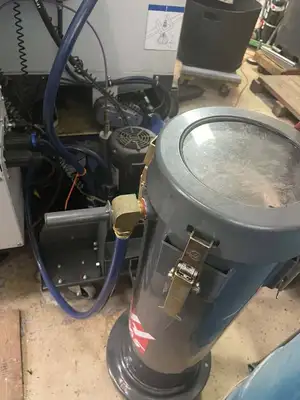

• Coolant System Oil Skimmer and HAAS Coolant Filter
• Chip Auger System

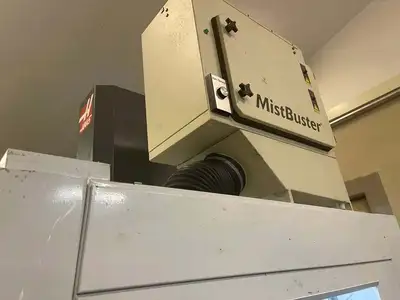

• Mist Filter: MistBuster 850 Hi-Efficiency Variable-Speed
