Hydmech S-20P Horizontal Band Saw
Have one to sell?
ConditionUsed
1 available

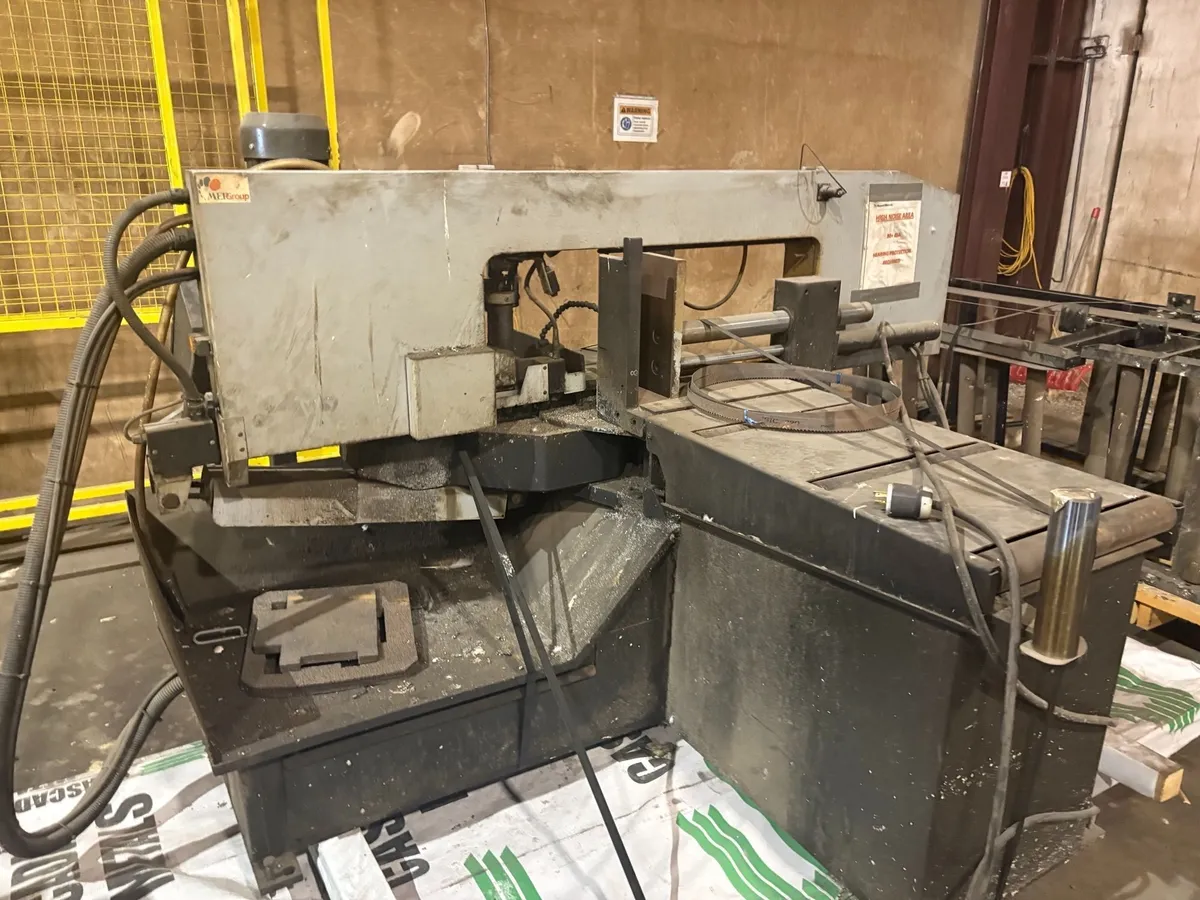

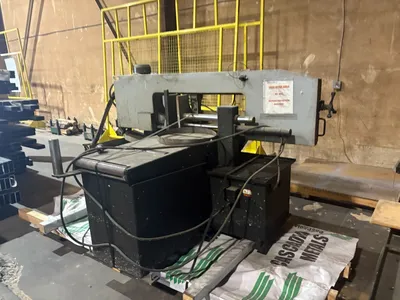

Used S-20P semi-automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications. Its digital LCD display shows machine mode, pieces cut, blade speed, blade tension, amperage draw of blade motor, cut duration, overall machine run time, and head position.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20P is a versatile semi-automatic scissor style band saw ideal for use in tight working spaces.
Hydmech S020P Horizontal Band Saw
Capacity Rectangular (h x w) Round
90° 13″ x 18″ 13″
45° 13″ x 10 3/4″ 12″
30° 13″ x 7 3/4″ 8 1/2″
Blade Size 1” x 14’ 10”
Blade Drive 3 HP VFD
Machine Voltage 480 v (all other voltages require optional transformer)
Blade Speed 45-330 SFM
Coolant Tank Capacity 6 Gallons
Work Load 5,000 lbs.
Machine Weight 2,500 lbs.
Table Height 31”
Dimensions (w x l x h) 92” x 75” x 52”
