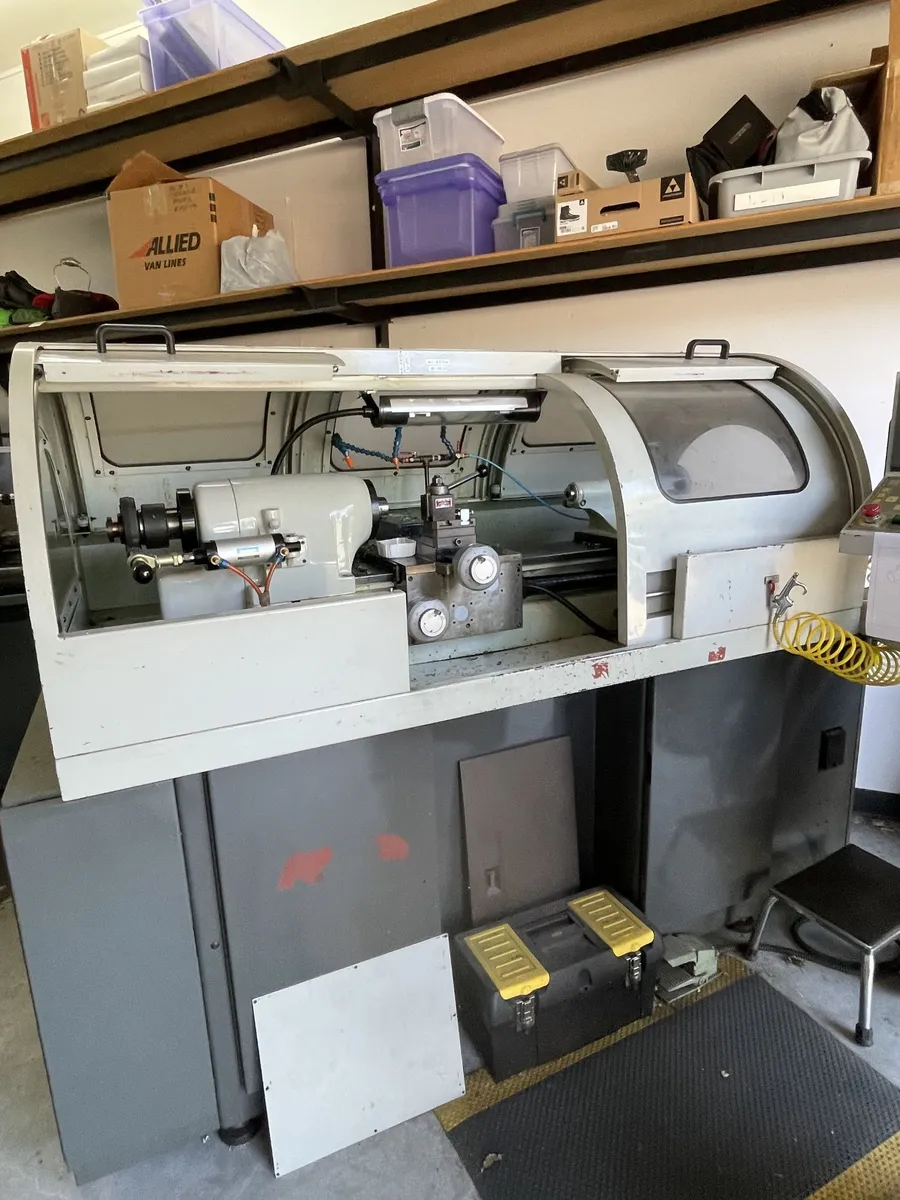

Eisen Model CT-1118 CNC Toolroom Lathe

Eisen Model CT1118 CNC Toolroom Lathe

Swing over Apron: 11”
Between Centers: 18”
Maximum Turning Diameter: 6”
Maximum Turning Length: 18”
Bar Stock Diameter: (5C Collet) Ø1 1⁄16”
Chuck Size: Up to Ø6”
Spindle Speed: 4000 RPM
Main Motor: 3 HP 2.23 kw
Hole through Spindle: .25"
Spindle Nose Taper: ID / OD 5C (10°) / 4° 5C (10°) / 4°
X Axis Feed: 6¼”
Z Axis Feed: 13½”
Rapids on X, Z: 787 IPM
X, Z Servo Motors: 0.4 HP
Precision Spindle Runout: ±0.000050”
Positioning Accuracy: ±0.000078”
Positioning Repeatability: ±0.000078”
Tailstock Spindle Taper: MT#2
Tailstock Spindle Travel: 3.7”
