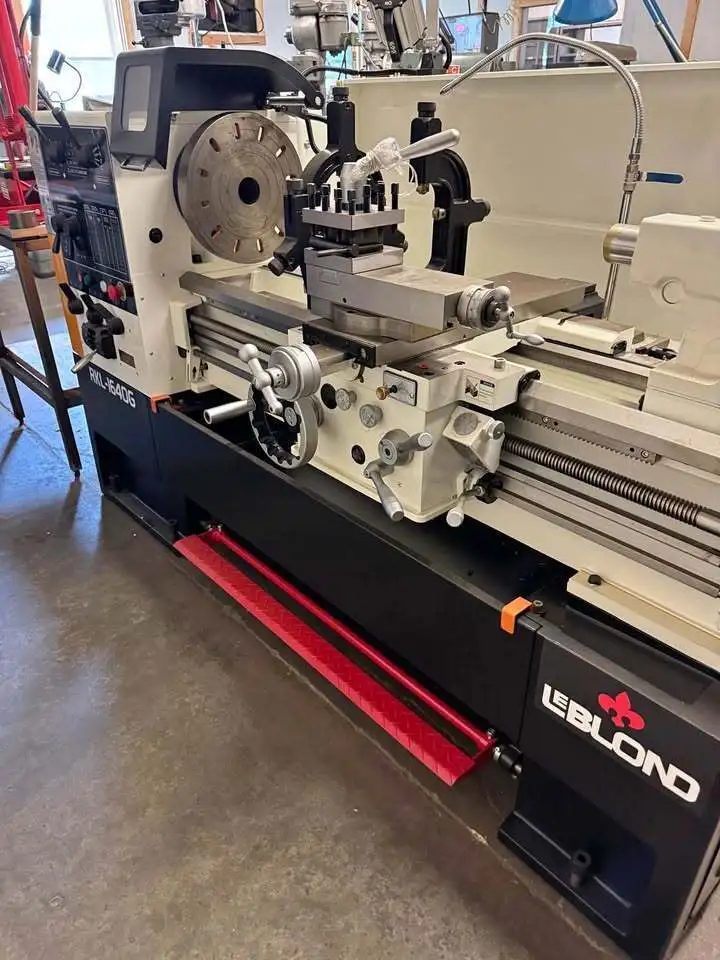

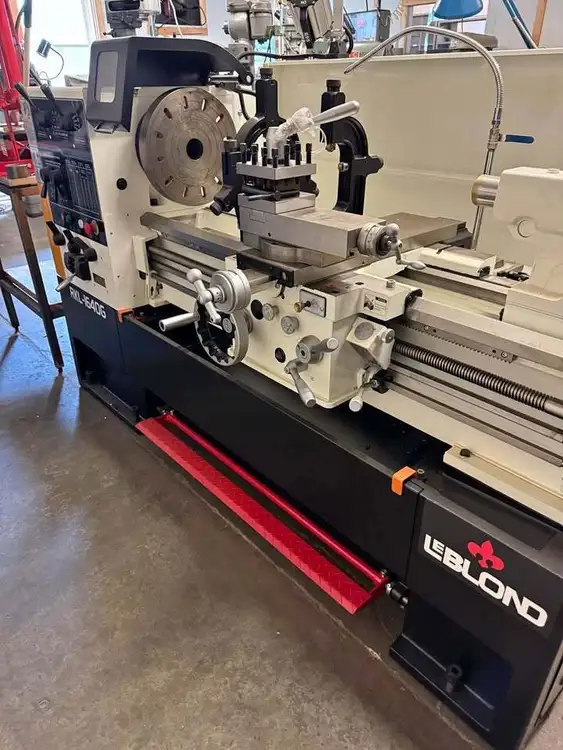

Leblond RKL-1640G Engine Lathe

Swing over bed: 16.14 inches
Distance between centers: 40 inches
Swing over cross slide: 10.3 inches
Swing in gap: 22.95 inches
Cross slide travel: 9.84 inches
Top slide travel: 5.9 inches
Bed width: 10.236 inches
Spindle bore: 3.149 inches
Spindle nose: D1-8 cam-lock mount
Lead screw diameter: 1.25 inches with 4 TPI pitch
Inch threads: 45 selections from 2 to 72 TPI
Metric threads: 39 selections from 0.2 to 14 mm
Modular threads: 18 selections from 0.3 to 3.5
Diametral threads: 21 selections from 8 to 44
Longitudinal feed: 0.0015 to 0.04 inches per revolution
Cross feed: 0.00075 to 0.02 inches per revolution
