| size | 15" Chuck | 15" Chuck |
| Swing | 34.5" | 876.3 mm |
| Machining Length | 44.02" | 1,118.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 55 hp | 41 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

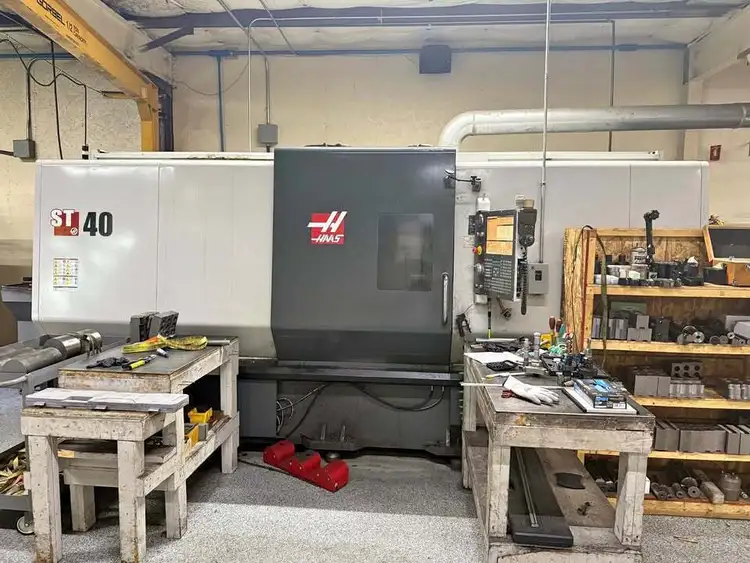

Haas ST-40 2 Axis CNC Lathe (2012)
Over Front Apron 34.5"
Over Cross Slide 25.5"
Over Tailstock 25.5"
Capacities:

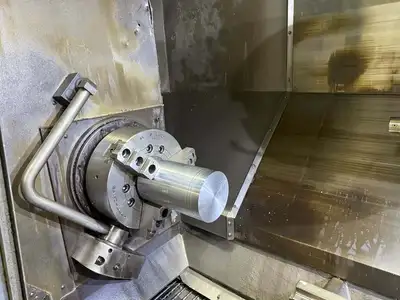

Chuck Size 15"
Max. Cutting Diameter (varies with turret) 25.5"
Max. Cutting Length (without workholding) 44"
Bar Capacity 4.0"
Travel & Feedrates:
X Axis 17"
Z Axis 44"
Rapids on X 710 in/min
Rapids on Z 320 in/min
Max Thrust X 5500 lb
Max Thrust Z 9,000 lb
Spindle:
Max Rating 55 HP
Max Speed 2400 RPM
Spindle Nose A2-9
Spindle Bore 4.62"
Turret:
Number of tools 12 Stations
OD vs ID Tools (Any combination) Will Vary With Turret Style
Boring Bar Rear Clearance (form back of turret) 4.37"
General:
Air required 4scfm, 100 PSI
Coolant capacity 120 Gal
15" Chuck, 55 HP, Tailstock, Jorgensen Chip Conveyor, Tool Presetter
