| size | 15" Chuck | 15" Chuck |
| Swing | 34.5" | 876.3 mm |
| Machining Length | 44.02" | 1,118.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 55 hp | 41 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 25.5" | 647.7 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

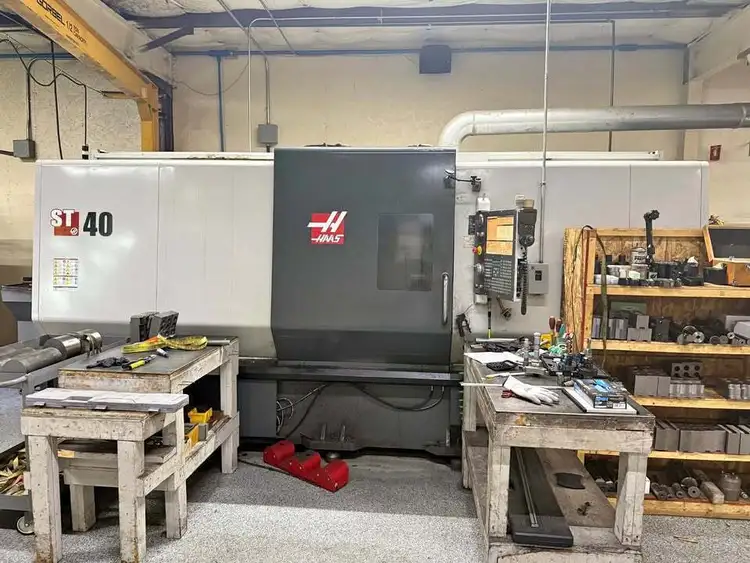

Haas ST-40 2 Axis CNC Lathe (2012)
Over Front Apron 34.5"
Over Cross Slide 25.5"
Over Tailstock 25.5"
Capacities:

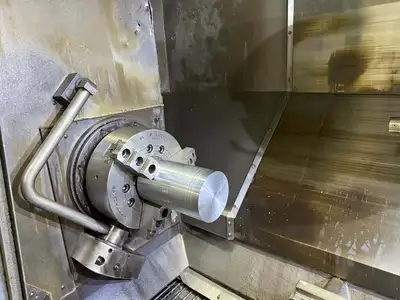

Chuck Size 15"
Max. Cutting Diameter (varies with turret) 25.5"
Max. Cutting Length (without workholding) 44"
Bar Capacity 4.0"
Travel & Feedrates:
X Axis 17"
Z Axis 44"
Rapids on X 710 in/min
Rapids on Z 320 in/min
Max Thrust X 5500 lb
Max Thrust Z 9,000 lb
Spindle:
Max Rating 55 HP
Max Speed 2400 RPM
Spindle Nose A2-9
Spindle Bore 4.62"

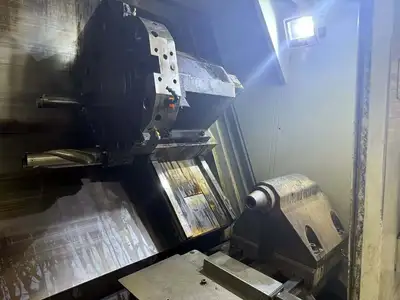

Turret:
Number of tools 12 Stations
OD vs ID Tools (Any combination) Will Vary With Turret Style
Boring Bar Rear Clearance (form back of turret) 4.37"
General:
Air required 4scfm, 100 PSI
Coolant capacity 120 Gal
15" Chuck, 55 HP, Tailstock, Jorgensen Chip Conveyor, Tool Presetter
This equipment has been sold. Similar equipment available now is shown below.
