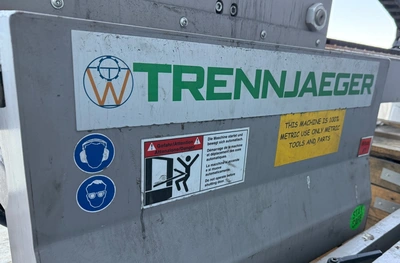

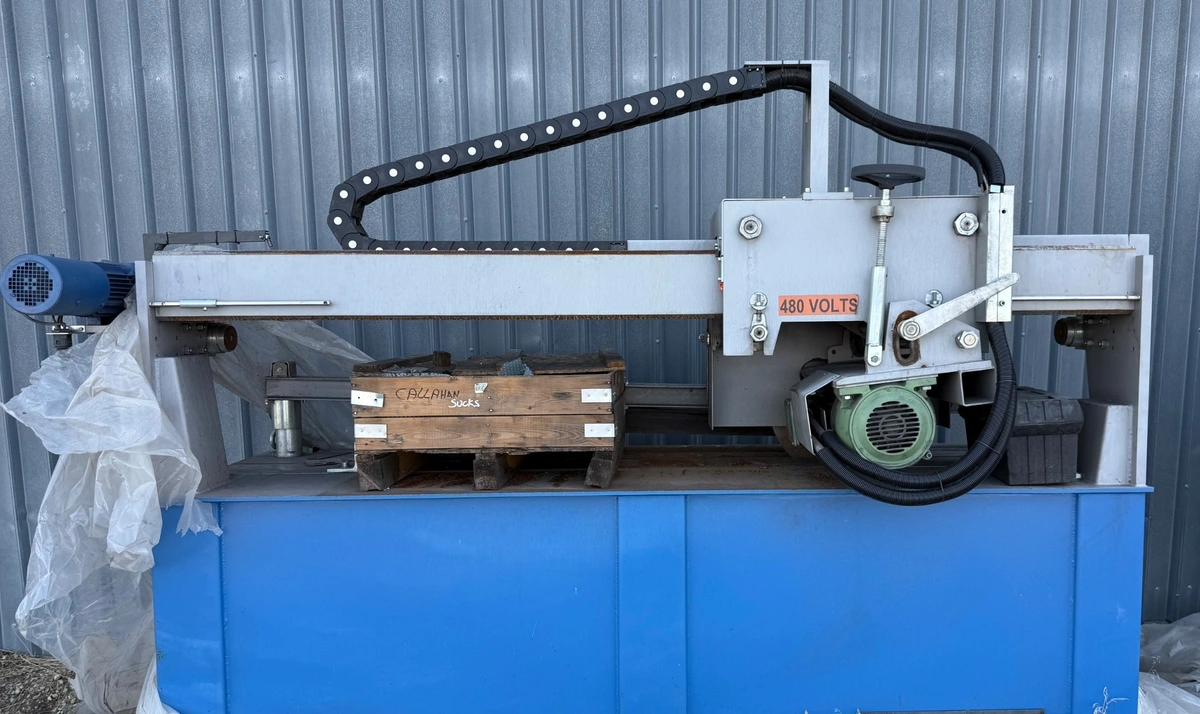

Trennjaeger Wagner UNI 9-25-1550 Cut Off Saw (2020)

Trennjaeger Wagner UNI 9-25-1550 Cut Off Saw (2020)

Powerdrive saw motor 25 kW (optional 37 kW)
• Support rod separation 16 - 68 mm
• Support rod thickness 2- 5 mm
• Cross rod separation 24-101 mm
• Saw length 1,050 / 1,550 mm
• Saw blade thickness 3.0 / 3.5 / 4.0 mm upon
individual request
• PROMA steel separation sheet 520 x 40 mm
with 300 teeth
• Grate height 20-80 mm
• Mat length 200-6,100 mm
• Mat width 490-1,000 / 490-1,550 mm
• Mat weight 650 kg
• Dimensions (LxBxH)
3,200 x 1,250 x 1,900 /
3,800 x 1,250 x 1,900 mm
• Weight 2,500 / 3,200 kg

For bar grating, sheet metal, thin profiles and radiators.
Capacity 3 1/8 x 60"

Available in 1.0 meter an fully automatic versions.

· Made in Germany
· Machine stand of solid steel construction with solid, polished table.
· Hydraulic height adjustment of cutting head for optimal cutting.
· Moveable cutting head on steel gantry guided with 8 rollers on both sides of the frame.
· Electro-mechanical feed with stepless servo drive system
· Separate electrical cabinet with separate moveable control for all functions and for semi-automatic cutting.
· Electronic brake for rapid stop of cutting blade.
· Pneumatic clamping on left side of cutting blade.
· No coolants required.
· 50 hp motor standard 400v 3 Phase AC
