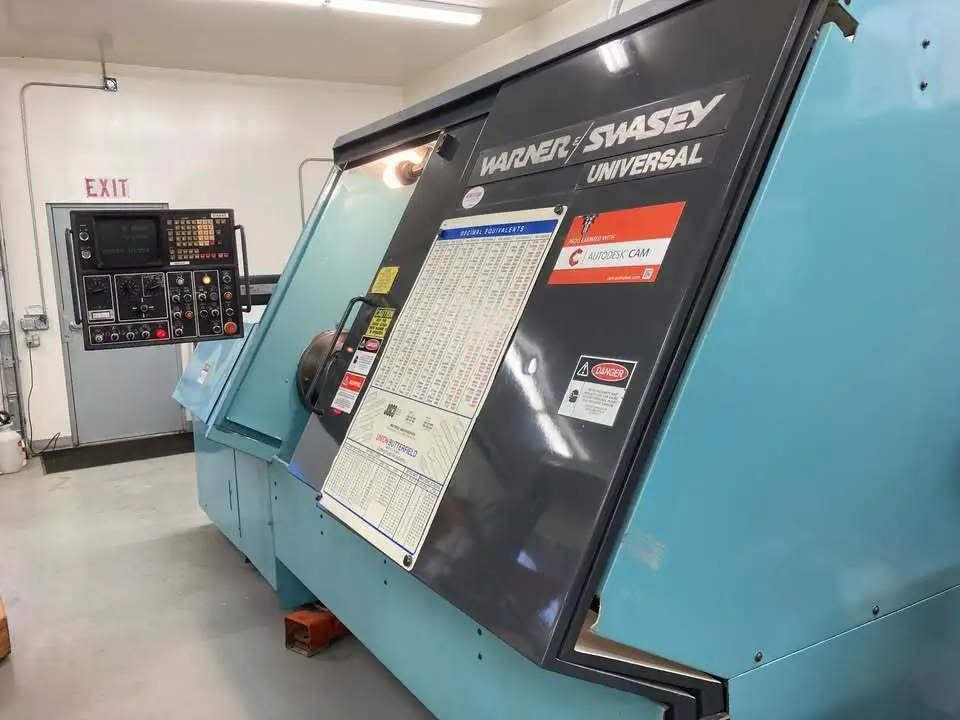

Warner Swasey WSU-12 Universal CNC Lathe

Warner Swasey WSU-12 Universal CNC Lathe

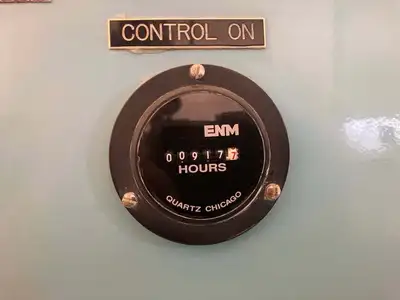

Like New machine: 917.7 original hours...

Max Swing Over the Slant Bed ........................... 26"
Max Swing Over Carriage ................................ 15"
Max Tailstock Position ................................. 43.38"
Max Programmable Center Distance ........................ 40"
Max Machinable Center Distance ......................... 40"
Cross Travel (X-Axis) .................................. 14.13"
Longitudinal Travel (Z-Axis) ........................... 42.76"
Tool Positions ......................................... 12
Spindle Bore ........................................... 3"
Spindle Nose ........................................... A2-8
Feed Range (Infinitely Variable) ....................... 0-200 IPM
Rapid Traverse Rate .................................... 0-400 IPM
Spindle Speed Range .................................... 43-3000
Spindle Drive Motor .................................... 30 HP
Weight: 22,500LBS
Length:17' 3"
Width: 7' 3"
Height: 7'
