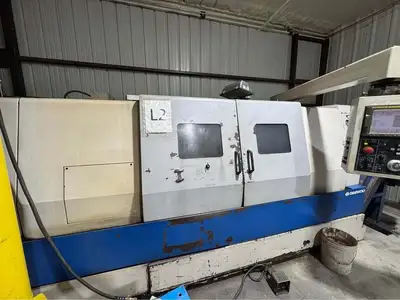

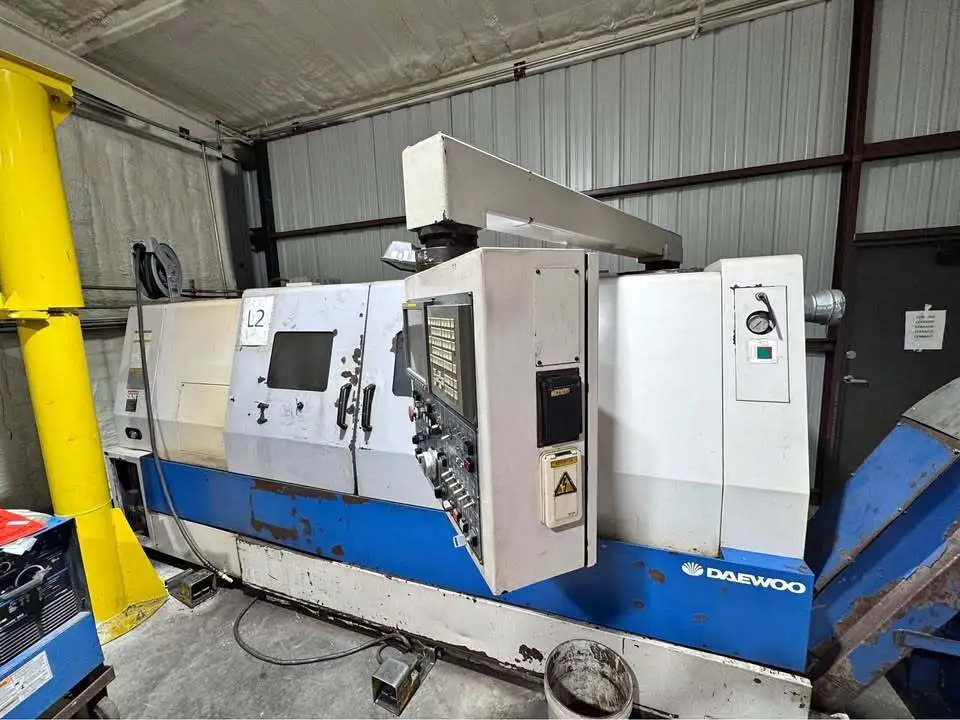

Daewoo Puma 300LC CNC Lathe (2000)

Doosan Model Puma 300LC CNC Slant Bed 2 Axis CNC Lathe
Swing over bed: 23.0"
Swing over carriage: 14.5"
Distance between centers: 52.8"
Maximum turning diameter: 15.7"
Maximum turning length: 50.6
SPINDLE:
Spindle speed: 28 - 2,800 RPM
Spindle nose: A2-11
Draw tube: I.D.4.05"
Spindle bore diameter: 4.53"
A.C. Spindle Motor: (30 min.)35 (2 speed gearbox)
Maximum spindle torque: 884 ft-lbs
BED, SADDLE, & CROSS SLIDE:
X axis travel: 11.1
Z axis travel: 52.4
Angle of slant bed: 45 degrees
X / Z axis guideway span: 12.6 / 15.0
Tailstock guideway span: 10.4
X / Z axis rapid traverse rate: 630 IPM / 945 IPM
X / Z axis ball screw diameter: 1.3" / 1.6
Maximum feed thrust: (X / Z) 3,040 lbs / 4,480 lbs
X axis repeatability+: 0.00006"
Z axis repeatability+: 0.00008

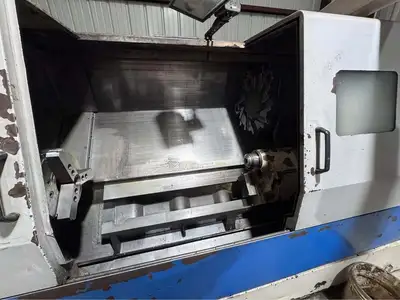

TURRET:
Number of tools: 10
Turning tool shank size: 1.0"
Boring bar diameter: 2.0"
Turret index time (next station): 0.15 sec.
Tool selection Bi-directional
Turret index repeatability: + .0005 degree
TAILSTOCK:
Tailstock quill diameter: 3.9"
Tailstock quill stroke (programmable): 3.9"
Tailstock quill thrust (maximum): 2,010 lbs
Tailstock spindle taper MT#4: built-in
Floor space (Length X Width): 162 x 75
Net weight (approx.): 15,545 lbs
