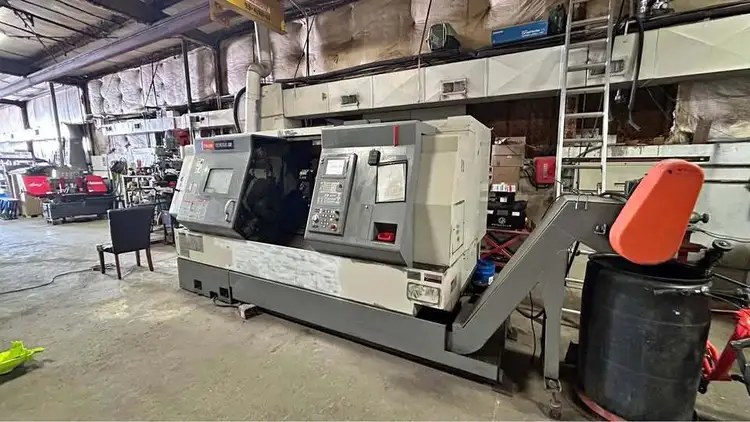

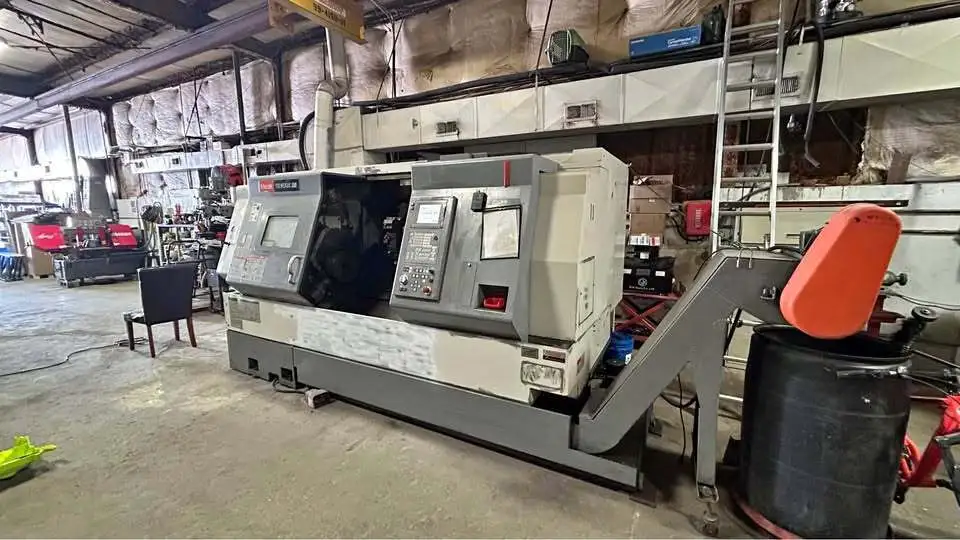

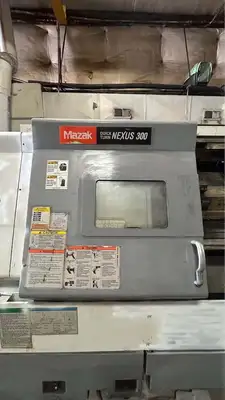

Mazak Quick Turn Nexus 300 CNC Lathe (2003)

Max Swing: 25.59”
Max Swing Over Carriage: 16.5”
Max Turning Diameter: 16.5”
Max Turning Length: 25.74”
Bar Work Capacity: 3.03”
X - Axis Travel: 8.85”
Z - Axis Travel: 26.77”

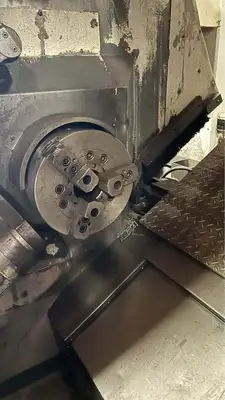

Chuck Size: 12”
Spindle Speed: 10”
Spindle Speed: 4,000 RPM
Spindle Nose: A2 - 8
Spindle Bore: 88 MM

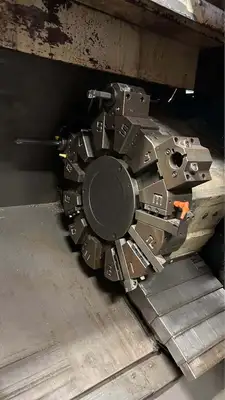

Turret Type: 12 Position Drum Turret Bolt On
Number of Tools: 12
Turning Tool Shank: 1”
Boring Bar Shank: 1.574”
Turret Index Time: 0.2 Seconds 1 Step
Rapid Traverse Rate X - Axis: 1181 IPM
Rapid Traverse Rate Z - Axis: 1181 IPM
Tailstock Stroke: 25.39”
Tailstock Taper: MT #5
Main Spindle Motor: 35 HP / 30 Min
Main Spindle Motor: 30 HP / Continuous
Coolant Pump Motor: 0.52 Kw
Continuous Power Cap. Rating: 43.3 Kva
Coolant Tank Capacity: 55.47 Gallons
Machine Dimensions: 118.3” X 80.71” X 78.74” H
Machine Weight: 14.550 LBS
