Stamtec G1-45-S Gap Frame Press (1995)
Have one to sell?
ConditionUsed
1 available
49 Ton, 3.15" Stroke,

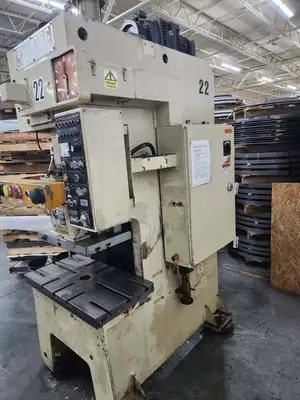

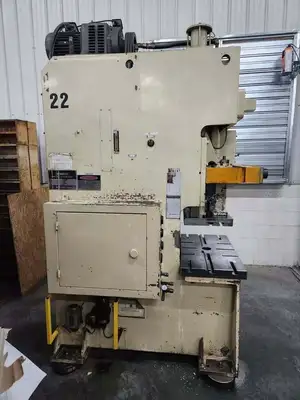

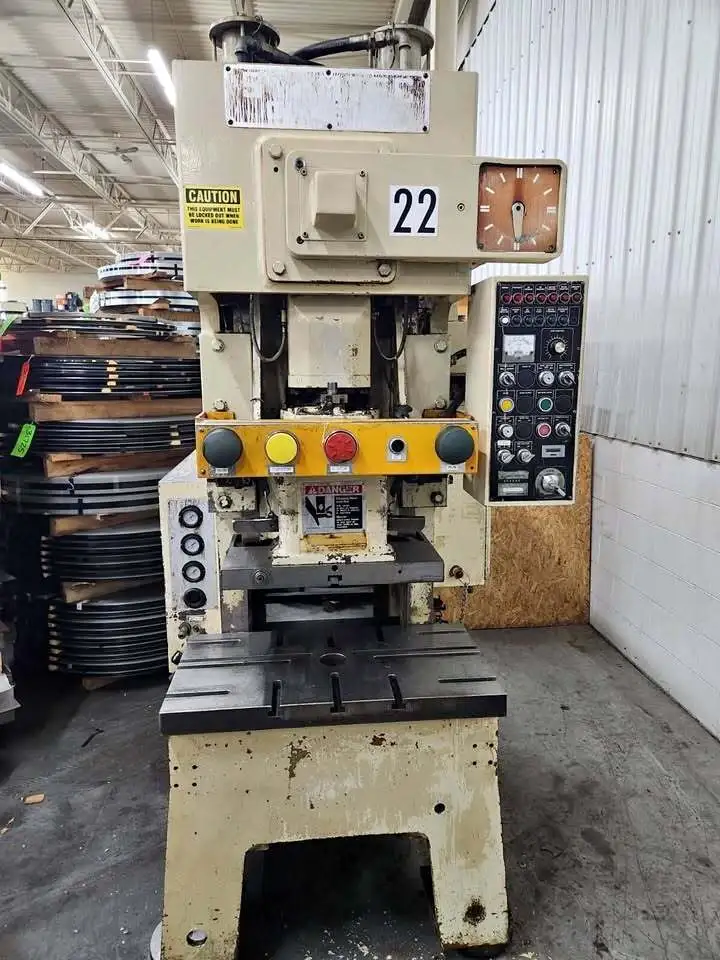

Stamtec G1-45-S Gap Frame Press (1995)
Capacity: 49 TON
Stroke: 3.15"
Shut Height Over Bed: 13"
Slide Adjustment: 2.36"
Bed Area: 33.5" L-R x 17.5" F-B (T-Slotted
Slide Face Area: 16" L-R x 12" F-B (T-Slotted)
Opening Through Back: 19.75"
Throat Depth: 9"
Bed Height From Floor: 28"
Speed (variable): 40-100spm
Air Clutch and Brake with Selector Controls
Welded Steel Frame Construction
Knock Out System/Bar
Hydraulic Overload Protection
T-Slotted Bolster Plate (3.6" Thick)
(2) Air Counterbalance Cylinders to Slide
Stroke Position Indicator
Automatic Lubrication System
5 HP AC Main Drive Eddy Current Motor
Electric Controls
Dual Palm Button Operation
Inch, Single, and Continuous Operation Selector
Part Counter
Air Ejector
Approximate Dimensions: 72" L-R x 55" F-B x 106" H
Approximate Weight: 7,000 LBS
Serial #: 0360
Year: 1995
