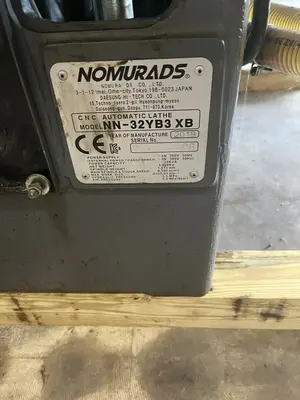

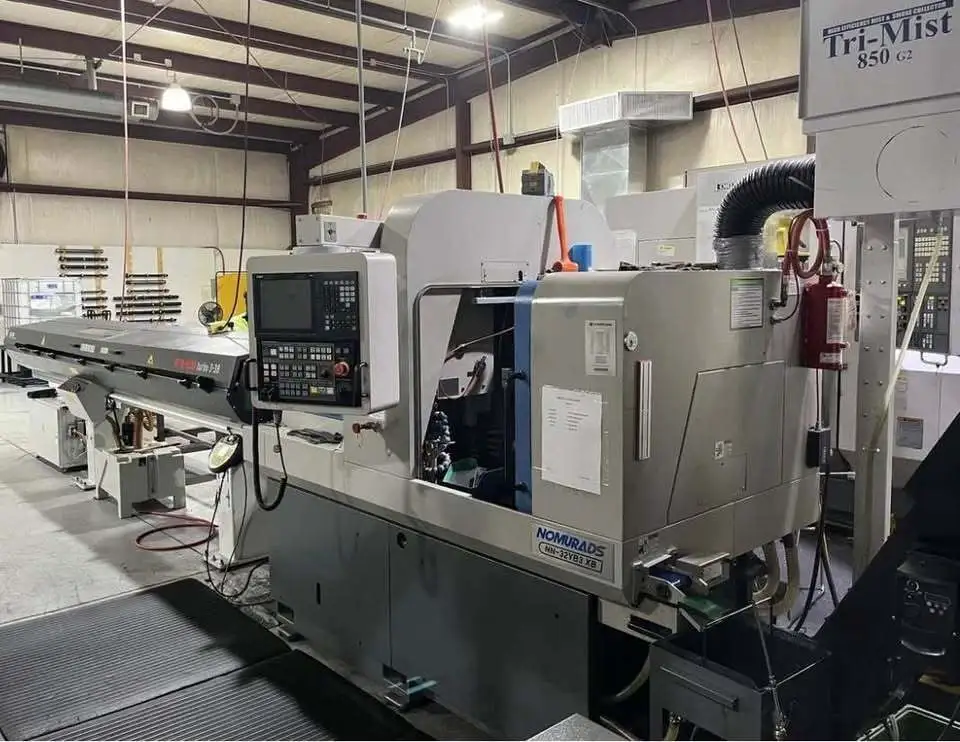

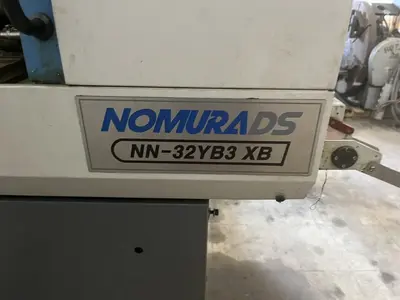

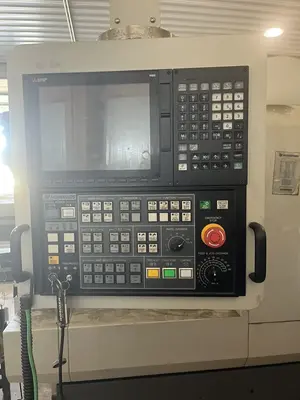

Nomura NN32YB3 CNC Swiss Type Lathe (2019)
Have one to sell?
ConditionUsed
1 available
32MM
Nomura NN32YB3 CNC Swiss Type Lathe (2019)
Max. machining diameter 32mm
Max. machining length 190mm /1chuck
Max. parts unloading length 93mm
Main spindle through-hole diameter Ф37mm
Spindle rpm (Main/Sub) Max. 8,000rpm
Sub spindle chucking diameter 3200
Max. number of tools 39
Max. machining drill Ф13mm
Max. machining tap M 10
O.D. tool 6 (□16X150mm max)
I.D. tool (6(ER16x5+OP5tools) + (ER20x1+OP1tools)
Cross drill (B axis)
Cross drill rpm 6000
Rapid feed rate X1 : 20/min X2 : 25m/min Z1,Z2,Y1,Y2 : 28m/min
Min. command unit 0.0001mm
C axis Min. command unit (Main, Sub) 0.0001°
Main spindle motor 5.5/3.7kW
Cross drill motor 1.5
Sub spindle motor3.7/1.5kW
X1.Y1,Z1,X2.Y2.Z2 axis feed motor
Coolant pump (Main, Sub)1.0kW

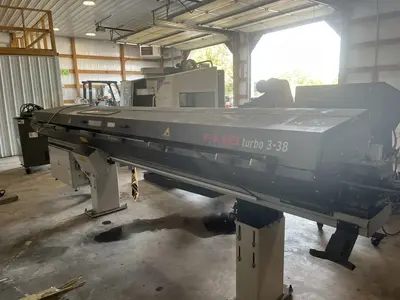

Barfeed
Mist Collector
Sub : Chuck sleeve /Spring/Spindle cap(1set)
Automatic power turn-off device
Automatic oiling device (level detector attached)
Cutting oil device (Main/Sub)
Coolant failure detector(Main/Sub)
Automatic fire extinguisher
Rear ejection unit (Ф24mm or less)
Spindle tube liner for small part
Large-sized lubricant pump 1.8ℓ

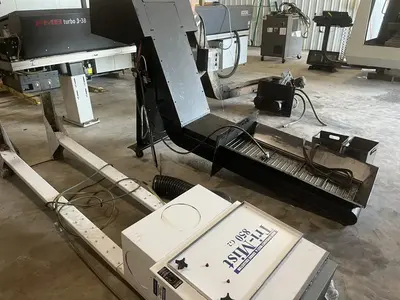

Chip conveyor & Chip box
Medium / High pressure coolant
Long drill holder
Fixed guide bush
Tap breakage detector (Main, Sub)
Tool presetter
Tool air blow
