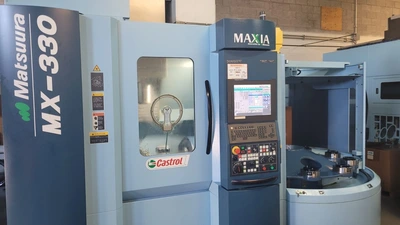

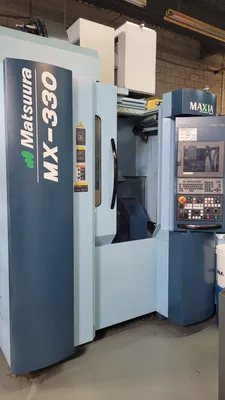

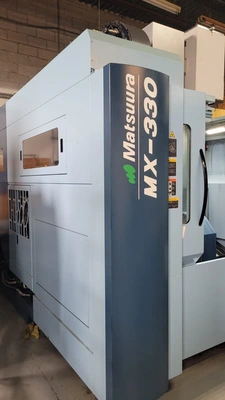

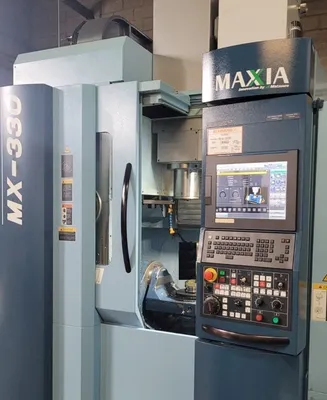

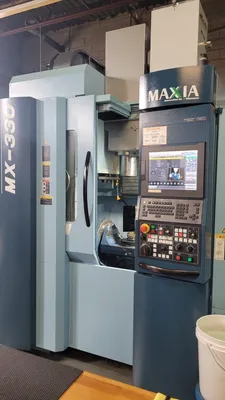

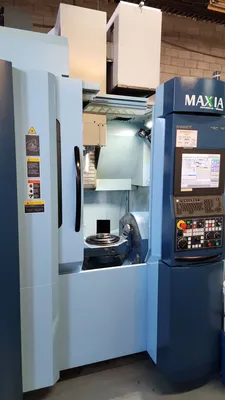

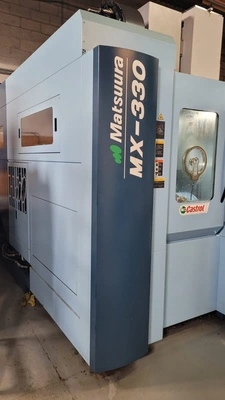

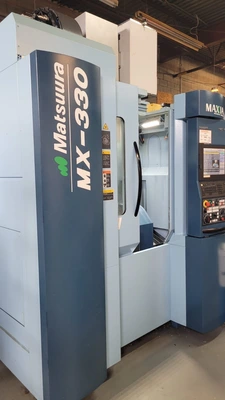

Matsuura MX-330 5X PC 10 5 Axis Vertical Machining Center (2020)
Sold

Matsuura MX-330 5X PC 10 5 Axis Vertical Machining Center (2020)

Machining Centers, 5 Axis
Manufacturer:
MATSUURA
Model:
MX330 PC10
Year:
2020
Stock #:
94174
This barely used Matsuura MX 330 5 X Series guarantees high rigidity, a generous machining envelope and provides excellent operability by allowing rapid set-up and processing of complex parts. The MX Series offers an assortment of configurations, which are ideal for all applications, all industries and all materials. Matsuura has the only high-quality entry level 5-axis machines on the market with OEM automation solutions integrated from the outset. The Matsuura MX Series—high-quality, 5-Axis at an investment level that will surprise you.5 Axis
X18"457.2 mm
Y17"431.8 mm
Z22"558.8 mm
# Axis55
RPM20,000 RPM20,000 RPM
# ATC9090
Taper4040
ControlCNC (Matsuura G-Tech 31i)CNC (Matsuura G-Tech 31i)
Weight1400014000

Matsuura MX-330 5X PC 10 5 Axis Vertical Machining Center (2020)

Max Work Size Mm (In) Ф330 × Н320 (Ф12.99 X H12.60)
420 × H320 (Ф16.54 X H12.60) *With Conditions
Ф330 × Н300 (Ф12.99 X H11.81)-Pc10
Working Surface Mm (In) Ф250 (Ф9.84) - Standard
Loading Capacity Kg (Lb)
Tool Taper
Number Of Tools 90
40 Taper
90: 40 Taper CAT Big Plus
Spindle Speed Rpm 20000
Travel (X/Y/Z) Mm (In)
Travel (A/C)
Rapid Traverse (X/Y/Z) M/Min (Ipm)
Rapid Traverse (A/C) Minnc System
Industries
435/465/560 (17.13/18.31/22.05)
-125~+10/360
40 (1,574.80)
17/33
Coolant Pressure: 300 Psi

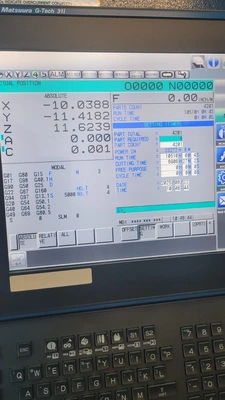

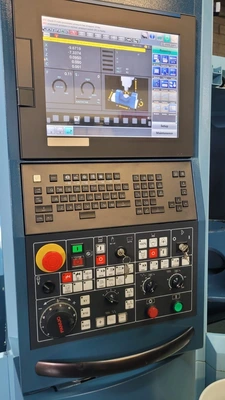

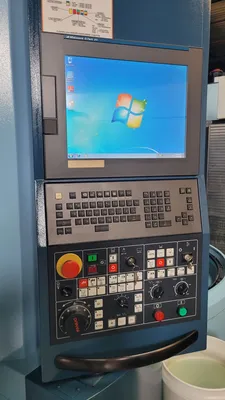

Matsuura G-Tech 31i
Automotive And High Performance, Die / Mold, Medical

Matsuura G-Tech 31i

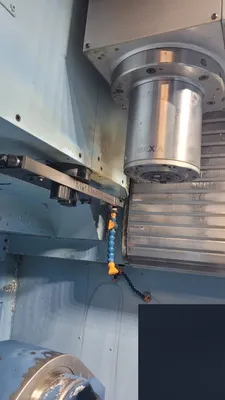

20 000 Rpm Air/Oil Spindle
90 Position Automatic Tool Changer

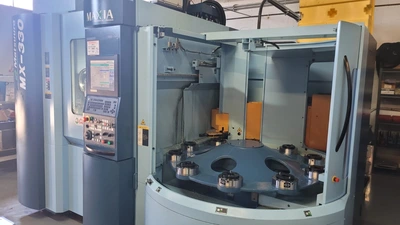

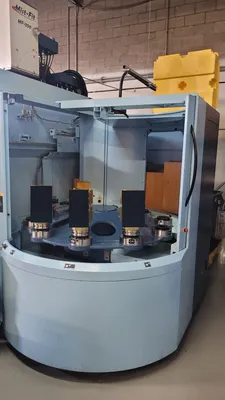

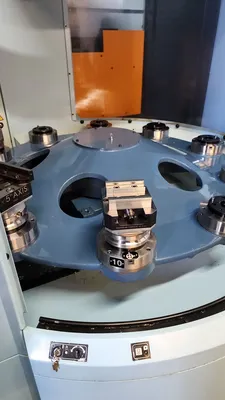

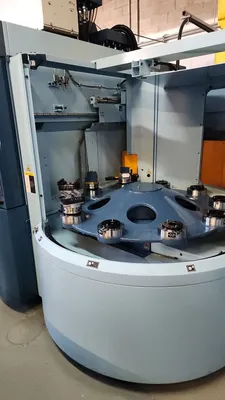

10 Position Automatic Pallet Changer
LNS Turbo Micro-Hinge 250 Chip Conveyor with Rear Right Discharge
Tool Probe
Part Probe
Laser Measure
Mist Collector
Chip Auger
Thru Spindle Coolant 300psi
Air Dryer
Spindle: 20,000 Rpm, 15/25 Hp, 108 5 Nm, Cat-40 Big Plus
Matsuura/Fanuc Iz-2 High Speed, High Precision, 5 Axis Package
Ez-5 Kinematic, With Calibration Sphere
Environmental Thermal Compensation
Renishaw Nc-4 Laser Tool Breakage Detection tool Length Measurement
Renishaw Omp-60 In Process Measurement Probe
High Pressure NOP Coolant Pump At 300 Psi With 20 Microns Filtration
Aeroex Mist-Fit 350 Oil Mist Extractor
Complete Simulation and Verification Software

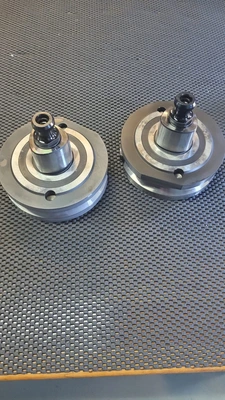

Four (4) Additional Mx330 Pc 10 Pallets
