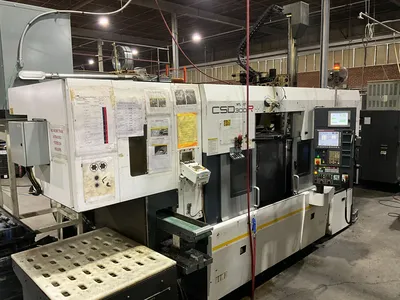

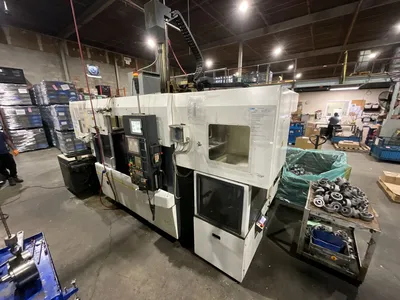

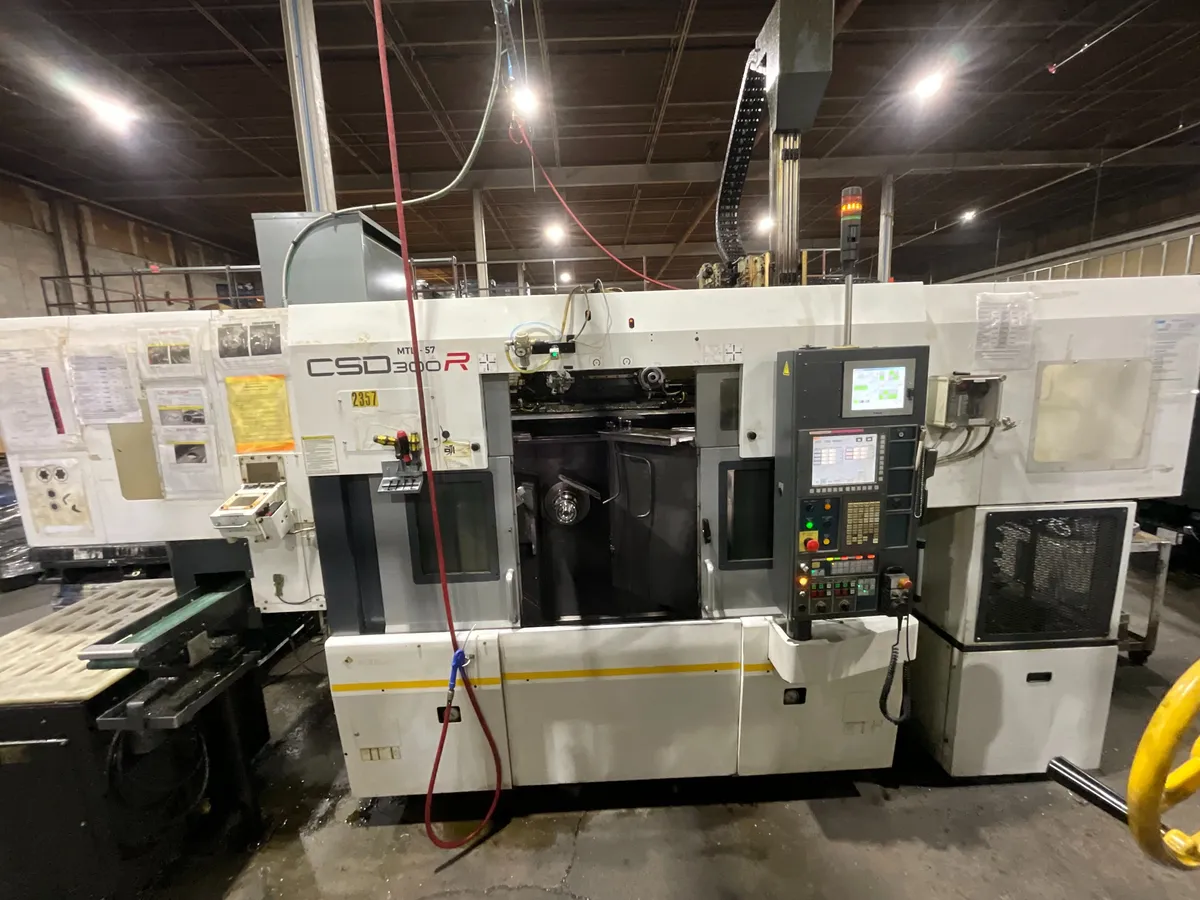

Fuji CSD-300R Twin Spindle CNC Lathe (2017)
Have one to sell?
ConditionUsed
1 available
13649 Run Hours, (2) Available. The CSD-300R Twin Spindle Lathe features parallel twin two spindle CNC lathes with both Z- and X-axis box way slides for heavy cutting, superior surface finish and longer tool life.
This series is equipped with Fuji-engineered hydraulic clamping gantry robot loaders to maintain tight tolerances.
Reliable automated heavy parts loading - 200mm x 100mm
(7.87 x 3.93 inch) and 5kg + 5kg capacity
8" - 10" workholding
Quick and accurate automated turning and handling of complex parts reduces labor costs and increases productivity
Turret capable of achieving speed of 0.26 sec/index.
Swivel control panel
Rear or optional side positioned discharge chip conveyor
Maintenance items are all conveniently located in one section of the machine
Fuji CSD-300R Twin Spindle CNC Lathe (2017)
Recommended Work Size 200 x 100 mm
Spindle Diameter 3100 mm
Spindle Nose A2-6
Spindle Bore 56 mm
Spindle Speed - rpm Max. 3630 (optional 4000)
Spindle Motor 11 / 15 kW
Slide stroke: X-axis 140 mm
Slide stroke: Z-axis - (ram traverse) 200 mm
Turret Tool Stations 10 + 10
Robot Controller FANUC
Footprint 2260 x 2150 mm

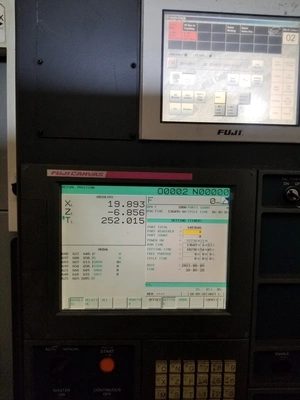

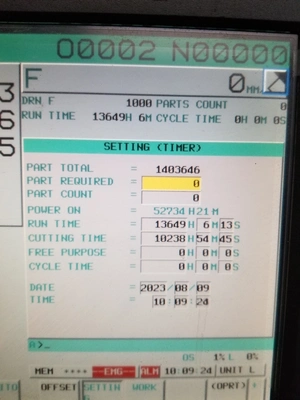

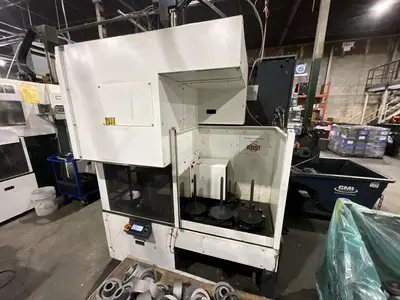

13649 Run Hours, Gantry Load and Stocker Table, (2) Available, Fuji Canvas CNC, Remote Jog Handwheel Manual Pulse Generator
