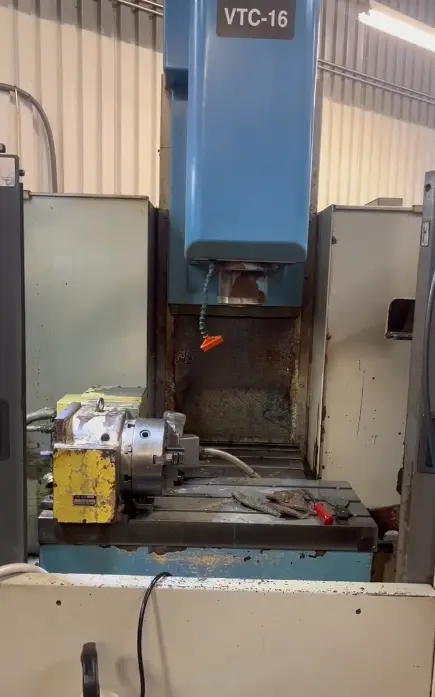

Mazak VTC-16A 4 Axis Vertical Machining Center

Mazak VTC-16A Vertical Machining Center

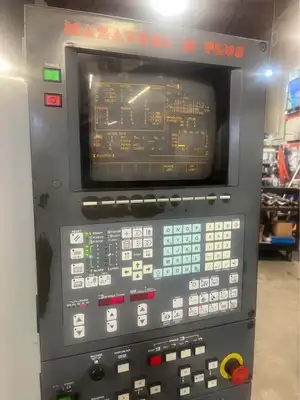

40 Taper, 24 ATC, 7,000 RPM, 15 HP, Mazak Mazatrol M-Plus CNC
Specifications and Equipment
Table area: 37.7" X 16.1"
Maximum weight on table: 1,210 Pounds
X-Axis travel: 22"
Y-Axis travel: 16.1"
Z-Axis travel: 20.1"
Rapid traverse to X and Y axes: 787 IPM
Rapid traverse to Z-axis: 590 IPM
Distance, spindle nose to table: 4.3" (min.) to 24.4" (max.)
Distance, spindle C/L to column: 18.1"
Taper in spindle: No.40
Spindle speeds: 60 to 7,000 RPM
Spindle drive motor: 7.5 / 15 HP (Continuous / Max. rating)
Automatic Tool Changer: 24 Tools
Maximum tool length for ATC: 13.7"
Maximum tool diameter for ATC: 4.33" (adjacent pockets empty)
Maximum tool weight for ATC: 13.7 Pounds
