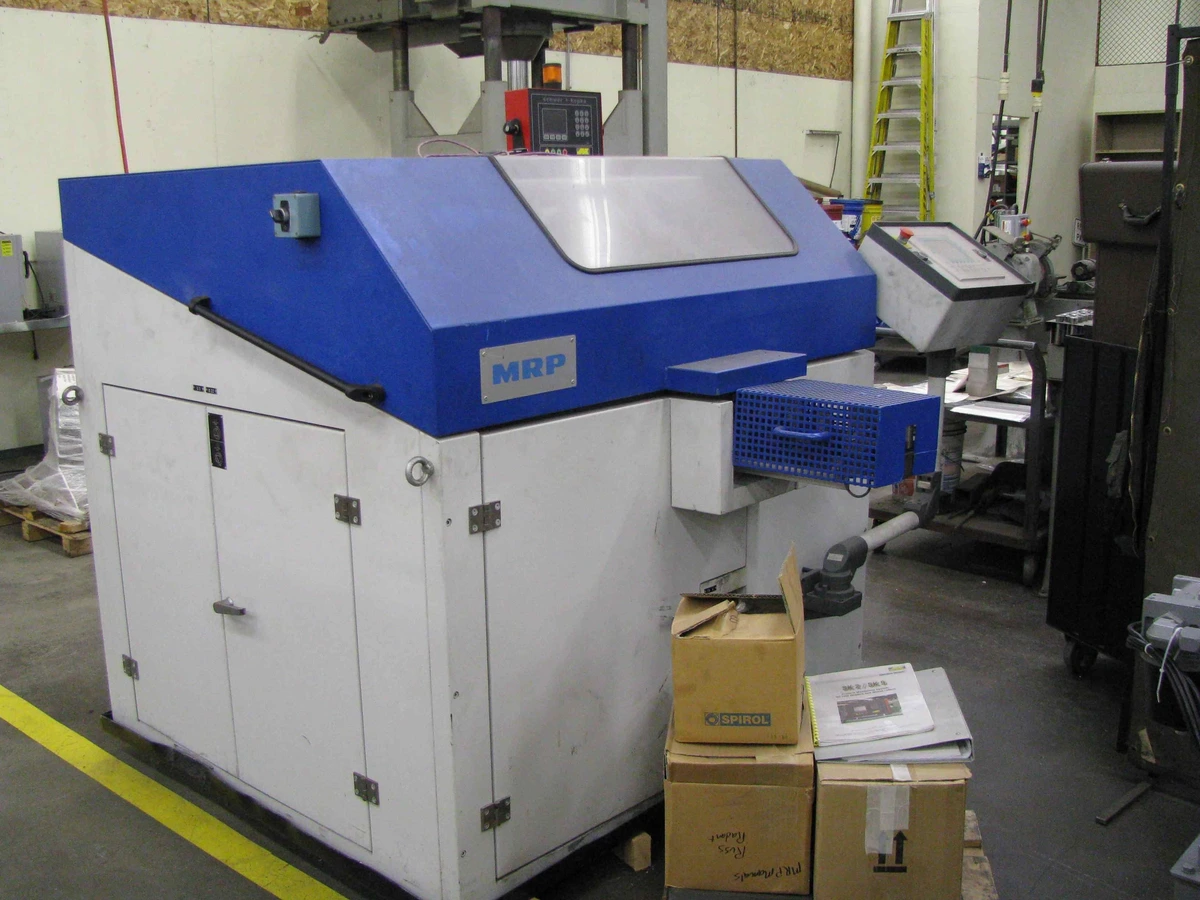

Wafios MRP Type JM 2 Bushes and Roller Machine (2008)
Have one to sell?
ConditionUsed
1 available
Used JM type MRP, manufacture closed bushes and
rollers maintaining extremely close tolerances. These machines
are used for the production of chains for bicycles and motorcycles,
control and conveying applications, as well as articulation
bushes, distance bushes and the like.
The JL, JM and JN machines all function on the special
Wafios MRP Type JM 2 Bushes and Roller Machine (2008)
Technical Data
Working range:
Bushes or rollers with strip width mm 10 – 30
at strip thickness mm 1,2 – 2,2
internal bush diameter mm 6,0 – 15,0
Bushes or rollers with strip width mm 5 – 13
at strip thickness mm 1,0 – 2,0
internal bush diameter mm 5,0 – 10,0
Tensile strength at max. strip cross section N/mm2 500
Output max. pcs/min. 180
Main motor kW 4,0 11,0
Machine weight approx. kg 1750
