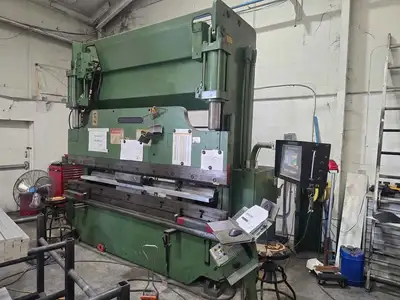

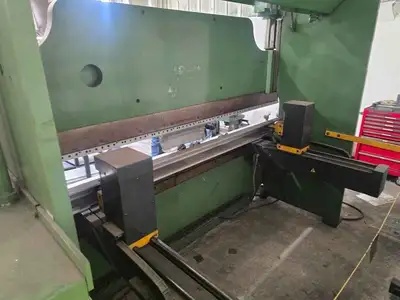

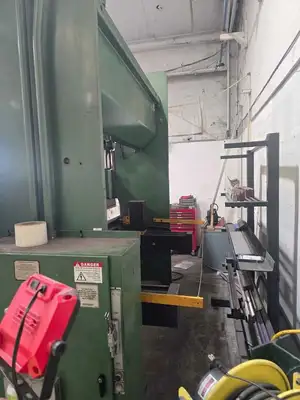

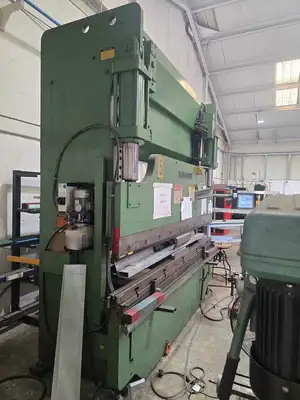

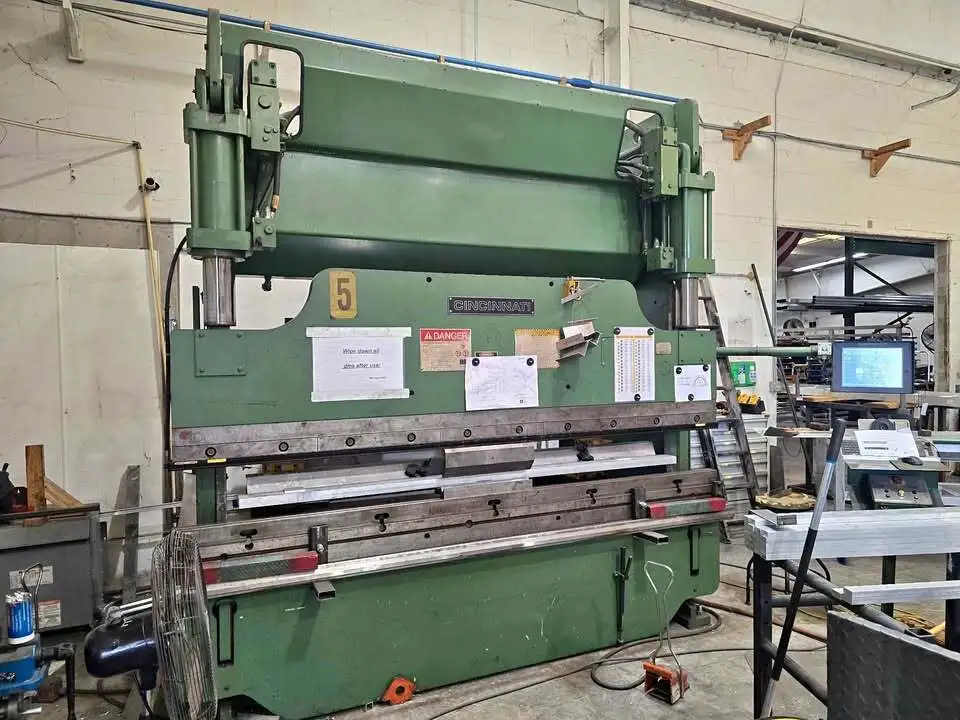

Cincinnati CB90II 90 Ton x 8' Press Brake (1999)
Have one to sell?
ConditionUsed
1 available
10' Overall, 8' Between Housings
Capacity - 90 Tons
Overall Length Of Bed & Ram - 10'
Distance Between Housings - 8' 6 3/4"
Stroke - 8"
Open Height - 15"
Closed Height - 7"
Throat Clearance - 7"
Approach - 260 Inch Per Minute
Return - 280 Inch Per Minute
Width at Top of Bed - 3 1/2"
Motor HP - 15
Approximate Weight - 17,000 LBS
Approximate Dimensions- 106.5" x 50" x 110"
Wila Hydraulic Clamping on Both Top and Bottom (American Style)
Full Touchscreen system - (On-screen programming, 3D Bend Simulation, and Part Design)
Wila and Wilson Tooling - At Additional Cost
