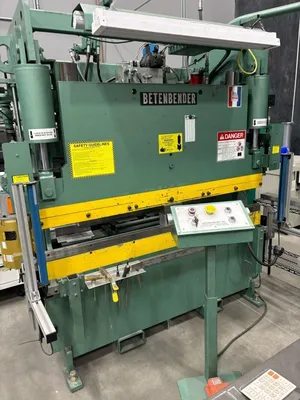

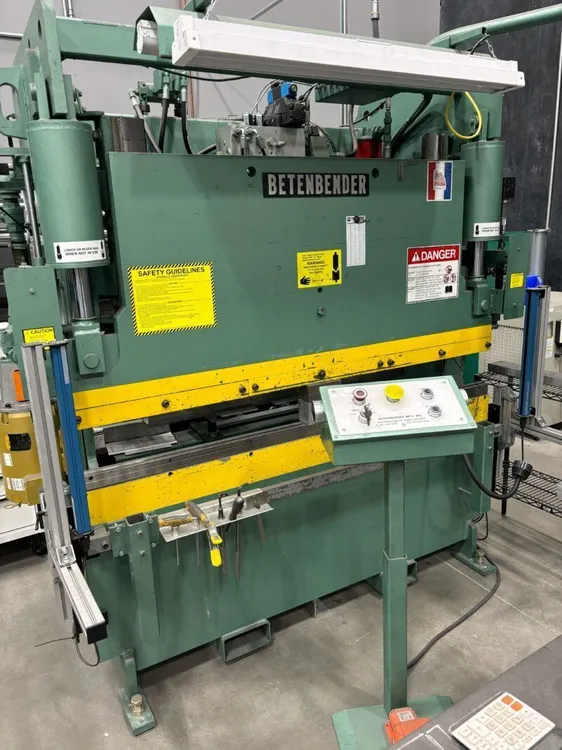

Betenbender 6-70 70 Ton x 6' Hydraulic Press Brake

Betenbender 6-70 70 Ton x 6' Hydraulic Press Brake

Motor: 10 hp, 230 Volt, Three Phase
Weight (May Vary): 8,000
Overall Width: 45"
Width of Bed: 4"
Width of Upper Machined Ram: 1 3/4"
Overall Height: 96"
Throat Depth: 8"
Open Height: 14"
Closed Height: 6"
Height of Bed: 28"
Overall Length: 87"
Distance Between Housing: 54 1/2"
Width of Upper Ram: 2"
Width of Upper End Plates: 36"
Press (IPM): 0-44"
Rapid Approach (IPM): 44"
Return to Open (IPM): 63"
2-Speed Electric Shift: Std.
2 Speed Ram (20T-70T)
3 Speed Ram (95T-1000T)
All Hydraulic Fluids Included
All Steel Construction
American Made Hoses and Fittings
American Made Valves and Motors
Bottom Time Delay
Clamp Type Backgauge- Manual Adjustable X, Y, & Z - 24”
Cylinders are Steel, Double Acting Piston Type with Hardened, Ground and Chromed Rods
Depth Stop with Digital Readout
Disconnect Switch
Front & Back of Bed Machined Smooth for Mounting of Gauges
Hardened Pins with Spherical Bearings for Alignment
Hour Meter
Hydraulic Pressure: 2500 psi
NEMA Electrics
Three Position Foot Switch by Linemaster
