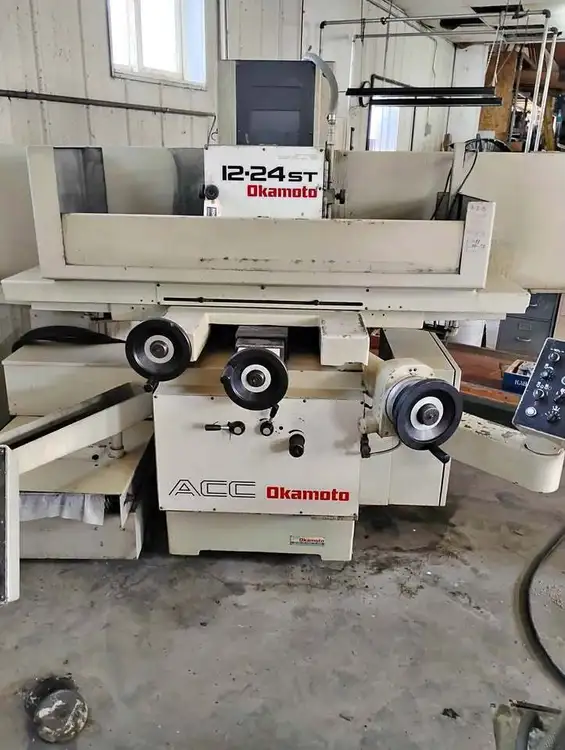

Okamoto ACC 1224ST Hydraulic Surface Grinder

Okamoto Model ACC 12.24ST Hydraulic Horizontal Surface Grinder
Grinding Capacity: 12" X 24"
Maximum Distance under Wheel to Table Surface:13.7" (12" Wheel)
Table Load Capacity: 925 lbs
Maximum Longitudinal Travel: 29.5"
Maximum Cross Travel: 29.5"
T-Slots: 0.7"
Longitudinal Table Movement
Hydraulic Feed: 1-82"/Min
Hand Reed per Revolution: 1.85"
Hydraulic Continuous Feed: 4-40 IPM
Hand Feed per Revolution: 0.250"
Handwheel Graduation 0.001"
Vertical Wheelhead Movement
Automatic Feed per Table Stroke: 0.0001" - 0.0015"
Automatic Feed over Saddle Reversal:0.0001" - 0.0015"
Hand Feed per Revolution: 0.025"
Manual Incremental Feed:0.001-0.0015"
Handwheel Graduation: 0.0001"
Rapid Feed: 16 IPM
Grinding Wheel
Grinding Wheel Size: 12" X 1.5" X 5"
Spindle Speed: 1800 RPM
Motors
Grinding Wheel Spindle: 5 HP
Hydraulic Pump: 2 HP
Vertical Rapid Feed & Downfeed: 0.5 HP
Hydraulic Tank Capacity: 26 Gallons
Height 70"
Dimensions 103" x74"
Weight 3,900 lbs
Equipped With
Kanetsu Model KESL-3060A 12" x 24" Electro Magnetic Chuck
