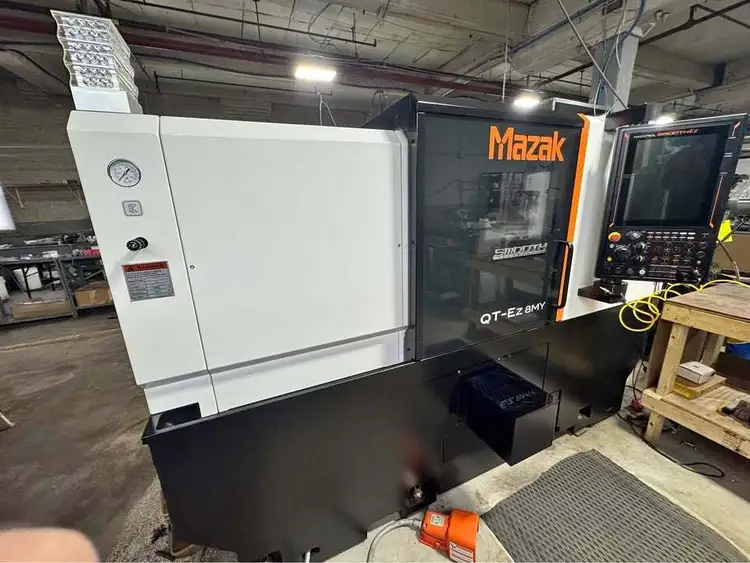

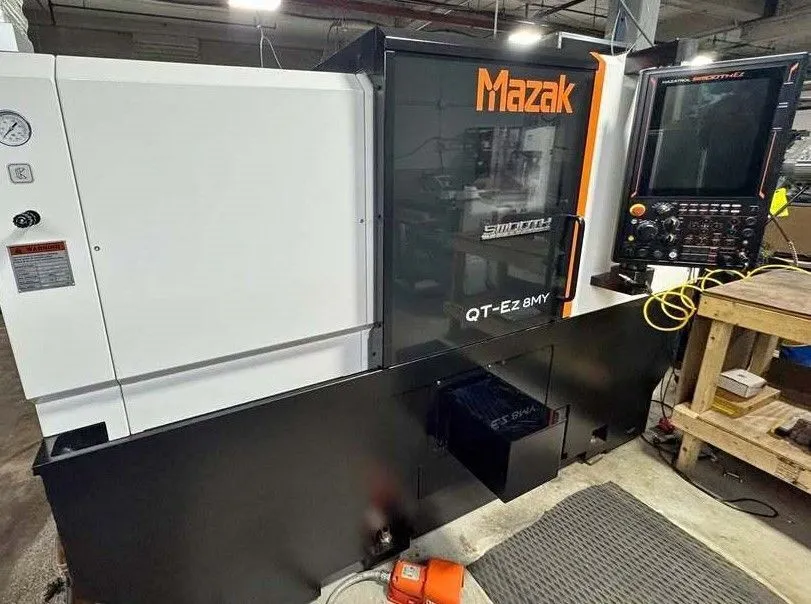

Mazak QT-EZ 8MY CNC Lathe (2021)
Have one to sell?
ConditionUsed
1 available
1300 total hours ! machine, 571 total low load cutting and milling hours, live tool, 213psi thru coolant, Royal 5C 6” collet chuck, 6000 rpm, programmable tail stock, parts catcher, chip conveyor, tool eye, signal tower, engraving, pecking load detection, 2 axial live tools, 2 radial live tools
Mazak QT-EZ 8MY CNC Lathe (2021)
Capacity Maximum Swing in / mm 27.40 / 695
Maximum Machining Diameter in / mm 16.13 / 410
Standard Machining Diameter in / mm 8.35 / 212
Maximum Bar Work Capacity in / mm 2.0 / 51
Maximum Support Weight (Chuck) lbs / kg 440 / 200
Maximum Support Weight (Shaft Work) lbs / kg 1,100 / 500
Maximum Machining Length 500U in / mm 23.47 / 596 mm
Main Spindle Chuck Size in / mm 8 / 203
Maximum Speed of STD Chuck rpm 5,000
Motor Output (30 minute rating) hp / kw 20.0 / 15
Maximum Speed rpm 6,000
Spindle Torque (Max) ft-lbs / N-m 123 / 167
Spindle Nose A2-6
Second Spindle Chuck Size in/mm
Maximum Speed rpm
Motor Output (30 minute rating) hp/kw

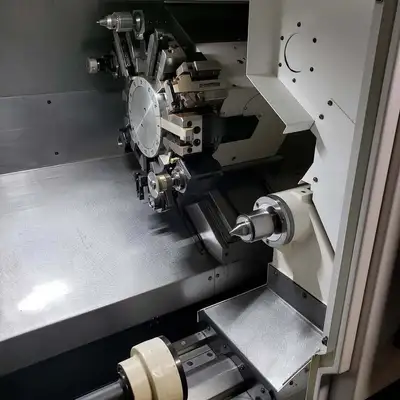

Turret Number of Tools Number 12
Maximum Speed rpm
Motor Output (10 minute rating) hp/kw
Feed Axes Travel (X Axis) in/mm 8.5 / 216.0
Travel (Y Axis) in/mm
Travel (Z Axis) in/mm 24.5 / 622
Travel (W Axis with Steady Rest) in/mm
Dimensions Machine Depth in / mm 75 / 1905
Machine Length in / mm 102.4 / 2,600
Machine Height in / mm 67.9 / 1,725
Machine Weight lbs / kg 11,244 / 5,111
- 213psi thru coolant
- 3 Jaw Chuck

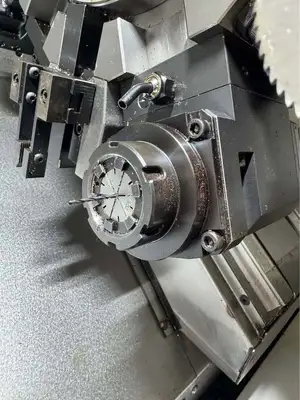

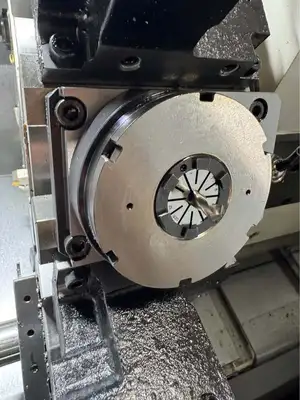

- Royal 5C 6" collet chuck
- programmable tailstock
- Tool Eye Presetter
- Signal Tower
- Engraving
- Pecking load detection

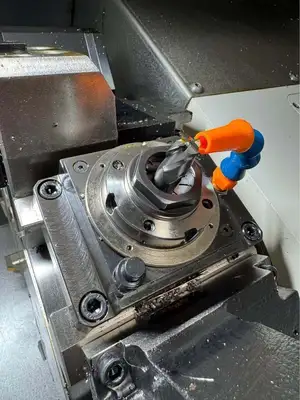

- 2 axial live tools
- 2 radial live tools
Low load cutting and milling, 213psi thru coolant, Royal 5C 6” collet chuck, 6000rpm, programmable tail stock, parts catcher, chip conveyor, tool eye, signal tower, engraving, pecking load detection

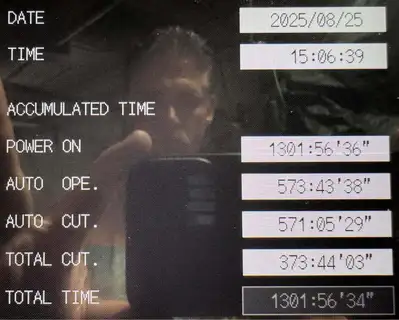

Utilization: 1301 hours
