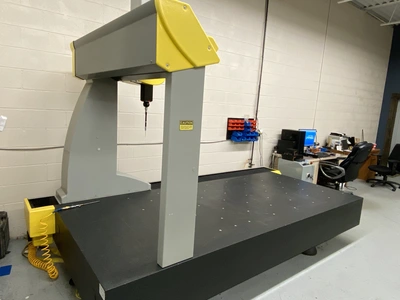

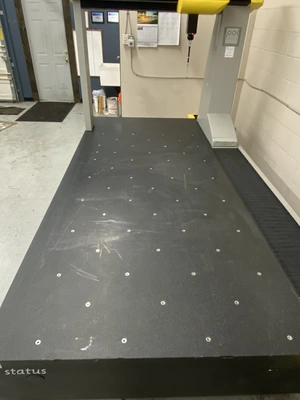

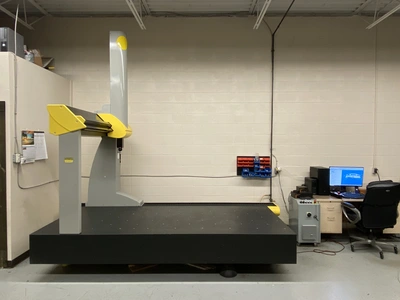

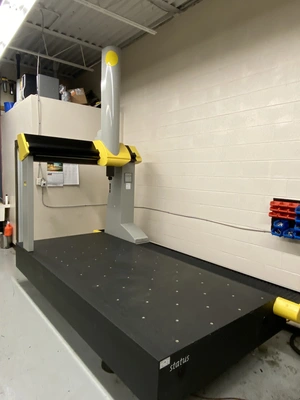

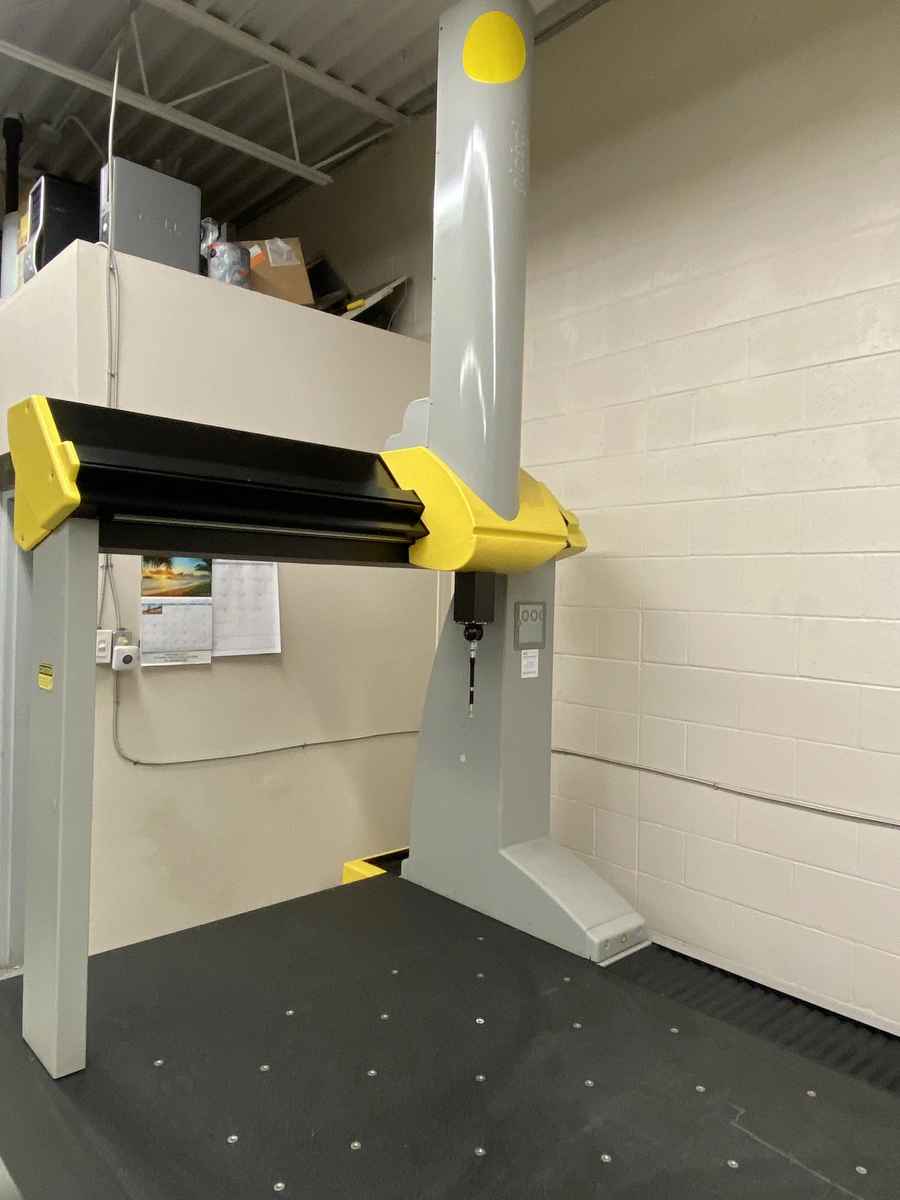

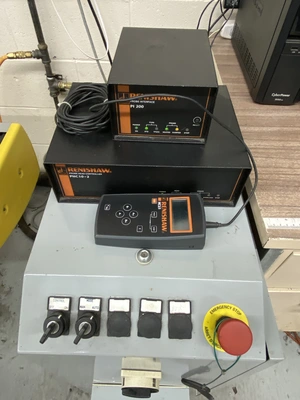

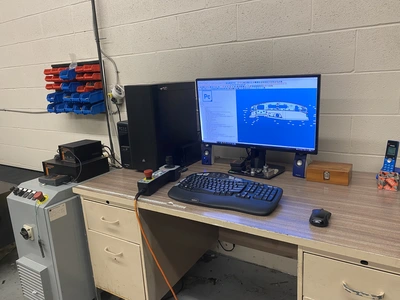

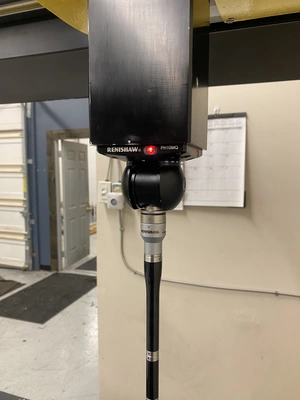

Brown and Sharpe Global Status 12.22.10 CMM Coordinate Measuring Machine (2001)

Coordinate Measuring Machine Specifications
Make: Global Status
Model: 12.22.10
Option: Standard
Component Expression Source Description
Specification Editor (C) Select Calibration Incorporated Page 1
ASME B89.4.10360, ISO/IEC 10360
Pftu 3.6 MFG Maximum probe form error
E0 4.0+1.0L/250 MFG Maximum length error
E150 4.0+1.0L/250 MFG Maximum length error with probe offset
Ts_Max 22.00 C MFG Maximum volume temperature celsius
Ts_Min 18.00 C MFG Minimum volume temperature celsius
Rpt 1.5 EST Maximum sphere position variation
R0 3.0 EST Maximum length variation for E0
VDIVDE_2617
U3 4.0+1.0L/250 MFG Maximum length error in three axis
V3 3.6 EST Maximum probe error in three axis
ASME B89.4.1
Repeat 1.5 MFG Maximum sphere position variation
Volume 11.2/900 MFG Maximum length variation of a ballbar
CMMA
M 4.0+1.0L/250 EST Maximum length measurement error
Repeat 3.0 EST Maximum length variation error
Legend
L Length in mm
Td Temperature deviation from standard reference in Celsius
MFG Specification provided by manufacturer
EST Estimated specification derived from manufacturer specifications
All expression results in um (micrometers) unless otherwise specified
