| size | 48" x 18" | 48" x 18" |
| X Travel | 40" | 1,016 mm |
| Y Travel | 20" | 508 mm |
| Z Travel | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,100 RPM | 8,100 RPM |
| # ATC | 40 | 40 |
| Taper | 40 | 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 48" | 1,219.2 mm |
| # Axis | 3 | 3 |

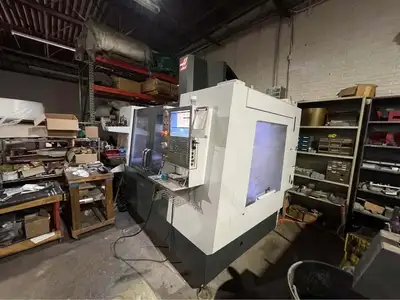

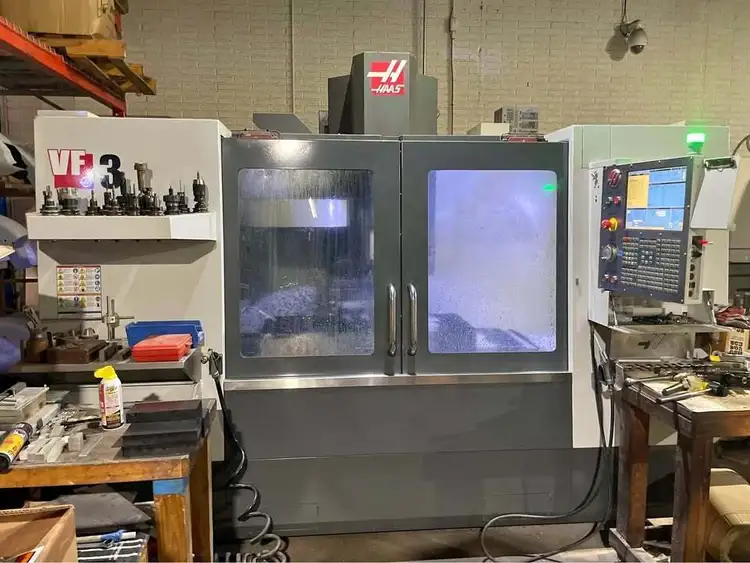

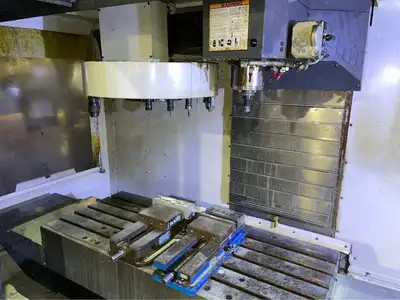

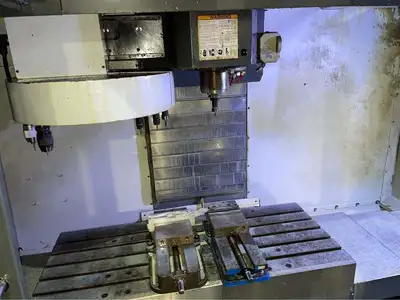

Haas VF-3 Vertical Machining Center (2015)
Table Size 48″ X 18″
Maximum Table Load Capacity 3500 Lbs.
Spindle Nose to Table Top 4″ – 29″
X – Axis Travel 40″
Y – Axis Travel 20″
Z – Axis Travel 25″
Spindle Nose CAT # 40
Spindle Speed 8100 RPM
Main Motor 20 HP
Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM
Cutting Feedrate 650 IPM
Tool Magazine 20 ATC
Maximum Tool Weight 12 LBS
Maximum Tool Diameter 3.5″
Machine Weight 12,500 LBS.
Chip Auger
Rigid Tapping
Programmable Coolant
Year: 2015
Voltage / Phase: 220 / 3
Weight: 11,720lbs
Dimensions: 99" x 137" x 105"
